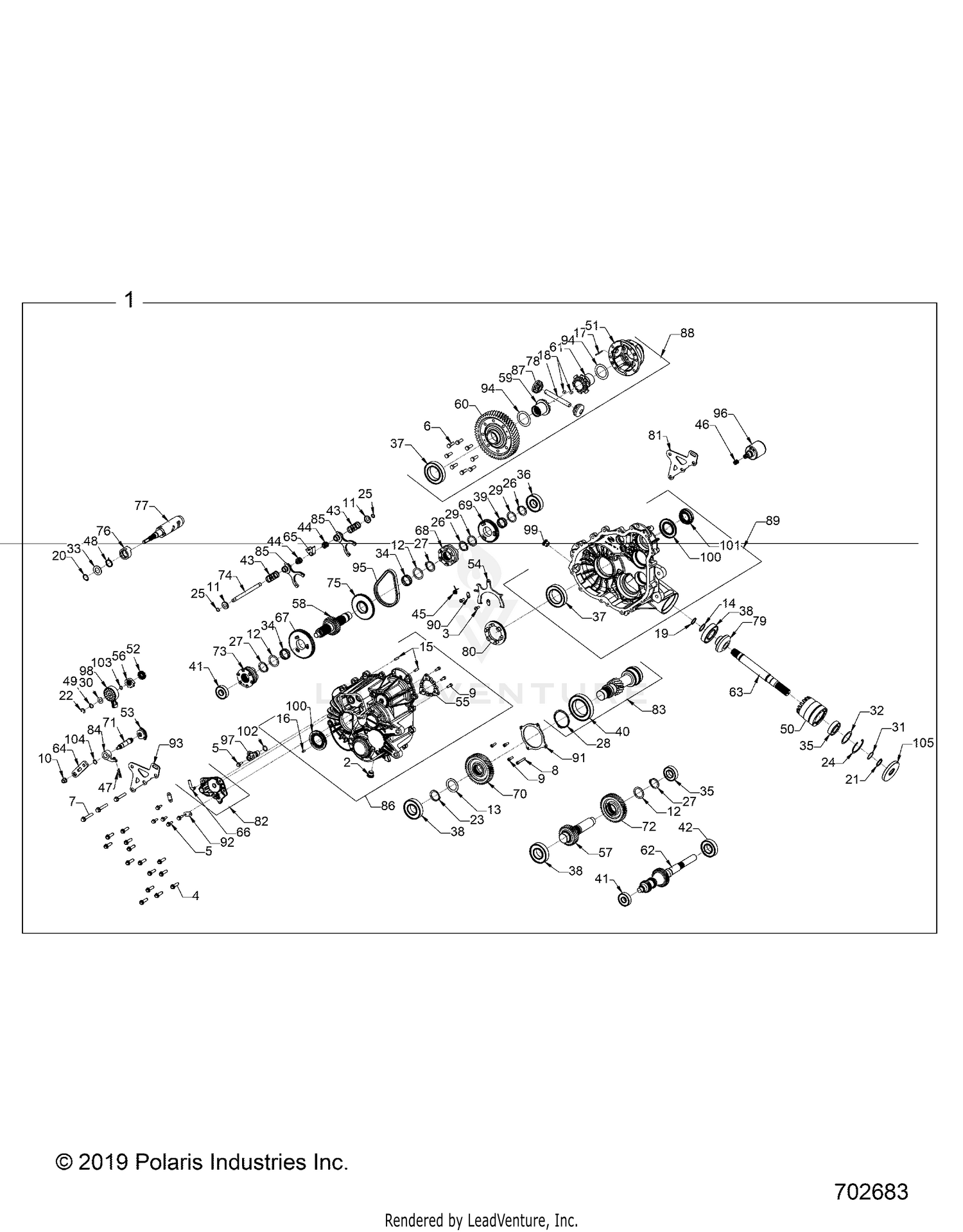

Drive Train, Main Gearcase Internals - R24taa99a1/b1 Tae/a1/b1/ad/bd/am/bm/a9/b9 (702683) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-GEARCASE,RGR 1000
1334287
|
$3,784.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG, M18 X 1.5 MAGNETIC
3234756
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, 6-LOBE, PAN HD M6 X 1 X 16
3234309
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW-HEXFLANGEHEAD,M8X1.25X30
3234898
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, HEX FLANGE HEAD, M6 X 1 X 20
3235206
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, CAP HH M8 X 1.25 X 25
3236169
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, HEX FLANGE M8 X 50
3235207
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40
3235208
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18
3235332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, LOCK HEX FLANGE, NYLON M8 X 1.25
3235210
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-CUP
3234091
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER-32.3X42X1.5(115288)
3235211
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER-35.6X57X1.5(115289)
3235212
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, 22.5 X 30 X 1.5
3236410
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, DOWEL 6 X 20
3234330
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, SPRING, SLOTTED 6 X 12
7043746
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, DOWEL 3 X 40
3236286
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, DOWEL 8 X 10
3236295
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, RETAINING BASIC EXTERNAL
7710434
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING, RETAINING BASIC EXTERNAL
3233834
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RING, RETAINING, SHAFT, DIA. 1.375
3233364
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
RING,RETAINING BASIC,INTERNAL 2.047
3234269
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RING, RETAINING,
3234205
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
RING-RETAIN,EXT,MSR-32(130296)
3235214
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
RING-RETAIN,VSH-237(130298)
3235216
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER,THRUST,0.446 X 0.88 X 0.025
3234642
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHIM, 1.180 OD X 0.995 ID
3234272
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHIM, 2.040 OD X 1.63 ID
3234273
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPACER, 19.4 X 34.0 X 2.0
3235883
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, NEEDLE
3233014
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, BALL, 6205 C3 25X52X15
3233019
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING
3233020
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING,BALL 6207 C3 35X72X17
3234065
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BEARING-NEEDLE,30X35X13-CAGED
3233384
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BEARING, BALL, 6012 C3 60 X 95 X 18
3235218
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BEARING, BALL 6303, 17 X 47 X 14
3234652
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BEARING, BALL 6206RSH2 STD 30 X 62 X 16
3235496
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPRING, COMPRESSION, 0.46 I.D. X 0.73
3234089
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
SPRING, TORSION, RETURN
3234276
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
SPRING,COMPRSSN.54ODX.44IDX.05
3234277
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
SPRING, COMPRESSION 0.36 O.D. X 1.125
3234578
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
SPRING, TORSION
3235885
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
WASHER-SPRING,210393
3235327
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
TUBE, SNORKEL MACHINED
3234278
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
CARRIER, DIFFERENTIAL MACH
3236287
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
GEAR, SECTOR, 16T
3233839
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
GEAR-SECTOR,31T
3233832
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
FORK, PIVOT SHIFT, REAR DIFF
3235455
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
PLATE, PARK, 12 FACE
3235456
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
STAR, DETENT,
3235982
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
SHAFT-IDLER,29T(285803)
3235223
|
$134.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#58
SHAFT-REVERSE,27T(285878)
3235380
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
GEAR, 14T OUTPUT, MACH
3236290
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
GEAR, 53T OUTPUT
3236291
|
$324.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
GEAR, 14T OUTPUT DISCONNECT, MACH
3236289
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
SHAFT, INPUT, HELICAL
3236348
|
$429.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
SHAFT, FRONT OUTPUT
3236438
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
BELLCRANK
3235474
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
COLLAR-SHIFT
3234073
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
TUBE, VENT 90 -1/4 INCH HOSE
3234230
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
GEAR-LOW,67T(352856)
3235232
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#68
ENGAGEMENT DOG,6-FACE(352857)
3235233
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#69
GEAR-53T(352858)
3235234
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
GEAR-46T,STAGE 3(352872)
3235236
|
$134.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#71
SHAFT-SHIFT(352973)
3235238
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
GEAR, 46T, STAGE 2
3235381
|
$164.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#73
SHIFT DOG, PARK/LOW (353357)
3235457
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#74
RAIL-SHIFT SHAFT(353622)
3235542
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
SPROCKET-48T,6-FACE REVERSE
3235755
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
CAM, PARK
3235983
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#77
DRUM, SHIFT MACH,
3235984
|
$344.99 | ||
|
Available to order. Add to View Price |
|||
|
#78
PIN, DIFFERENTIAL
3236292
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#79
GEAR, 13T SNORKEL
3236412
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
DOG, ENGAGEMENT
3236293
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#81
WELDMENT REAR MOUNT BRACKET63
3235399
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#82
SUBASSEMBLY, SECTOR COVER
3235713
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#83
SUBASM.,SHAFT
3235336
|
$469.99 | ||
|
Available to order. Add to View Price |
|||
|
#84
SUBASSEMBLY, PAWL, DETENT, ROLLER
3235452
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#85
SUBASSEMBLY, SHIFT FORK
3235920
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#86
SUBASSEMBLY, RH COVER
3235995
|
$544.99 | ||
|
Available to order. Add to View Price |
|||
|
#87
SUBASSEMBLY, PINION GEAR
3236288
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#88
SUBASSEMBLY, DIFFERENTIAL
3236285
|
$479.99 | ||
|
Available to order. Add to View Price |
|||
|
#89
SUBASSEMBLY, LH CASE
3236437
|
$524.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
RETAINER-FORK
3234934
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#91
COVER-BEARING,CNTR DR.
3235241
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#92
BRACKET, WIRE HARNESS
3235350
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#93
BRACKET, MOUNT, REAR
3235398
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#94
WASHER, THRUST, 40.83 X 56.25 X 0.38
3236294
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#95
CHAIN,SIL 101,.25P X .40W X58L
3234737
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#96
SOLENOID
3235478
|
$364.99 | ||
|
Available to order. Add to View Price |
|||
|
#97
SENSOR-SPEED,TRANS
4013908
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#98
SWITCH, ROTARY , 2 PIN RESISTIVE
7662299
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
PLUG, M18 X 1.5
3234755
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
SEAL, TRIPLE LIP, VITON HELIX 40X70X7
3235052
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#101
SEAL, TRIPLE LIP, VITON HELIX 30 X 47
3235495
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#102
O-RING
3234302
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#103
O-RING, -012 VITON
3233836
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#104
O-RING, -014 VITON
3233828
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#105
SEAL, TRIPLE LIP VITON 25 X 80 X 10
3234113
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
