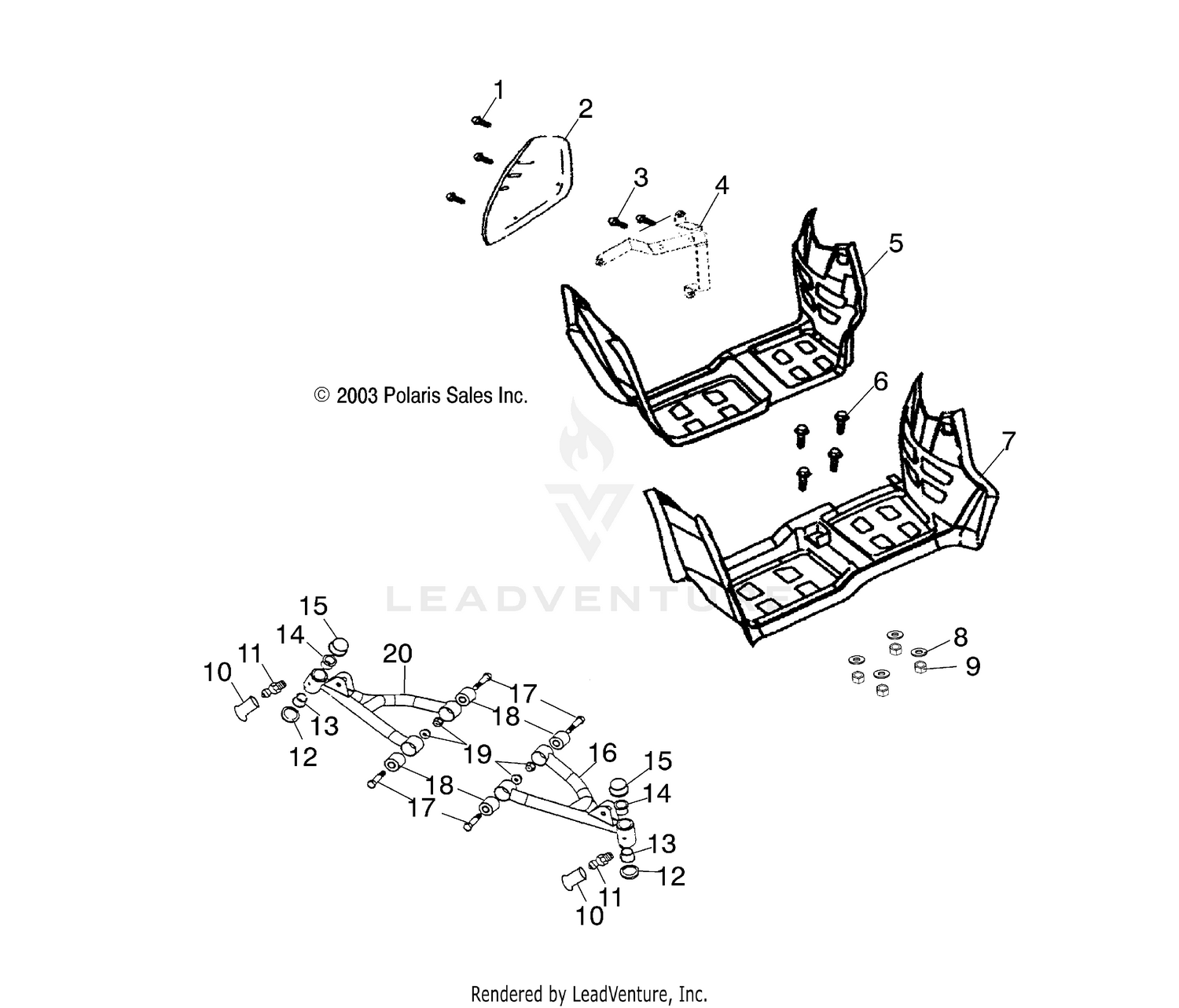

Swing Arm/footrest - A04ka09ca/cb (4991329132b03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Bolt, Hex
0450701
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Shield, Heat
0450611
|
|||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Bolt, Hex
0450298
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Bracket, Heat Shield
0451119
|
|||
|
Available to order. Add to View Price |
|||
|
#5
Footwell, RH
0451117
|
|||
|
Unavailable |
|||
|
#6
BOLT
0450340
Superseded by 0452215
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Footwell, LH
0451118
Superseded by 0453193
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Washer, Plain
0450879
|
|||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Nut, Lock
0450808
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Cap, Rubber
0450321
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Valve, Grease
0450320
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Rubber, Dustproof
0450317
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Seat, Grease Contain
0450314
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Seat, Grease Contain
0450313
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Cover
0450316
Superseded by 0451811
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Arm, Suspension, Red, LH
0451004
|
|||
|
Available to order. Add to View Price |
|||
|
#16
Arm, Suspension, LH
0451155
Superseded by 0451705
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bolt, Hex, Washer Face
0450820
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Bushing
0450288
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Nut, Flange
0450249
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Arm, Suspension, RH
0451003
Superseded by 0451706
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Arm, Suspension, RH
0451156
Superseded by 0451706
|
$102.99 | ||
|
Unavailable |
|||
