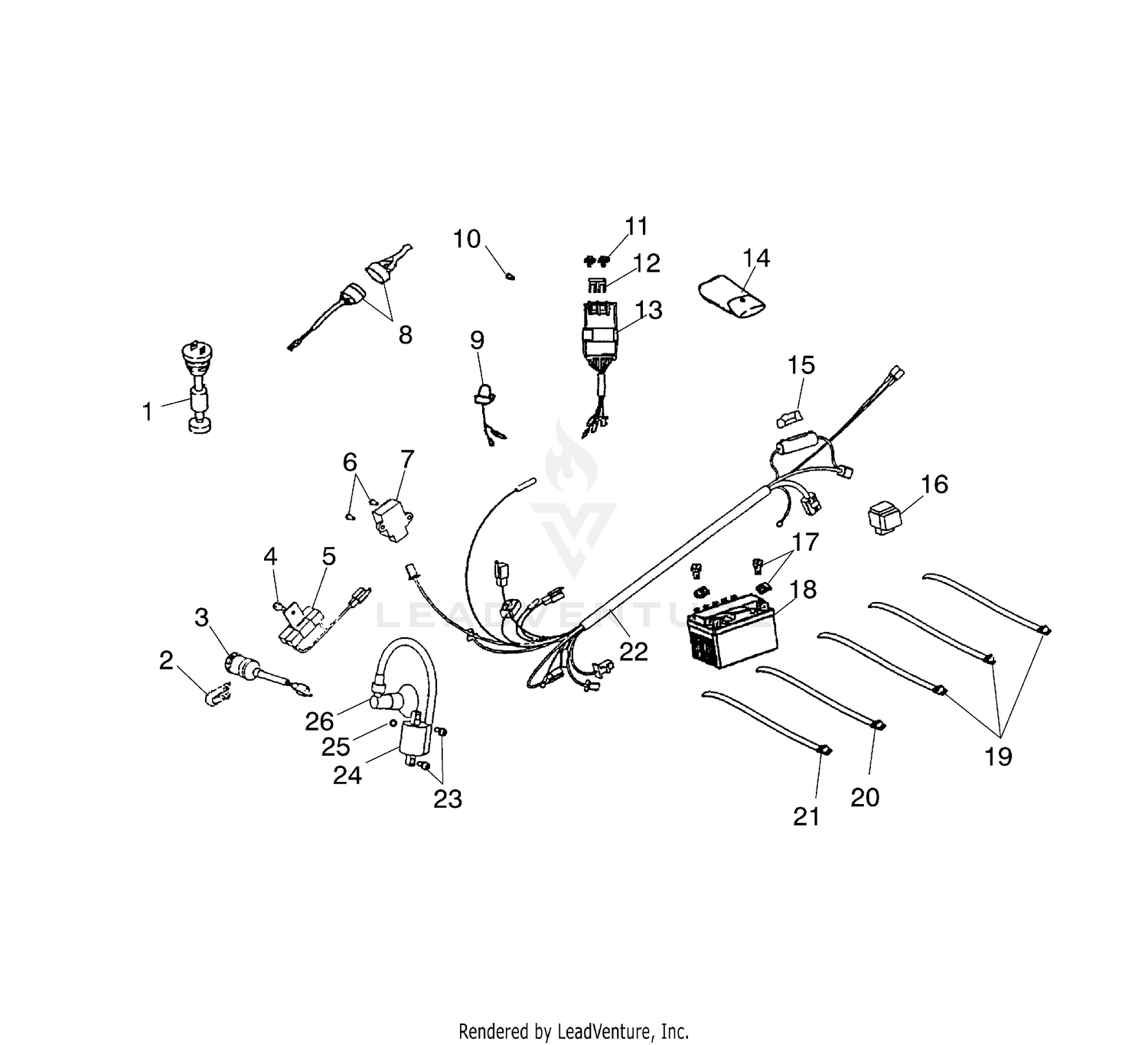

Electrical Parts - A03ka09ca/cb (4983138313c03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Gauge, Oil Level
0450558
Superseded by 0453055
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Clip, Main Switch
0450886
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Asm., Switch, Main
0450549
Superseded by 0453417
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bolt, Washer Face, Hex
0450701
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Asm., Resistor
0453315
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bolt, Pan, Phillips
0450057
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
Regulator, Voltage
0450553
Superseded by 0452061
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH,SAFETY,110
0451044
Superseded by 0455201
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Lamp, Warning, Oil
0451146
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
0450309
Superseded by 0454011
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Screw, Fixing
0451020
|
|||
|
Unavailable |
|||
|
#12
Jumper
0451019
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Asm., CDI Unit
0451018
|
$319.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Bag, Tool
0450563
|
$19.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUSE,7.5AMP
0450842
Superseded by 2410274
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Asm., Starter Relay
0450555
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bolt and Nut, Battery
0450888
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Battery
4011181
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Strap
0450559
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Strap
0450721
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Strap
0450742
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Asm., Main Wire
0451042
|
|||
|
Unavailable |
|||
|
#23
Bolt, Hex
0450556
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Asm., Ignition Coil
0450753
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Washer, Star
0451018
|
$319.99 | ||
|
Unavailable |
|||
|
#26
Cap, Spark Plug
0451162
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
