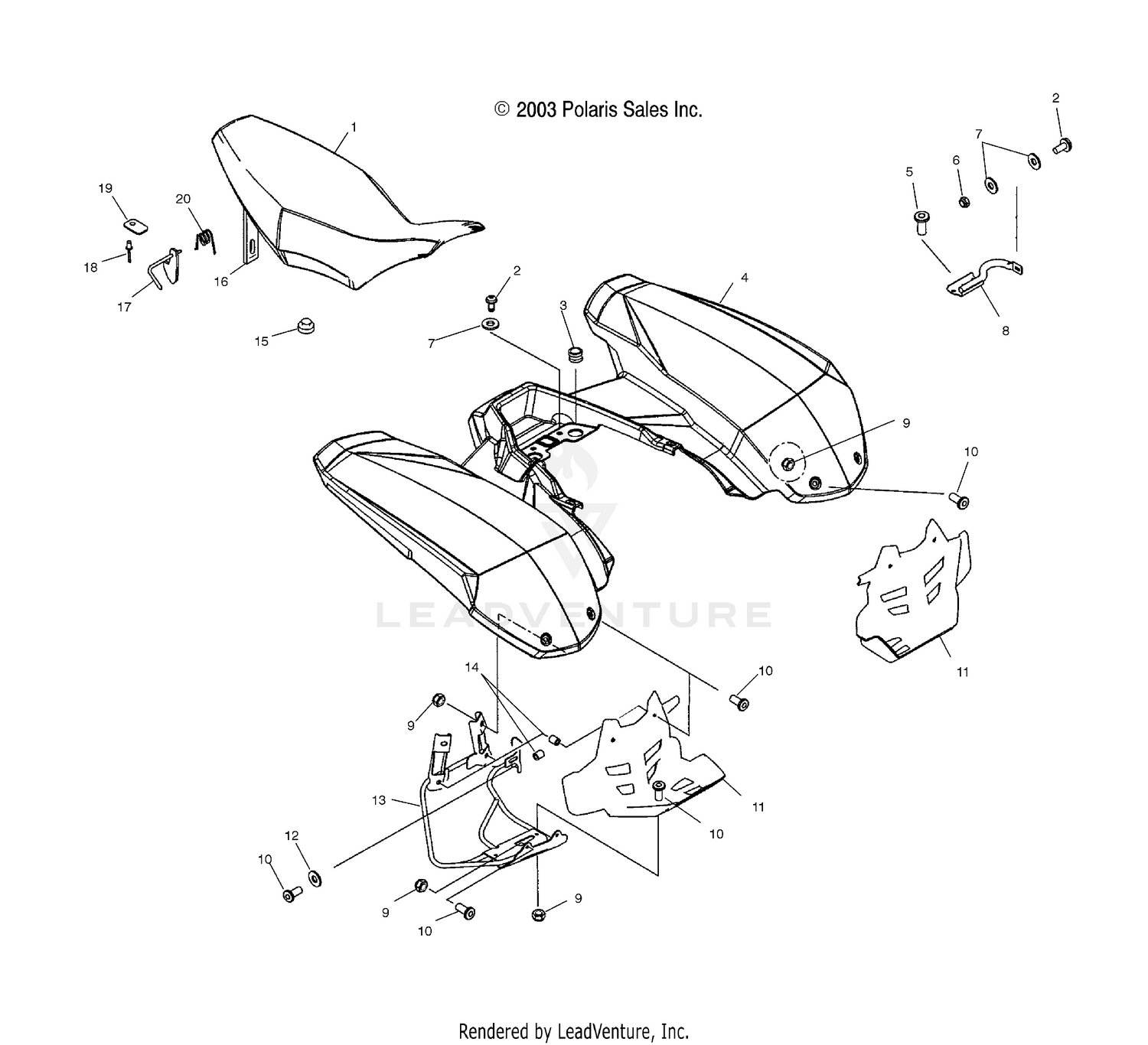

Rear Cab And Seat - A04gj50aa/ab/ac/ad (4986168616a04) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Asm., Seat
2683450-070
Superseded by 2683687-070
|
$489.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
ASM-COVER, VF,BLK
2683451-070
Superseded by 2684051
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Asm., Seat
2683474
|
$394.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Asm., Cover
2683475
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Asm., Seat
2683586
Superseded by 2683687-070
|
$489.99 | ||
|
Unavailable |
|||
|
#1
Cover, Seat
2683585
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Asm., Seat
2632490
Superseded by 2683687-070
|
$489.99 | ||
|
Unavailable |
|||
|
#1
ASM-COVER, VF,BLK
2632489
Superseded by 2684051
|
$189.99 | ||
|
Unavailable |
|||
|
#2
Screw
7518196
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
GROMMET
5411042
Superseded by 5412507
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cab, Rear, Silver Venom Metallic
5435231-473
|
|||
|
Available to order. Add to View Price |
|||
|
#4
Cab, Rear, Black Metallic
5435231-177
|
$419.99 | ||
|
Unavailable |
|||
|
#4
Cab, Rear, Med Blue Metallic
5435598-469
|
$514.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cab, Rear, Blaze Red
5435231-288
|
|||
|
Available to order. Add to View Price |
|||
|
#5
Screw
7515199
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Nut, Nylok
7541925
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Washer
7555792
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Support, Rear Cab, LH, Silver
1014438-385
|
|||
|
Available to order. Add to View Price |
|||
|
#8
Support, Rear Cab, RH, Silver
1014439-385
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Nut, Nylok, Flange
7542153
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw
7512297
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Pocket, Heel, LH, Black
5434432-070
|
$25.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
Pocket, Heel, RH, Black
5434433-070
|
|||
|
Available to order. Add to View Price |
|||
|
#12
Washer, Spring Lock
7552801
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Support, Heel Pocket, LH, Black
1014371-067
|
|||
|
Unavailable |
|||
|
#13
Support, Heel Pocket, RH, Black
1014372-067
|
|||
|
Unavailable |
|||
|
#14
Nutsert
7547069
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUMPER-RUBBER
5412067
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Strap, Hood Latch
5431501
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Latch, Seat
1013941
|
$52.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Rivet
7621403
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Bracket, Lever Retainer
5211033
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Spring, Latch, Light
7041607
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
