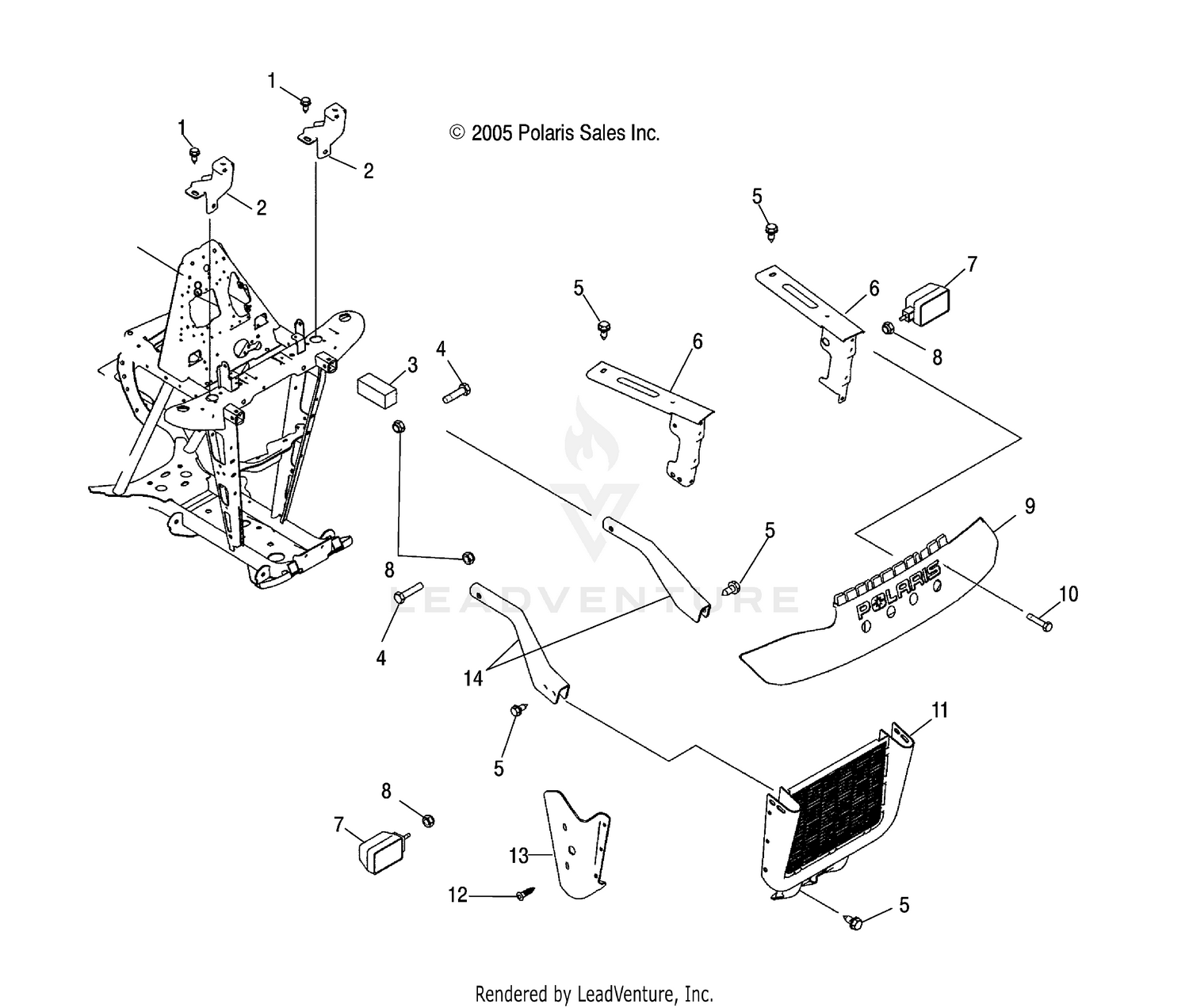

Rack, Front And Bumper Mounting - A06cd32aa/ab/ac (4999201699920169a07) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Bolt
7512232
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Support, Front Rack, Black, LH
1013744-067
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Support, Front Rack, Black, RH
1013746-067
|
$94.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Plug, Frame
5810467
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bolt
7518341
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Screw
7515399
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Mount, Rack, Black, LH
1014099-067
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Mount, Rack, Black, RH
1014101-067
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Asm., Headlight, Side Mount, LH
2431011
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Asm., Headlight, Side Mount, RH
2431012
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Bulb, Headlamp, 30W
4030061
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-5/16-18 HX FLG NL-Y
7542343
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bumper, Black
5432155-070
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Bolt
7517977
|
|||
|
Available to order. Add to View Price |
|||
|
#11
Guard, Brush, Black
1013772-067
|
|||
|
Available to order. Add to View Price |
|||
|
#12
Rivet
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Shield, Radiator Side, LH
5433923
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Shield, Radiator Side, RH
5433924
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Extension, Frame, Black, LH
5244729-067
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Extension, Frame, Black, RH
5244730-067
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
