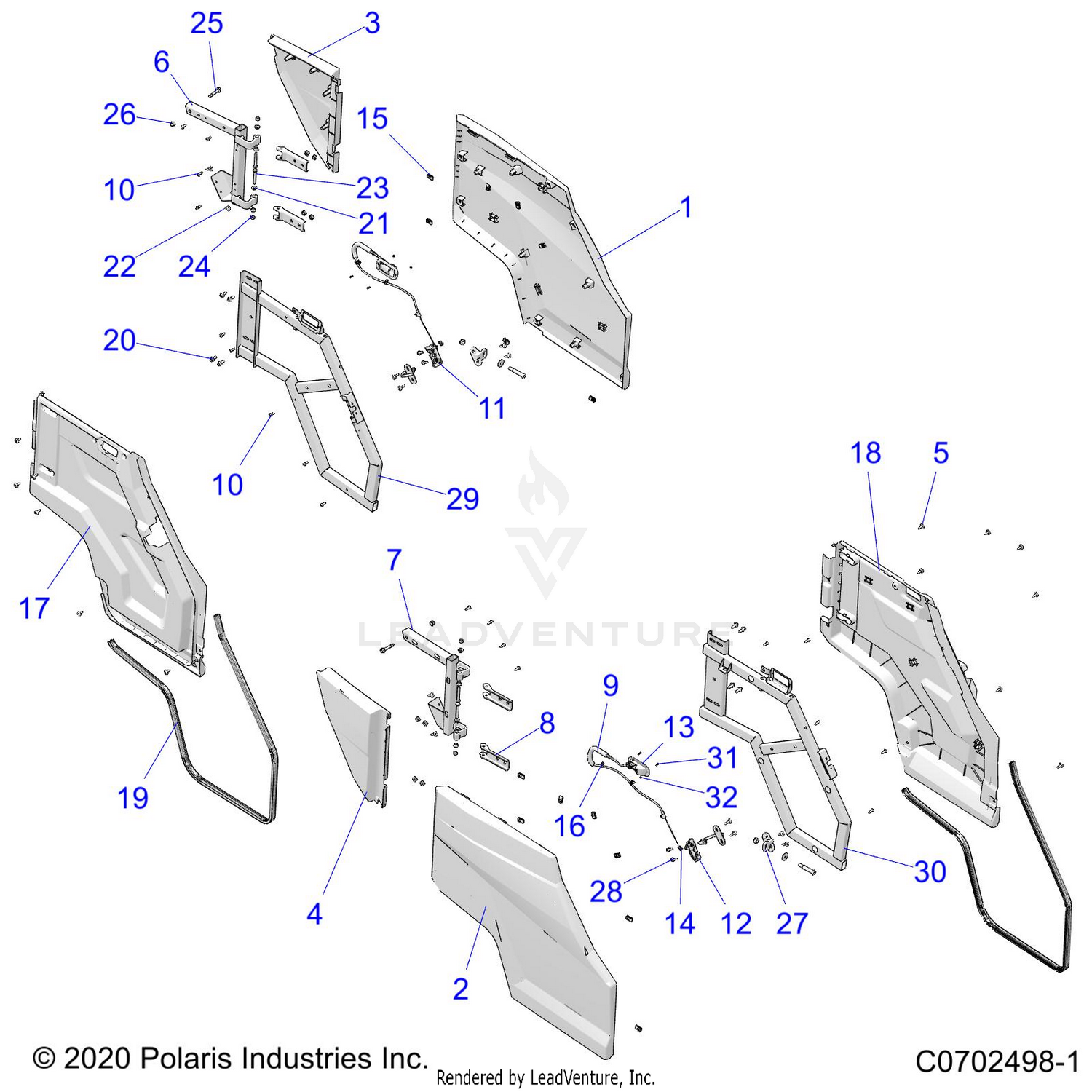

Body, Doors, Rear - G23gmk99a/99b (c0702498-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PNL-DR,OTR,RR,PNT,LH,AV.GRAY
5454659-453
|
$764.99 | ||
|
Unavailable |
|||
|
#1
PNL-DR,OTR,RR,PNT,LH,BLK CRSTL
5454659-677
|
$764.99 | ||
|
Unavailable |
|||
|
#2
PNL-DR,OTR,RR,PNT,RH,AV.GRAY
5454662-453
|
$764.99 | ||
|
Unavailable |
|||
|
#2
PNL-DR,OTR,RR,PNT,RH,BLK CRSTL
5454662-677
|
$764.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CVR-BLSTR BAR,PNT,LH,AV.GRAY
5452953-453
|
$194.99 | ||
|
Unavailable |
|||
|
#3
CVR-BLSTR BAR,PNT,LH,BLK CRSTL
5452953-677
|
$179.99 | ||
|
Unavailable |
|||
|
#4
CVR-BLSTR BAR,PNT,RH,AV.GRAY
5452954-453
|
$194.99 | ||
|
Unavailable |
|||
|
#4
CVR-BLSTR BAR,PNT,RH,BLK CRSTL
5452954-677
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW-TXTH-M6X1.0X20 T40 ZPB
7519112
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WELD-BOLSTER,REAR,LH,BLK
1022761-458
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WELD-BOLSTER,REAR,RH,BLK
1022762-458
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRKT-DOOR REAR HINGE,BLK
5263232-329
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE-ADJUSTABLE REAR DOOR
7083043
|
$59.99 | ||
|
Unavailable |
|||
|
#10
SCR-TX TRUSS-#14X3/4, HI/LO ZBK
7519045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ASM-LATCH,RTRY,2 STAGE,LH
7082459
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ASM-LATCH,RTRY,2 STAGE,RH
7082460
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ASM-HANDLE-DOOR,REAR
7082387
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP-DOOR LATCH
5454637
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP-U SPEED NUT
7081305
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP-CABLE
5455529
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PANEL-DOOR,INNER,REAR,LH,BLK
5454348-070
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PANEL-DOOR,INNER,REAR,RH,BLK
5454349-070
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL-DOOR,REAR
5510932
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCR-HXFL-M8X1.25X20 10.9 ZPB
7517838
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSHING, DOOR, PIVOT
5450592
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCR-HH-M8X1.25X55 8.8 ZOD
7519781
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT-HEX-M8X1.25 8 ZOD NYL
7547480
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCR-HXFL-M8X1.25X50 8.8 ZODP30
7519077
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WELD-STRIKER,REAR,BLK
1023631-458
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW-HXFL-M6X1.0X20 8.8 ZOD NYL
7518613
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WELD-DOOR FRAME,REAR,LH,BLK
1023534-458
|
$334.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WELD-DOOR FRAME,REAR,RH,BLK
1023535-458
|
$334.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCR-TXFH-M3X0.5X12 8.8 ZPB
7520905
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT-HEX-M3X0.5 8 ZY3
7547500
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
