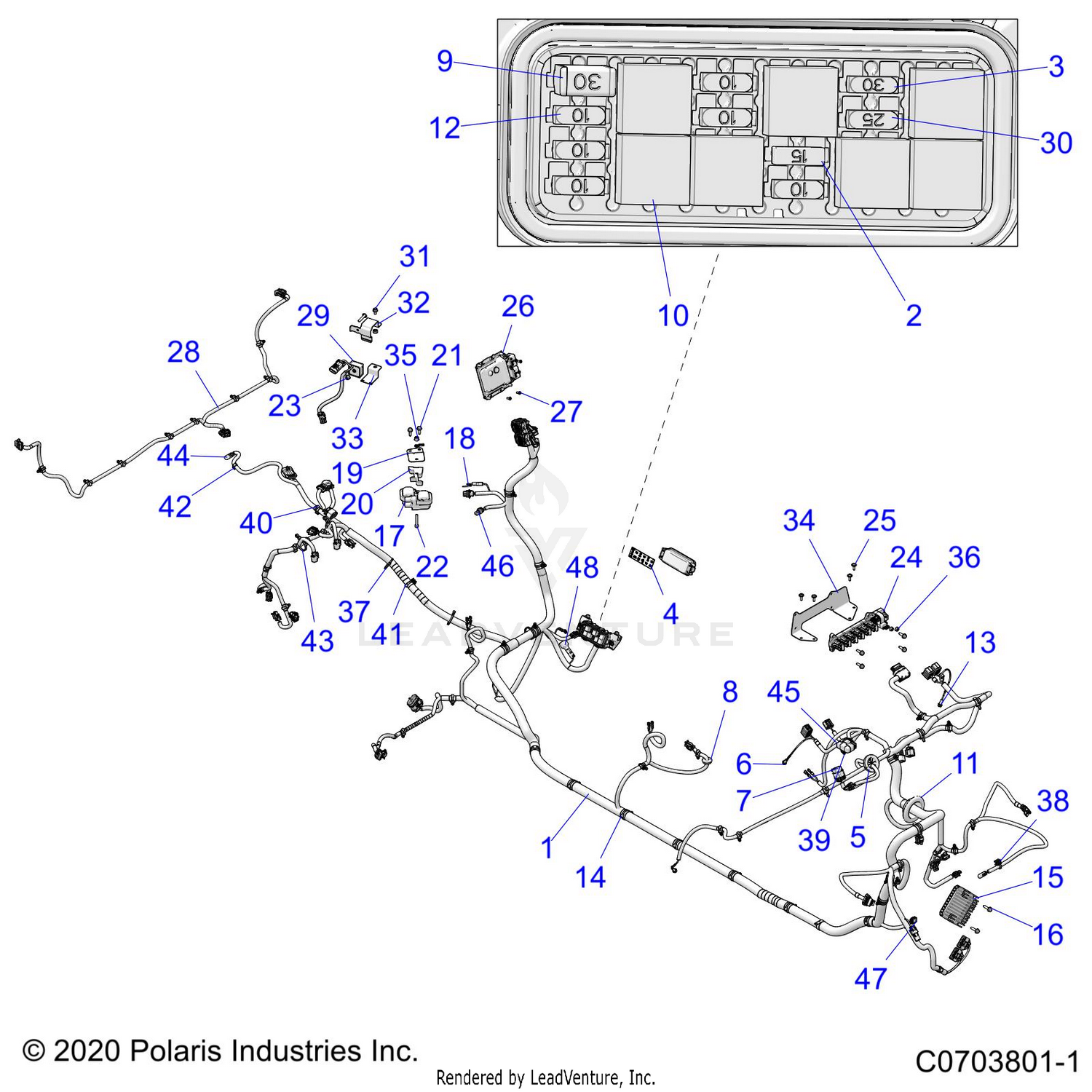

Electrical, Wire Harness - G21g4e99nw (c0703801-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-CHASSIS,CREW
2414815
|
$1,594.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE-15AMP,MINI BLADE
2410280
Superseded by 4010859
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE-MAIN,30 AMP
2434015
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
LABEL, FUSE BOX
7185142
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET, ELECTRICAL, CAB
5414440
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP - ROUTING, DIN BOX
7082020
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GROMMET - USB, 3 MM, 22 MM DIA
5415308
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BREAKER, CIRCUIT, 30 AMP, MINI
4013894
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET - 65 MM, BLK
5813954
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
LED - PANEL MNT, 12V, BLUE
2413217
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
REGULATOR-3PH,50A,SERIES,HISPD
4016868
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCR-TFHFL-M6X1.0X25,ZOD
7519342
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Kit, Ignition Coil
4010425
Superseded by 2876049
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
JUMPER, COIL GROUND
4014422
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRKT-COIL MOUNT
5260553
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER-COIL MOUNT
5436577
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCR-M6X1.0X40,HX/SOC/CP-B
7518780
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BLOCK-TERMINAL,3 POST,TALL
4016007
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCR-10-24X3/4 PH/TX/TRI-SEMS Y
7518196
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
ECM-HARD,ME17,2CYL,250K
4014125
|
$749.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCR-#10X1/2-HI/LO-PN-T25, TRX-M
7519091
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HARNESS-BOX
2413051
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
RELAY, SOLID STATE, 9 AMP, LONG, LD
4012829
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
FUSE-25A,MINI BLADE
4011653
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW-HXFL-M6X1.0X12 8.8 ZPB
7517704
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BRKT-RELAY,INNER MOUNT,BLK
5267577-458
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BRKT-RELAY,OUTER MOUNT,BLK
5267578-458
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BRKT-MOUNT,PULSE,BLK
5266257-458
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
NUT-HXFLGHD, M6, SERRATED
7547270
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
CLIP-EDGE, 3-6MM THICKNESS
7082404
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP-FIR,HOLE6.35MM
7082134
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
CABLE-TIE,DIA2.5-34MM,FIR-TREE
7082003
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP, EDGE, SIDE, W/STRAP
7081876
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
CABLE-TIE,7-46MM,DUAL-LOOP
7081033
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
CAP - VINYL, 125X375, BLACK
5438230
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
CAP-EVAP CONNECTOR
4018655
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
CAP EVAP CONNECTOR
4018066
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
CONNECTOR-CAP, WINCH SWITCH
4014890
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
DIODE - 6 AMP, 1/4, 3/16 TERM
2410000
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
