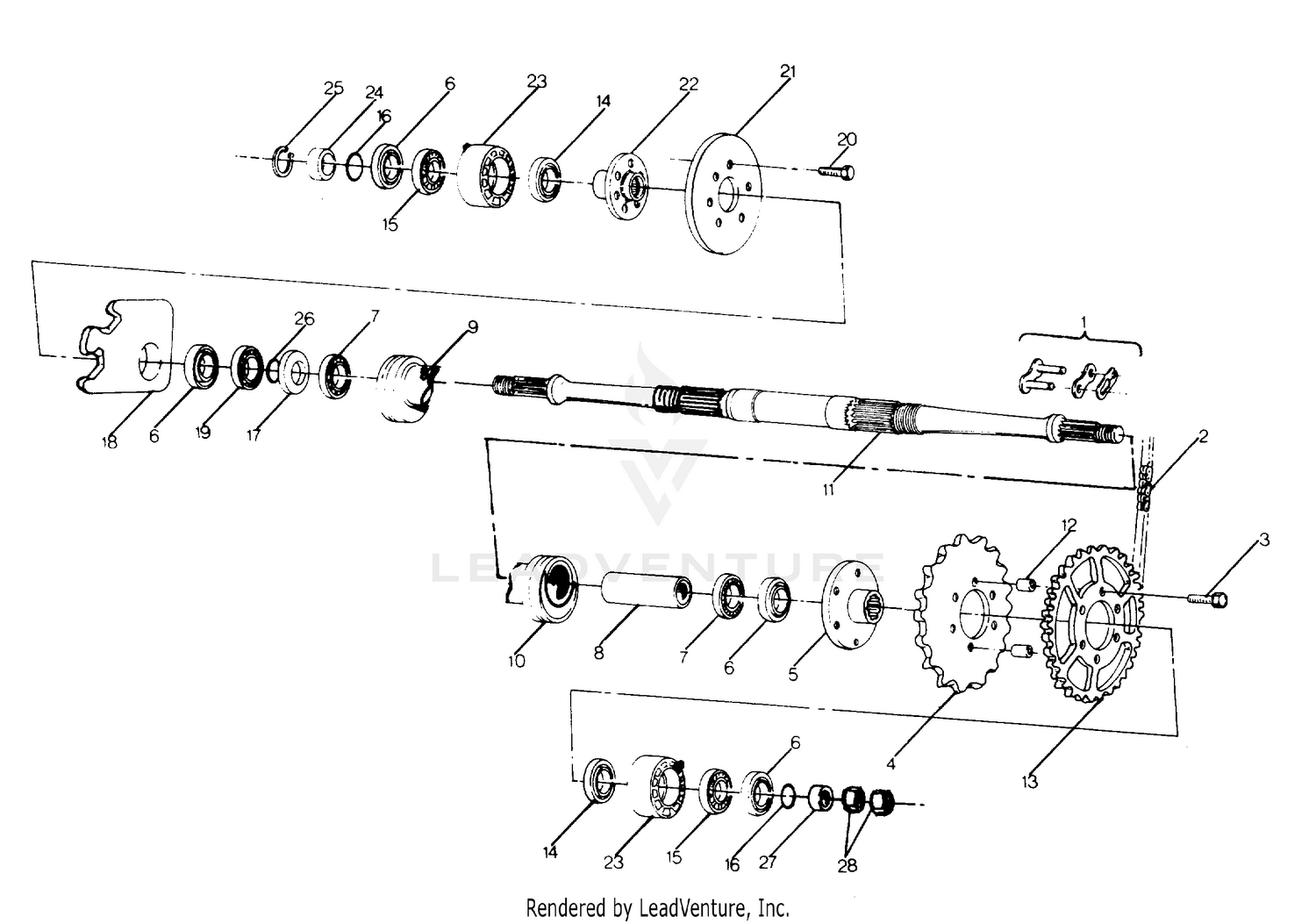

Middle Drive Assembly Big Boss 4x6 (4919801980025a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CONNECTOR LINK
3225024
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN,DRIVE,108P
3224045
|
|||
|
Unavailable |
|||
|
#3
BOLT(10)
7515495
|
|||
|
Unavailable |
|||
|
#4
SPROCKET, 42T Substituted by 3222070
3223009
|
|||
|
Unavailable |
|||
|
#5
HUB, SPROCKET Substituted by 1380025-067
1380025
|
|||
|
Unavailable |
|||
|
#6
SEAL, REAR AXLE
3610013
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, BALL
3515501
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NOT AVAILABLE
5010204
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#9
FITTING,LUBE.W/BALL CK.(10)
7080306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
HOUSING, AXLE
5130663
|
$97.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
AXLE
5020533
|
|||
|
Unavailable |
|||
|
#12
SPACER
5332935
|
|||
|
Unavailable |
|||
|
#13
SPROCKET, 30T
3222047
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL
3610024
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
3514807
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O RING
5410541
|
|||
|
Unavailable |
|||
|
#17
SPACER
5020531
|
|||
|
Unavailable |
|||
|
#18
MOUNT,BRAKE CAL.
5130704
Superseded by 5130944
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
3515502
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT(10)
7515488
|
|||
|
Available to order. Add to View Price |
|||
|
#21
DISC,BRAKE
5211297
Superseded by 5242935
|
$109.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
HUB, SPROCKET Substituted by 1910041-067
1910041
|
|||
|
Unavailable |
|||
|
#23
HOUSING,SWING ARM
5130696
Superseded by 5130945
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER
5020530
|
|||
|
Unavailable |
|||
|
#25
RING, SNAP(10)
7710414
|
|||
|
Unavailable |
|||
|
#26
O RING
5410537
|
|||
|
Unavailable |
|||
|
#27
SPACER
5020532
|
|||
|
Unavailable |
|||
|
#28
NUT, JAM
7543601
|
|||
|
Unavailable |
|||
