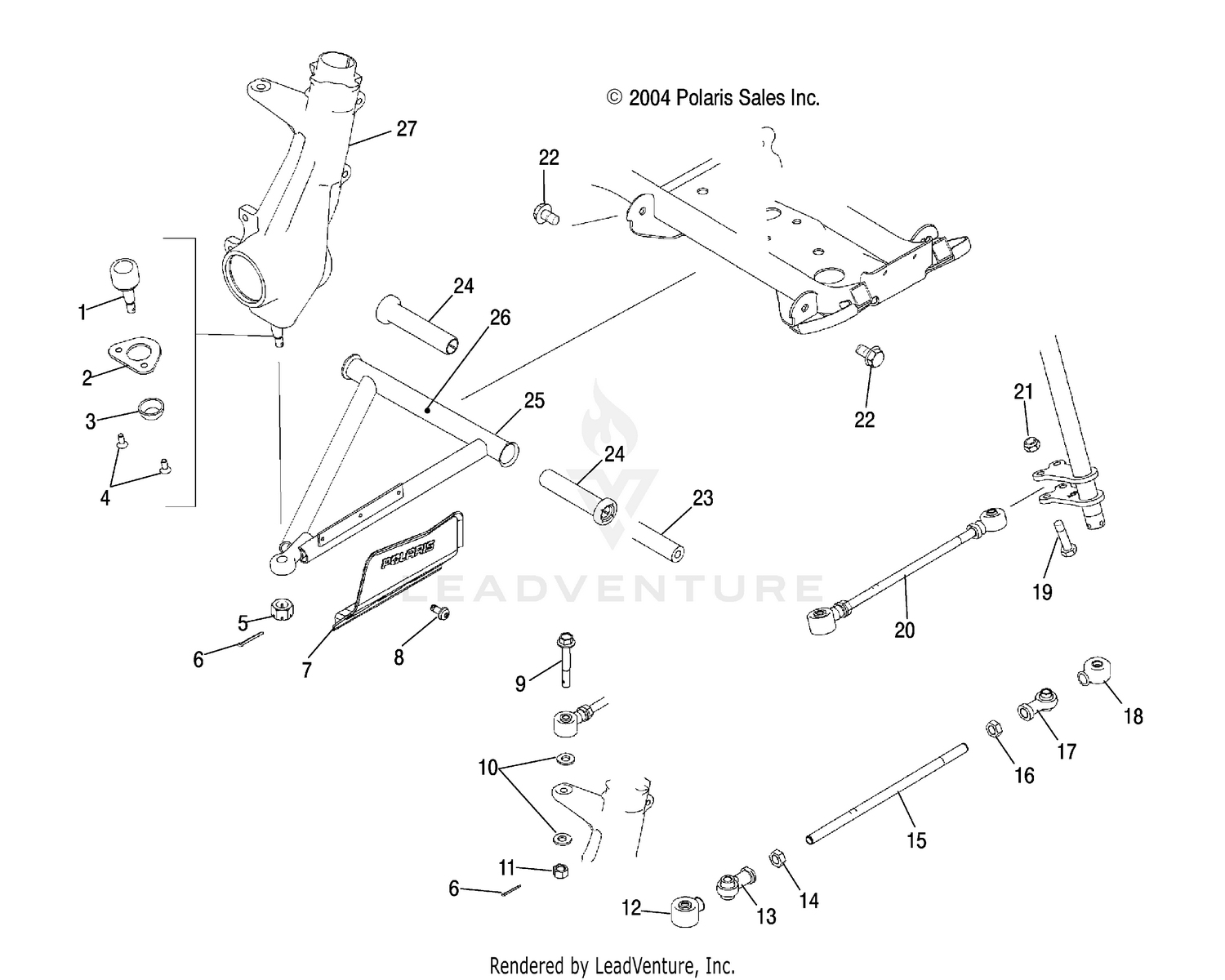

A-arm/strut Mounting - A05jd32aa (4995169516b10) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BALL-JOINT,GREASELESS,STRUT
7080927
Superseded by 7061158
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET-BALL JOINT
5211121
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT-BALLJOINT,GREASELESS,STRT
5410548
Superseded by 5412658
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
NUT-3/8-24 HX CA GR5-Y
7542438
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Pin, Cotter
7661203
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Shield, CV Front, Black, LH
5435028-070
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Shield, CV Front, Black, RH
5435029-070
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Screw
7512084
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Bolt
7517909
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Washer
7556099
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Nut, Lock
7547177
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOOT, SEAL, ROD END
5411920
Superseded by 5412929
|
$13.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
ROD, END
7061054
Superseded by 7061138
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Nut, Jam, LH
7547028
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Rod, Tie
5020926
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Nut, Jam
7542711
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, END
7061034
Superseded by 7061139
|
$74.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOOT, SEAL, ROD END
5411291
Superseded by 5412928
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Screw
7515415
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Asm., Tie Rod
1820805
Superseded by 1822852
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Nut, Nylok
7542439
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Bolt, Flange
7518364
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Shaft, A-Arm
5133806
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Bushing, A-Arm, Long
5434551
Superseded by 5436973
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
Kit, A-Frame, LH
2202280
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Kit, A-Frame, RH
2202281
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Fitting, Lub
7080433
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
ASM., HUBSTRUT
-------
|
|||
|
Unavailable |
|||
