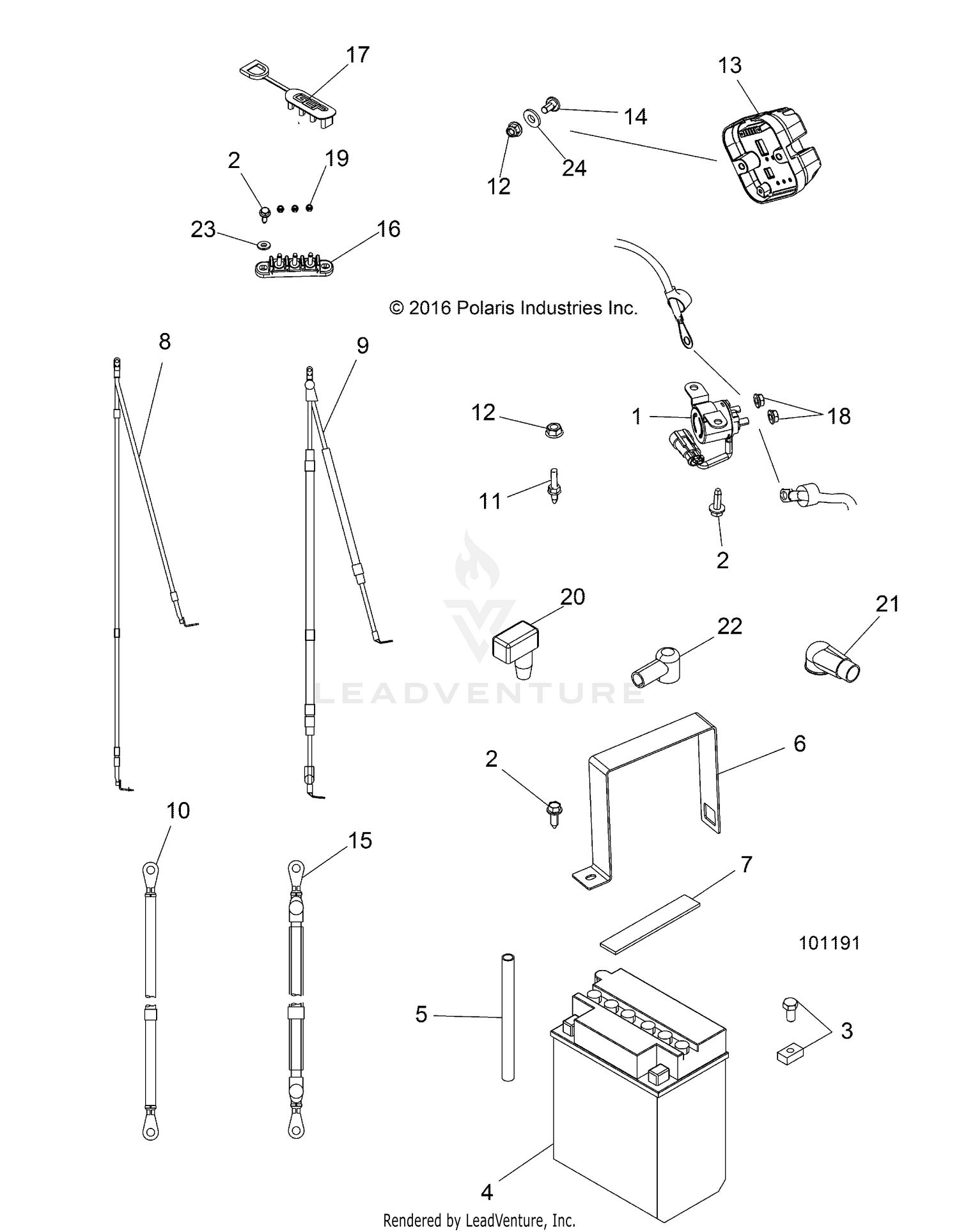

Electrical, Battery - A17dae57am (101191) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SOLENOID, STARTER
4012001
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
KIT, BATTERY BOLT
2202213
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BATTERY, 14 AH
4140006
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BATTERY-SEALED,32 AH,500 CCA
4015955
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE-BATTERY VENT,305MM
5435030
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRKT-BATTERY STRAP
5264056
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PAD, RACK MOUNT
5810455
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CABLE-BATT,6GA,BK,BAT/CHASS/TB
4015545
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE-BATT,6GA,RD,BATT/SOL/TB
4015546
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE, BATTERY, FLAT
4014423-725
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
STUD
7519333
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
REGULATOR-3PH,50A,SERIES,HISPD
4014856
Superseded by 4016868
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
REGULATOR-3PH,50A,SERIES,HISPD
4016868
|
$164.99 | ||
|
Unavailable |
|||
|
#14
M6X1.0X30 CARRIAGE CL8.8 ZC CL
7520559
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE, BATTERY, FLAT
4014424-830
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BLOCK-TERMINAL,3 POST,TALL
4015778
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, TERMINAL BLOCK, 3 POST
4014659
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT-6MM X 1 NYLOK-Z
7546703
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT
7547341
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOOT, BATTERY, RED
4014836
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOOT, BATTERY, RED
4014994
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
INSULATOR-CABLE
5410346
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
RETAINER-BOLT,1/4-20
7670154
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
