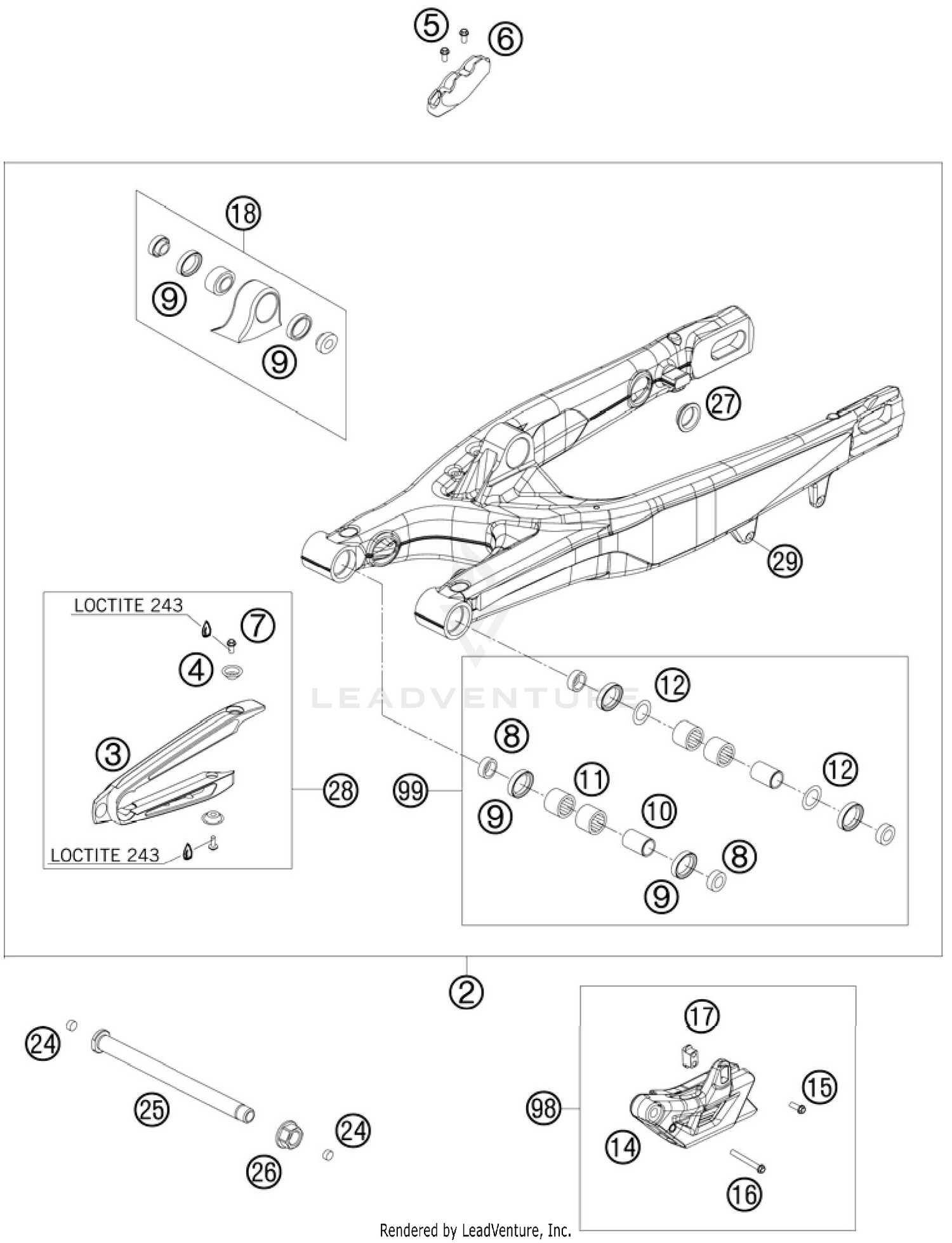

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
SWINGARM CPL. '11
78004030244
|
$973.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN SLIDING PROTECTION
77304066000
|
$25.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Chain slider bushing
77304066050
Superseded by 77304066150
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
EJOT SPIRAL SCREW SF M5X10-K
0009050103
Superseded by 0009050106
|
$2.99 | ||
|
Unavailable |
|||
|
#6
BRAKE HOSE GUIDE LOWER 07
77313047000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BUCKET F. SHAFT SEAL RING 03
54804034000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
radial shaft seal 25x32x7
0760253270
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING SLEEVE 17X22X38,7 03
59404032000
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLEBEAR HK2212V 22/28/12 MB
59004031200
Superseded by 0618222812
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
stop disc 22.2/31.7/1
54603036000
Superseded by 63533032000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
CHAIN GUIDE CPL.
78004070100
|
$51.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPECIAL SCREW M6X19 WS=8 10.9
59009062019
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HH COLLAR SCREW M6X45 TX30
0025060456
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
INSERTION NUT F. CHAIN GUIDE
77304070030
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIVOT BEARING+BUSH. PDS '11
50304090144
|
$76.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PLUG SFL13
55009086000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SWINGARM BOLT M16X1,5 07
77304037000
|
$66.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
Nut with flange M16X1,5 WS=19 03
54804038000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLOSING COVER ROUND 03
58404041100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CHAIN GUARD CPL. 07-11
77304066010
|
$29.58 | ||
|
Available to order. Add to View Price |
|||
|
#29
PRESS IN NUT M6 STEEL ZINC
54603055051
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#98
Chain guide kit
77304070310
|
$67.53 | ||
|
Available to order. Add to View Price |
|||
|
#99
SWINGARM REP. KIT
59404230110
Superseded by 54804230010
|
$91.95 | ||
|
Available to order. Add to View Price |
|||
