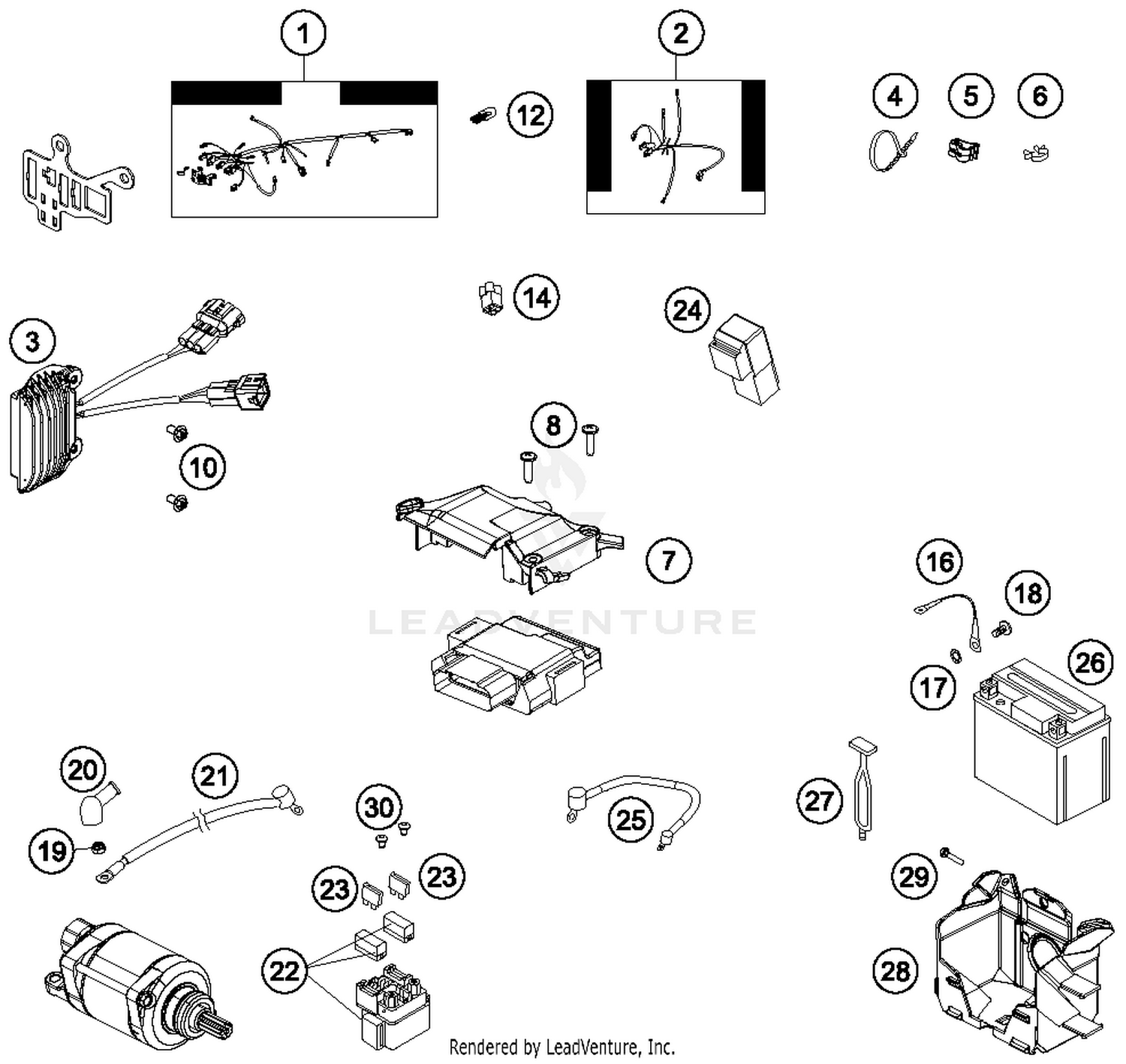

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRING HARN.EFI VMT. EU/AUS 14
78111075133
|
$572.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
WIRING HARNESS LIGHT XC-W 14
77711079100
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
VOLTAGE REGULATOR
78111034000
|
$250.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CABLE GUIDE
83013026000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRING HOLDER 16MM
57013072100
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
ECU SPLASH PROTECT.
77711094050
|
$12.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW FOR PLASTIC K50X18 T20
0081050181
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
COLLAR SCREW M6X12 TX
0023060123
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BULB 12V 2,3W (W2X4,6D)
49111425200
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
DUMMY PLUG AN 4-PIN
81211096000
|
$10.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GROUND CABLE D=6MM L=140MM '97
58411097100
|
$10.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CONTACT WASHER M6 VSV-K6
58411098100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
EJOT SPIRAL SCREW SF M5X10-K
0009050106
|
$2.99 | ||
|
Unavailable |
|||
|
#19
SELF LOCK. NUT DIN0985-M 6
0985060003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PROTECTION CAP F. STARTER ENG.
58440099000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
STARTERCABLE 700 MM '97
58411059100
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
STARTER RELAY 12V '99
58211058000
|
$85.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
FUSE 20 A
58011109120
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
RELAY CM1A-R-12V-H80 07
61111057000
|
$19.79 | ||
|
Available to order. Add to View Price |
|||
|
#25
WIRING HARNESS BATTERY DUKE'99
58711086000
|
$18.14 | ||
|
Available to order. Add to View Price |
|||
|
#26
battery 12V/24Wh
77311053000
Superseded by 79111053000
|
$195.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
RUBBER L=145MM
50303018000
|
$7.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BATTERY BOX
77211055000
|
$17.26 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SCREW FOR PLASTIC K60X20 SW6
0017060205
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
AH OVAL SCREW ISO 7380 M 6X8
0902060083
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
