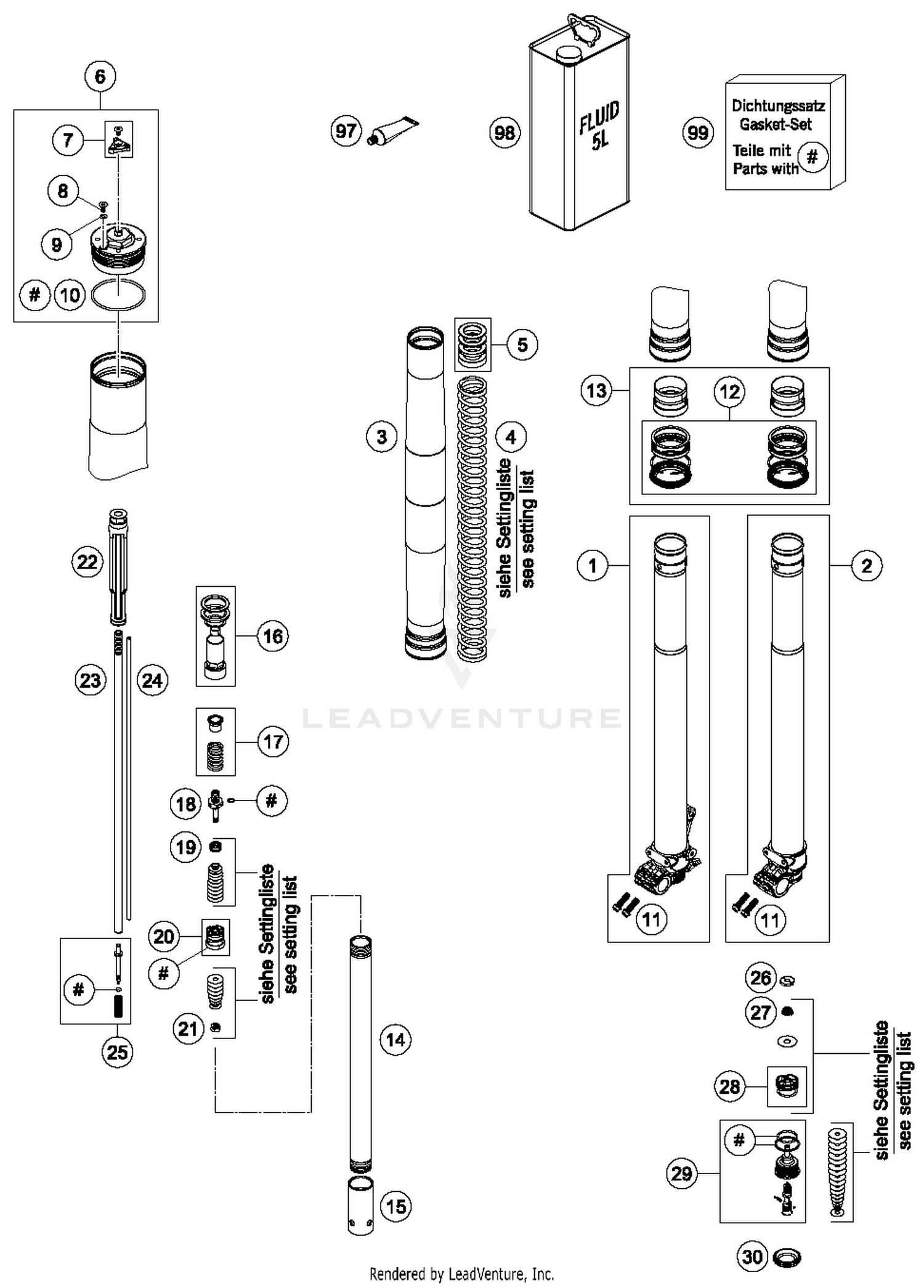

Front Fork Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE CLAMP L/S + TUBE CPL.
48601437S1
|
$565.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE CLAMP R/S + TUBE CPL.
48601438S1
|
$541.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
Fork outer tube 49,13x577 dt54 db60 natu
48600736
|
$543.94 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING 3,8N/MM SET D=4,9MM
91410012S
|
$171.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING 4,0N/MM SET D=5,0MM
91410013S
|
$266.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING 4,2N/MM SET D=5,0MM
91410014S
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING 4,4N/MM SET D=5,1MM
91410015S
|
$171.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING 4,6N/MM SET
91410016S
|
$171.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING 4,8N/MM SET
91410017S
|
$176.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING SPACER KIT
R14026
|
$90.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw cap M51x1,5 rebound cpl.
48601561E
Superseded by 48601561S
|
$89.86 | ||
|
Available to order. Add to View Price |
|||
|
#7
ADJUSTER REB. RED CPL.
48601118S
Superseded by 48601118ST
|
$4.39 | ||
|
Unavailable |
|||
|
#8
Cross countersunk head screw M4x8
48600481
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
O-ring 3x1,5 NBR70
48600046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-ring 45x2 NBR70 siliconized
46810340
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
HH collar screw M8x25
0025080256
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Seal kit 48mm SKF black
R14040
Superseded by RP10048T
|
$78.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Fork repair kit 48mm offroad
R14063
|
$192.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
Tube 23x350
48600763
|
$88.21 | ||
|
Available to order. Add to View Price |
|||
|
#15
Adapter 23x28x70
48600764
|
$26.28 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW SLEEVE M27X0,8
48600830S
|
$38.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
Spring (13,9) 17-32 rebound cpl.
48600511S
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
Tap 6x46 rebound
48600576
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Spring (11,7) 1,5-8 valve
35480377
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#20
PISTON REBOUND + PISTON RING
48600575S
|
$34.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Nut M6x0,5 h6,5 WAF10 rebound
40540486
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#22
Stop 12,4x31,9x200 cpl.
48600557S
|
$48.79 | ||
|
Available to order. Add to View Price |
|||
|
#23
Piston rod 12x554
48600568
|
$116.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
Adjustment tube 6x520
48600559
|
$15.94 | ||
|
Available to order. Add to View Price |
|||
|
#25
Needle 4,5x43,6 cpl.
48600277S
|
$10.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Nut valve M6x0,5 h6,5 WAF17
48600163
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#27
Spring (8,5) l6,5 valve
48600202
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#28
Piston 6x27,8x9 compression cpl.
48600047S
|
$17.70 | ||
|
Available to order. Add to View Price |
|||
|
#29
Compression
48600586E
Superseded by 48600586S3
|
$44.32 | ||
|
Available to order. Add to View Price |
|||
|
#30
Rubber cap 35x10 NBR80
48600141
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#97
Fuchs grease IPR (250g)
T511
Superseded by T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#98
Fork Fluid Viscosity 4.0 5L
48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
O-RING KIT FORK 48MM
R14064
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
