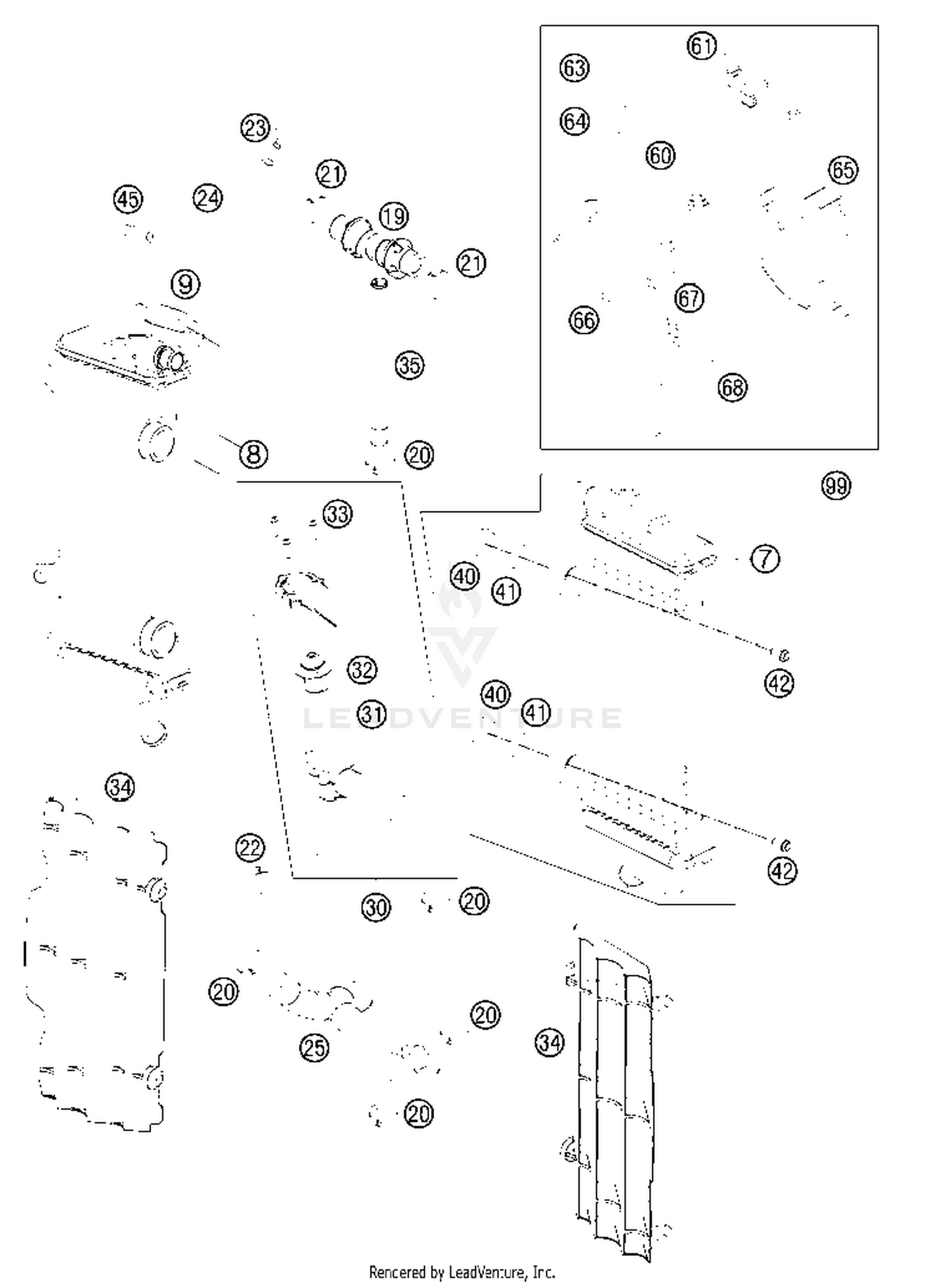

Cooling System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#7
RADIATOR L/S ''55623U'' 12
77035007300
|
$335.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
RADIATOR R/S ''55556U'' 12
78035008100
|
$316.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
RADIATOR R/S ''55556U'' 12
78035008200
Superseded by 78035008100
|
$316.79 | ||
|
Unavailable |
|||
|
#9
RADIATOR CAP SMALL 1,8 BAR
77335016000
|
$26.61 | ||
|
Available to order. Add to View Price |
|||
|
#19
Y-CONNECTOR CPL.
77235071044
|
$62.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
Hose clip 18-29
10001020000
Superseded by 0310000902900
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Hose clip 14-24
42013037400
Superseded by 0310000902400
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE CLAMP GEMI 10-16
58335099000
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
ANGLE PIECE '97
50303089000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
PVC-HOSE 6X9
50335030001
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#25
RADIATOR HOSE CPL.+Y-CONNECT.
77235025033
|
$71.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
RAD.HOSE CPL. W. THERM. '12
77535026033
|
$119.23 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING 32,00X2,00
770320020
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#32
Thermostat 70á¦C
59435017000
Superseded by 59435117100
|
$49.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SCREW FOR PLASTIC D=4X18
16040183
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#34
RADIATOR PROTECTION orange
7733503400004
|
$9.99 | ||
|
Unavailable |
|||
|
#34
RADIATOR PROTECTION BLACK 07
7733503400030
|
$12.64 | ||
|
Unavailable |
|||
|
#35
HOSE CONNECTOR L=172,5
77235073000
|
$28.15 | ||
|
Available to order. Add to View Price |
|||
|
#40
RUBBER SLEEVE D=12MM
41001052000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER FOR RADIATOR 08
77335001000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
COLLAR SCREW M6X12
23060123
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP YDNAC 10096F (9,6MM)
59007017000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
FAN WIRING HARNESS
59011079100
|
$48.39 | ||
|
Available to order. Add to View Price |
|||
|
#61
FUSE 5 A 2003
58011109105
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
ALU SEALRING DIN7603-14X20X1,5
603142015
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#64
THERMOSWITCH 95-100 DG
78035045000
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
FAN CPL. 12V LC4 2000
58435041000
|
$161.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#66
SCREW FOR PLASTIC K50X18
81050181
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
FAN SUPPORT
81235943000
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#68
RIVET 4,0X 8 ALU
11400800
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#99
FAN KIT COMPLETE
81235941044
Superseded by 81235941144
|
$168.99 | ||
|
Unavailable |
|||
