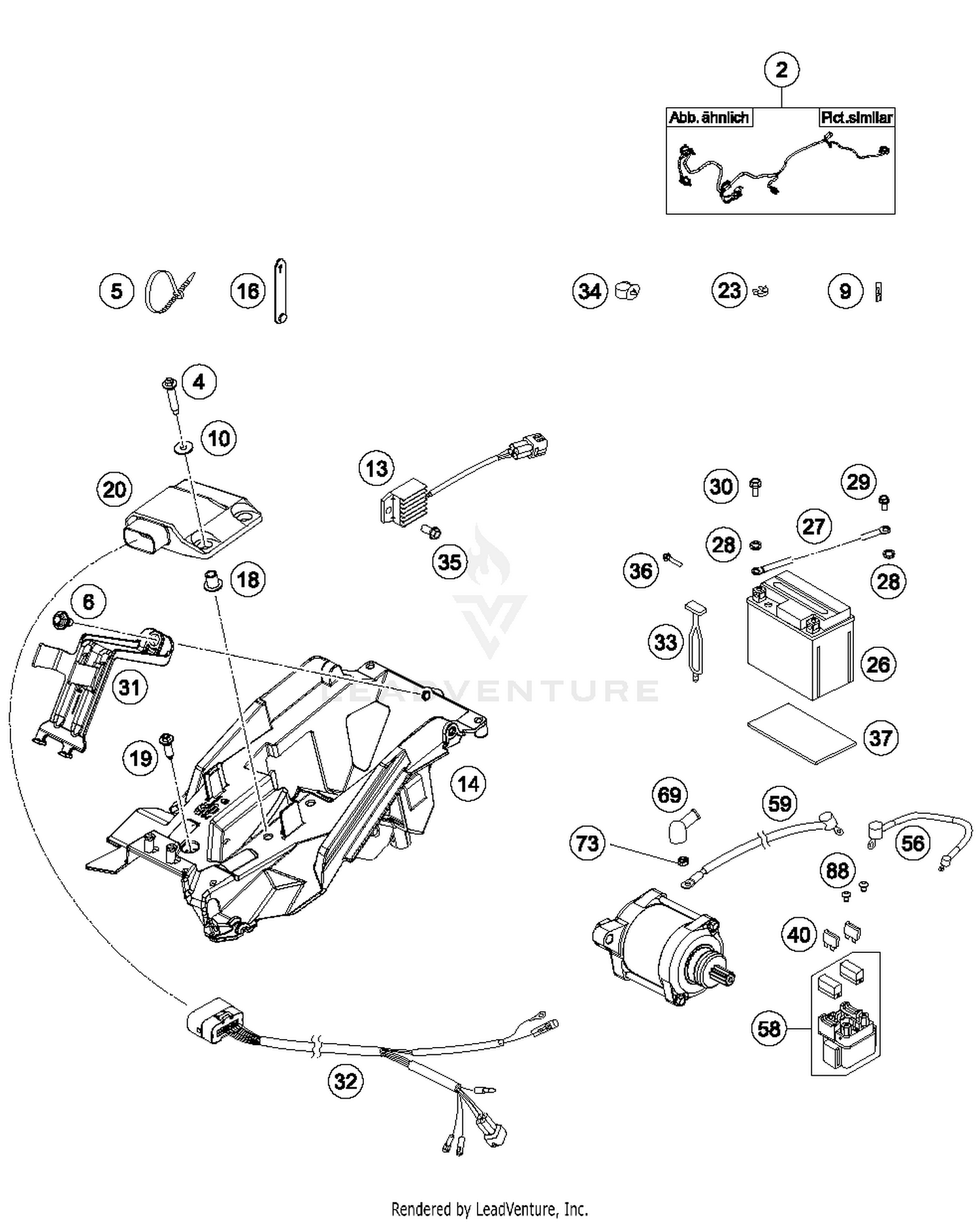

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
WIRING HARNESS 200/300 XC-W 14
54811075800
|
$154.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPECIAL SCREW K60X30 WS=6
0017060305
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BULB 12V 2,3W (W2X4,6D)
49111425200
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
washer DIN 9021 A - 5.3
0021050003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
VOLTAGE REGULATOR 04
80011034000
|
$117.14 | ||
|
Available to order. Add to View Price |
|||
|
#14
BATTERY BOX
79011055100
|
$44.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
RUBBER CABLE TIE 60MM 03
60011093060
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
COLLAR BUSHING 6,2X9,2X15X12,5
60308006000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW F. PLASTIC K60X20AL SW6
0017060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Dash board box 300 18
55439331000
Superseded by 55639131000
|
$314.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
WIRING HOLDER 12MM
57013072000
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WIRING HOLDER 16MM
57013072100
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
battery 12V/24Wh
77311953000
Superseded by 79111053000
|
$195.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
GROUND CABLE D=6MM L=140MM '97
58411097100
|
$10.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CONTACT WASHER M6 VSV-K6
58411098100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
EJOT SPIRAL SCREW SF M5X10-K
0009050106
|
$2.99 | ||
|
Unavailable |
|||
|
#30
HH collar screw M5x12 TX30
0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BATTERY BOX SUPPORT
79011056100
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
HARNESS CDI BOX 2T 2017
55439032000
|
$66.98 | ||
|
Available to order. Add to View Price |
|||
|
#33
RUBBER L=145MM
50303018000
|
$7.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
CABLE SUPPORT KHS NR.150-47610
58111076000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
COLLAR SCREW M6X12 TX
0023060123
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
SCREW FOR PLASTIC K60X20 SW6
0017060205
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
METAMOLL 90X45X3MM 03
59003001099
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
FUSE 10 A 2000
58011109110
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
WIRING HARNESS BATTERY DUKE'99
58711086000
|
$18.14 | ||
|
Available to order. Add to View Price |
|||
|
#58
STARTER RELAY 12V '99
58211058000
|
$85.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#59
STARTERCABLE 1100MM 07
55111059000
|
$30.68 | ||
|
Available to order. Add to View Price |
|||
|
#69
PROTECTION CAP F. STARTER ENG.
77240099000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#73
SELF LOCK. NUT DIN0985-M 6
0985060003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#88
AH OVAL SCREW ISO 7380 M 6X8
0902060083
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
