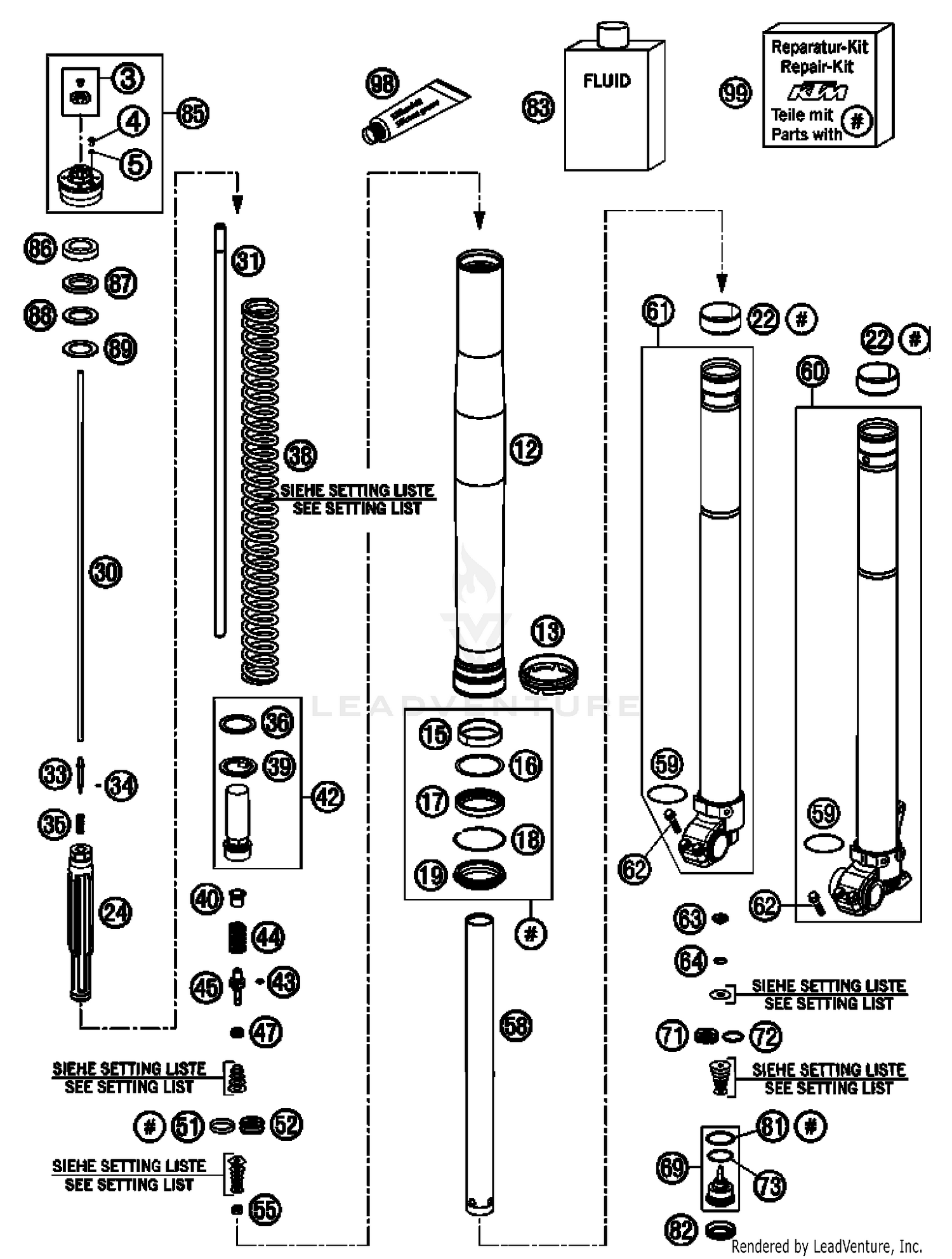

Front Fork, Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#3
ADJUSTING KNOB + SCREW
48600564S
Superseded by 48600812ST
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Cross countersunk head screw M4x8
48600481
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
O-ring 3,7x1,6 NBR70
48600009
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
OUTER TUBE L577 D54/60MM 2L BL
48600693
|
$412.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
Fork protection ring 62,1mm
48600698
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Guide bushing 48x52x12
48600429
Superseded by 48601009
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
Supportwasher 50x57,6x1,5
48600013
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
Shaft seal SKF 48x58x11,4 black
48600347
Superseded by S604800001000C1
|
$16.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Snap ring SB58x1,5 acc drawing
48600070
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Dirtscarper SKF 48mm black
48600400
Superseded by S604800000000C1
|
$15.06 | ||
|
Available to order. Add to View Price |
|||
|
#22
Guide bushing 47x49x20
48600428
Superseded by 48601008
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#24
Stop 12,4x31,9x200 cpl.
48600557S
|
$48.79 | ||
|
Available to order. Add to View Price |
|||
|
#30
Adjustment tube 6x520
48600559
|
$15.94 | ||
|
Available to order. Add to View Price |
|||
|
#31
Piston rod 12x554
48600568
|
$116.70 | ||
|
Available to order. Add to View Price |
|||
|
#33
Needle 4,5x43,6
48600277
|
$6.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
O-ring 2x1,5 NBR70
48600298
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
Spring (5,4) 4-23 rebound
48600444
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#36
Washer 32x42x2,5 plastic
48600113
|
$13.08 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 3,8N/MM SET D=4,9MM
91410012S
|
$171.59 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,0N/MM SET D=5,0MM
91410013S
|
$266.69 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,2N/MM SET D=5,0MM
91410014S
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,4N/MM SET D=5,1MM
91410015S
|
$171.59 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,6N/MM SET
91410016S
|
$171.59 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,8N/MM SET
91410017S
|
$176.87 | ||
|
Available to order. Add to View Price |
|||
|
#39
Spring retainer 33,5x43x3
48600021
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#40
Spring retainer 12,3x19x1,25 rebound
48600525
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
SCREW SLEEVE M29,3X1 L=90 CPL.
48600556S
|
$35.19 | ||
|
Available to order. Add to View Price |
|||
|
#43
O-ring 6x1,2 NBR70
48600299
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
Spring (13,9) 17-32 rebound cpl.
48600511
Superseded by 48600511S
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#45
TAP REBOUND 07
48600513
|
$18.80 | ||
|
Available to order. Add to View Price |
|||
|
#47
Spring (11,4) 0,4-8 valve
48600382
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
Pistonring 26x28x5
48600060
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#52
Piston 6,05x27,65x12 rebound
48600042
|
$14.19 | ||
|
Available to order. Add to View Price |
|||
|
#55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#58
TUBE 29,3X1X390 D=8,5MM
48600081
|
$186.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
O-ring 46x2 NBR70 siliconized yellow
48600048
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#60
AXLE CLAMP L/S + TUBE CPL.
48600237S2
Superseded by 48600860SA2
|
$764.16 | ||
|
Available to order. Add to View Price |
|||
|
#61
AXLE CLAMP R/S + TUBE CPL.
48600238S3
Superseded by 48600861SA3
|
$404.34 | ||
|
Available to order. Add to View Price |
|||
|
#62
HH collar screw M8x25
0025080256
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#63
Nut valve M6x0,5 h6,5 WAF17
48600163
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#64
Spring (8,5) l6,5 valve
48600202
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#69
Compression
48600586S
Superseded by 48600586S3
|
$44.32 | ||
|
Available to order. Add to View Price |
|||
|
#71
Piston 6x27,8x9 compression
48600047
|
$11.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#72
O-ring 21x2 NBR70
46811499
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#73
O-ring 24x2 NBR70
35480320
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#81
Copper disc 29,5x33,5x1
48600004
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#82
Rubber cap 35x10 NBR80
48600141
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#83
Fork Fluid Viscosity 4.0 5L
48600401S1
Superseded by 48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#85
Screw cap M51x1,5 cpl.
48600431S1
Superseded by 48600431E2
|
$85.25 | ||
|
Available to order. Add to View Price |
|||
|
#86
Preload bush 26,5x42x10
48600038
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#87
Preload bush 26,5x42x5
48600037
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#88
Preload bush 42x26,5x2,5
48600036
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#89
Preload bush 26,5x42x1,5
48600053
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#98
Fuchs grease IPR (250g)
T511
Superseded by T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#99
Repair kit gasket 48mm (4860 MXMA)
R14015
Superseded by RP10045T
|
$124.95 | ||
|
Available to order. Add to View Price |
|||
