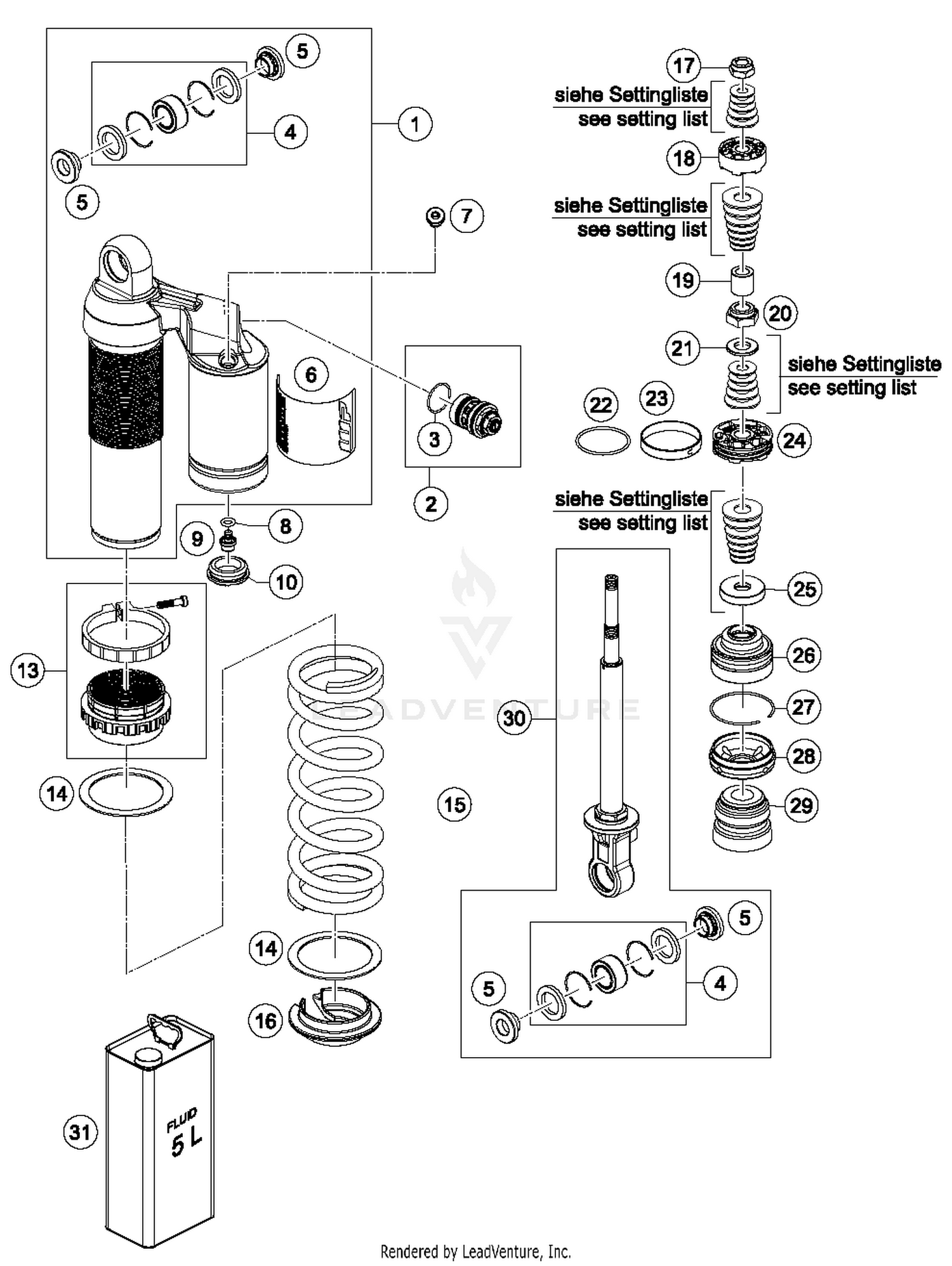

Shock Absorber Dissassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MONOSHOCK CASE CPL.
46181019S2
|
$637.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
Compression cpl.
50181101S10
|
$142.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-ring 25x1,5 Viton70
50180218
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
Ball joint bearing kit top 12mm
R12012
Superseded by R12012T
|
$42.01 | ||
|
Available to order. Add to View Price |
|||
|
#5
Distance bush 12x15/18/24,5x10,5
46180007
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
Sticker WP warning India 35x60
52000087
Superseded by 52000149
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
HS cylinder-head screw R1/8 l8
50180095
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O-ring 5,28x1,78 HNBR70 red
46810893
Superseded by S208600003000FB
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG SCREW M5X6 CPL.
36120151
Superseded by 36120151ST
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#10
Rubber cap do not open 22x5,5 NBR
46811208
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Spring retainer M55x2x71x35 plastic cpl.
46181013S
|
$51.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
Washer 58,6x73,6x1,5
50180410
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING (59) 215 40 N/MM D=9,5
91010161S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING (59) 215 35 N/MM D=9,25
91010240S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING (59) 215 30 N/MM
91010271S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Spring retainer 28x56x15
46180349
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
PISTON ROD NUT M10X1
46180356
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#18
Piston 10,05x35,4x13,65 3,5/5,5
46180744
|
$73.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
Bush 10x17x19
46181025
Superseded by S26100000000000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
Piston rod nut M12x1
46810474
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
Washer 12x24x2,5
46811258
|
$29.14 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-ring 37x,82x1,78 Viton70 green
46810035
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#23
Piston ring 43,95x45,95x8
46811206
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#24
Piston 12,05x45,5x12,6 4,5/7
46810560
|
$162.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
Rebound disc 12x34x7 h4
46180337
|
$38.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
Sealholder 46x28 cpl.
46180669S
Superseded by S614620000S0100
|
$83.81 | ||
|
Available to order. Add to View Price |
|||
|
#27
Round-wire snap ring 49x1,8
46810010
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
Cover 46,12x6,2 h15,7
46180338
|
$40.58 | ||
|
Available to order. Add to View Price |
|||
|
#29
Rubber pad 17,2x45,2x40 black
50180276
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#30
MONOSHOCK LOWER PART
46180520S5
|
$371.79 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHOCK ABSORBER FLUID 5 LT
50180751S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
