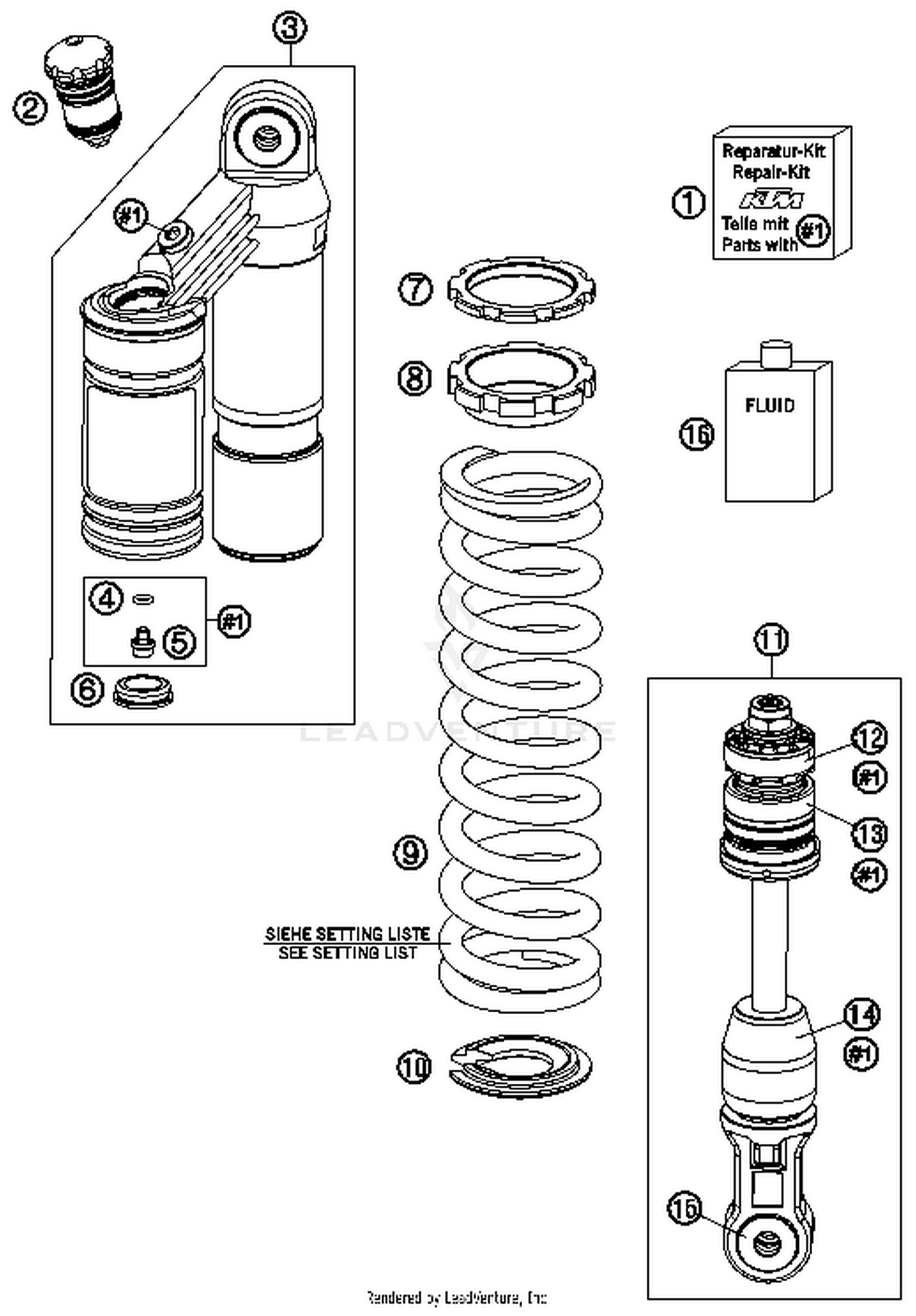

2014 KTM SX 65 Monoshock Disassembled OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 REPAIR-KIT R308	$100.68
Available: Ships in 7-12 days. Add to View Price
#2 CC-COMPRE.DAMPING CONTROL CPL. 46810850S9	$158.75
Available: Ships in 7-12 days. Add to View Price
#3 MONOSHOCK TOP PART CPL. 36120817S1	$464.94
Available: Ships in 7-12 days. Add to View Price
#4 O-ring 5,28x1,78 NBR70 black 46810893	$0.54
In Stock: Ready to ship. Add to View Price
#5 PLUG SCREW M5X6 CPL. 36120151 Superseded by 36120151S	$11.52
In Stock: Ready to ship. Add to View Price
#6 Rubber cap do not open 22x5,5 NBR 46811208	$2.19
In Stock: Ready to ship. Add to View Price
#7 Lock nut shock M44x1,5 36120015	$30.69
Available: Ships in 7-12 days. Add to View Price
#8 Adjustment nut shock M44x1,5 36120418	$45.56
Available: Ships in 7-12 days. Add to View Price
#9 SPRING 40N/MM 40-220 220MM ORA 93010181S	$187.10
Available: Ships in 7-12 days. Add to View Price
#9 SPRING 35N/MM 35-220 220MM ORA 93010182S	$150.91
Available: Ships in 7-12 days. Add to View Price
#9 SPRING 45N/MM 45-220 220MM ORA 93010183S	$150.91
Available: Ships in 7-12 days. Add to View Price
#10 Spring retainer 27x57x2 36120386	$26.93
Available: Ships in 7-12 days. Add to View Price
#11 MONOSHOCK LOWER PART CPL. 36120781S10	$464.39
Available: Ships in 7-12 days. Add to View Price
#12 Pistonring 33x35x8 36120040	$6.47
Available: Ships in 7-12 days. Add to View Price
#13 Sealholder 36x26,6 cpl. 36120787S	$76.65
Available: Ships in 7-12 days. Add to View Price
#14 Rubber pad 13,9x38x43 black 36120799	$12.08
Available: Ships in 7-12 days. Add to View Price
#15 REPAIR KIT BEARINGS 65 SX 09 R309	$68.65
Available: Ships in 7-12 days. Add to View Price
#16 SHOCK ABSORBER FLUID 5 LT 50180751S1	$197.43
Available: Ships in 7-12 days. Add to View Price
