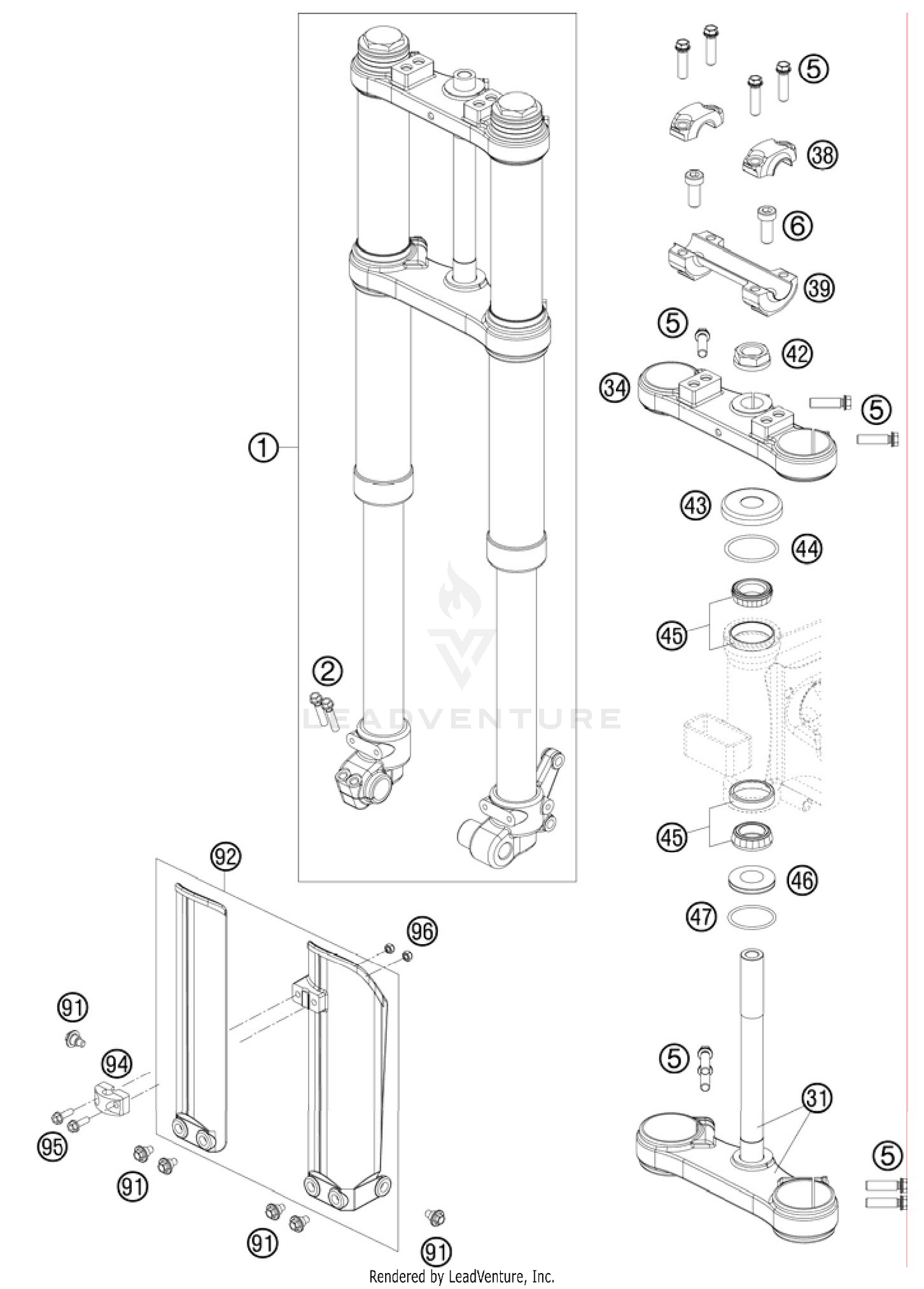

Front Fork, Triple Clamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK USS D035MM 09
46201000033
|
$775.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
HH collar screw M6x30 TX30
0025060306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
HH collar screw M8x30
0025080306
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
AH-COLLAR SCREW M10X25 ISA45
0032100256S
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOT.TRIPLE CLAMP + FORK TUBE
77051116
|
$232.04 | ||
|
Available to order. Add to View Price |
|||
|
#34
TOP TRIPLE CLAMP
7501478
|
$132.29 | ||
|
Available to order. Add to View Price |
|||
|
#38
HANDLEBAR CLAMP D=22MM 2001
50301038000
|
$25.29 | ||
|
Available to order. Add to View Price |
|||
|
#39
HANDLEBAR SUPPORT 22MM 2T 2000
59001039000
|
$63.92 | ||
|
Unavailable |
|||
|
#42
HH NUT M20X1,5 WS=27 RIGHT
59030029000
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#43
COVERING CAP
49001086000
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#44
O-RING 40,94X2,62 NBR70
0770021300
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
TAPERED ROLLER BEARING 32004X
49001081000
|
$49.60 | ||
|
Available to order. Add to View Price |
|||
|
#46
PROTECTION RING 20,1X39X5
46001086000
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#47
O-RING 36,00X3,00 NBR
0770360030
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#91
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92
FORK PROTECTOR SET 65 SX WHITE
4610109400028
|
$25.51 | ||
|
Available to order. Add to View Price |
|||
|
#94
BRAKE HOSE CLIP
5460108500028
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#95
HH collar screw M5x16 TX30
0025050166
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#96
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
