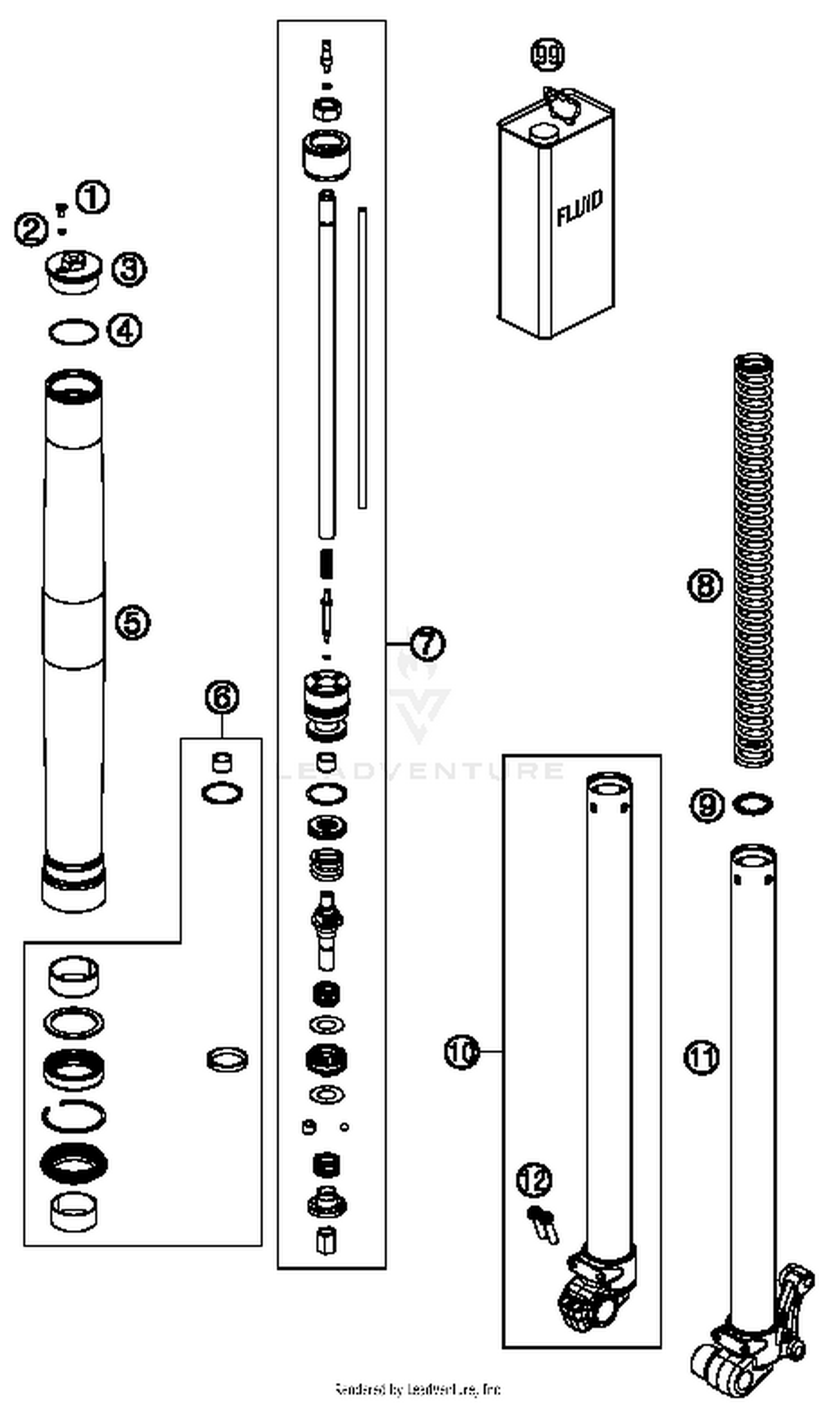

Front Fork Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Cross countersunk head screw M4x8
48600481
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
O-ring 3x1,5 NBR70
48600046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW CAP M38X1,5 ADJ. REB
35480496S
|
$51.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW CAP M38X1,5 ADJ. COM
35480496S1
|
$79.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-ring 35x1,5 NBR70 yellow
46180581
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
Fork outer tube 36x465 dt44 db48
35480472
|
$248.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
REPAIR KIT 50SX 2012
R703
Superseded by R703T
|
$103.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON ROD L/S CPL.
35480477S
|
$203.39 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON ROD R/S CPL.
35480477S3
|
$203.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING 2,6 N/MM SET
95010056S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING 2,8N/MM D3,6 SET
95010044S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING 3,0 N/MM SET
95010057S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Washer 22x30x2,5
35480497
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
AXLE CLAMP KTM 65SX R/S. CPL.
35480455S2
Superseded by 35480455S4
|
$384.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
AXLE CLAMP KTM 65SX L/S CPL.
35480466S2
|
$319.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
HH collar screw M6x25 TX30
0025060256
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#99
% FORK OIL SAE5
48600765
|
|||
|
Unavailable |
|||
