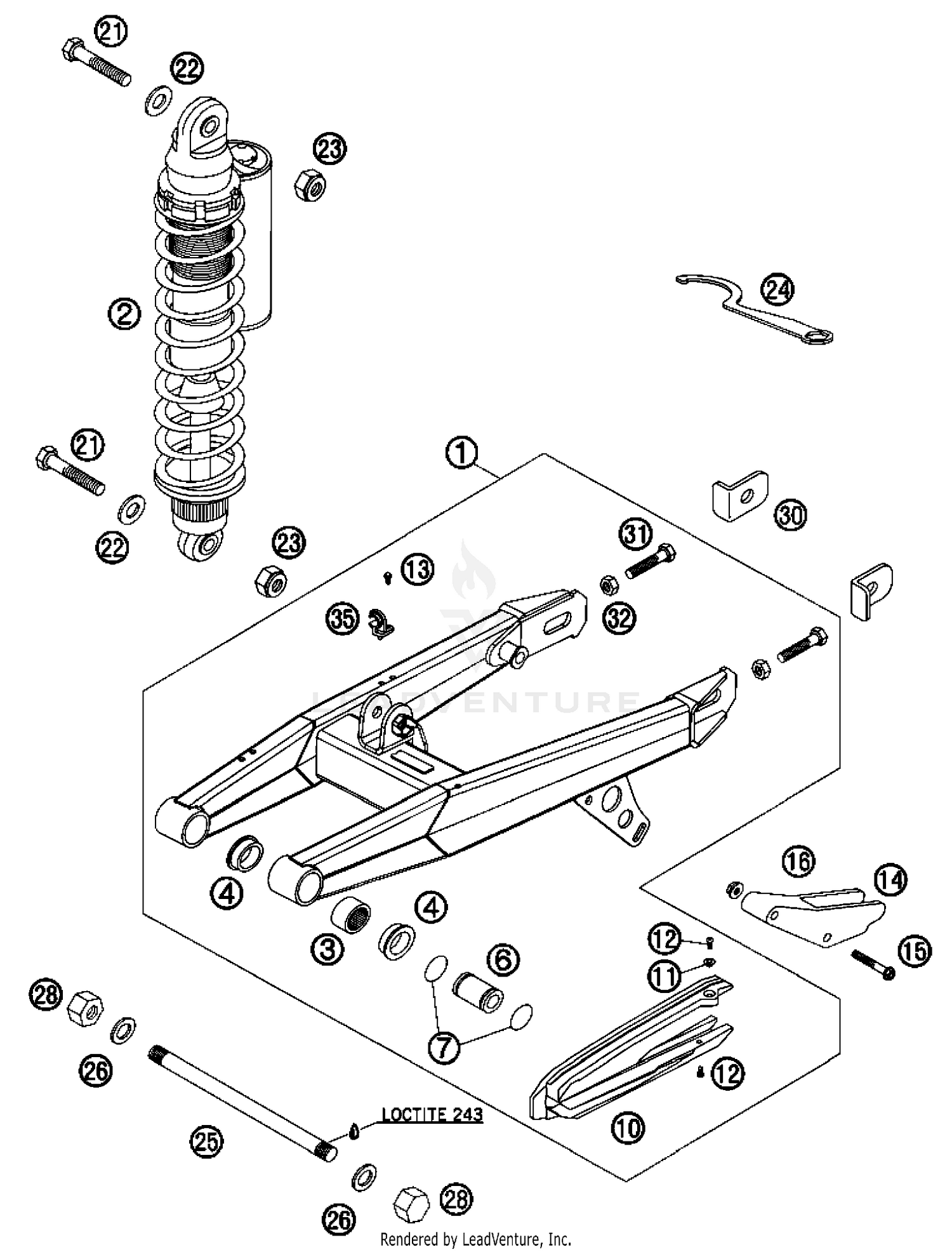

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWING ARM CPL. 65 SX 2008
46104030144
|
$682.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
MONOSHOCK
03187D03
|
|||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE BUSH HK 2016
54603097000
|
$17.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER BUSHING 20X26X30X9,7
46004030070
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BUSHING BOX 12X20X36,5
46004030071
|
$21.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
O-RING 16,00X2,00 VITON
0770160021
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CHAIN SLID. GUARD FRO. 65SX 02
46104066000
|
$22.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH FOR CHAINSLIDER GUARD 02
46104066050
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPECIAL SCREW M 5,0X10
0010050103
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
EJOT SPIRAL SCREW SF M5X10-K
0009050103
Superseded by 0009050106
|
$2.99 | ||
|
Unavailable |
|||
|
#14
CHAIN GUIDE REAR 60/65 '98
46007066000
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HH collar screw M6x40 TX30
0025060406
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SELF LOCKING NUT M6 10.9
56509064100
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
HH SCREW DIN0931-M10X45
0931100453
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
washer DIN 125 A 10.5
0125100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
HOOK WRENCH FOR SHOCK ABSORBER
46012024000
|
$22.54 | ||
|
Available to order. Add to View Price |
|||
|
#25
SWINGARM BOLT 201MM M12X1
46004037000
|
$28.18 | ||
|
Available to order. Add to View Price |
|||
|
#26
FLAT WASHER DIN0125-A13
0125120003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
NUT DIN917-M12X1
0917120103
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
CHAIN ADJUSTER 60/65 '98
46010083000
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
HH SCREW M8X40 WS=10
50203030090
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
RETAIN.CLAMP FOR BRAKE HOSE'96
54611076100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
