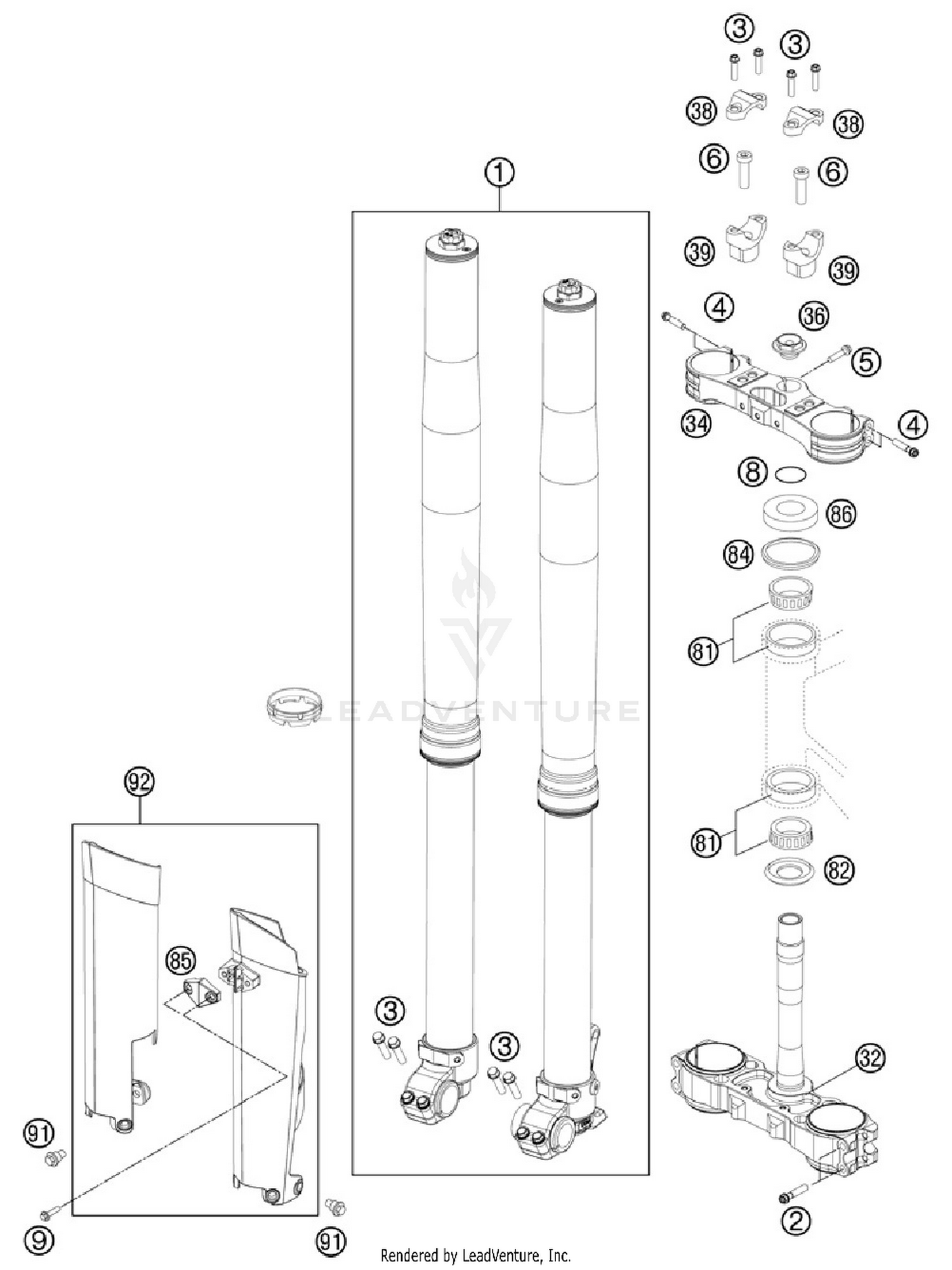

Front Fork, Triple Clamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK WP 450 SX-F USA
14187L5901
|
|||
|
Unavailable |
|||
|
#2
HH collar screw M8x50 TX40
0025080506
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
HH collar screw M8x25
0025080256
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
HH COLLAR SCREW M8X40 TX40
0025080406
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
HH COLLAR SCREW M8X25 WS=10
0015080256S
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
AH-COLLAR SCREW M10X35 ISA45
0912100356
Superseded by 0032100356S
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O-RING 25X3,55 NBR70 05
0770025035
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW F. PLASTIC K60X20AL SW6
0017060204
Superseded by 0017060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOTT.FORK PLATE VMT. X=22MM BL
7720103202230
|
$417.11 | ||
|
Available to order. Add to View Price |
|||
|
#34
TRIPLE CLAMP TOP X=22 BLACK
7720103402230
Superseded by 7770103402230
|
$263.22 | ||
|
Available to order. Add to View Price |
|||
|
#36
Steering head screw M20x1.5 SW=27
54801036000
Superseded by 54801036300
|
$13.19 | ||
|
Unavailable |
|||
|
#38
HANDLEBAR CLAMP 28MM
77201038000
|
$29.47 | ||
|
Available to order. Add to View Price |
|||
|
#39
HANDLEB.SUPP. D=28MM H=32MM 05
59401039032
|
$43.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
HANDLEB.SUPP. D=28MM H=37MM 05
59401039037
|
$40.14 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
HANDLEB.SUPP. D=28MM H=42MM 05
59401039042
|
$42.67 | ||
|
Available to order. Add to View Price |
|||
|
#81
TAPERED ROLLER BEARING CPL. 06
54201081100
|
$60.05 | ||
|
Available to order. Add to View Price |
|||
|
#82
O-RING SUPPORT W. SEALING LIP
54601084100
Superseded by 77701084000
|
$22.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#84
STEARING HEAD GASKET TOP
54601184000
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#85
CLAMP F. SPEED. CABLE D=6MM 08
7800108500028
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#86
STEERING HEAD COVER
78101086000
|
$7.14 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#91
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92
FORK PROTECT. L/S+R/S WHITE
7800109410028
Superseded by 7800109420028
|
$36.40 | ||
|
Unavailable |
|||
