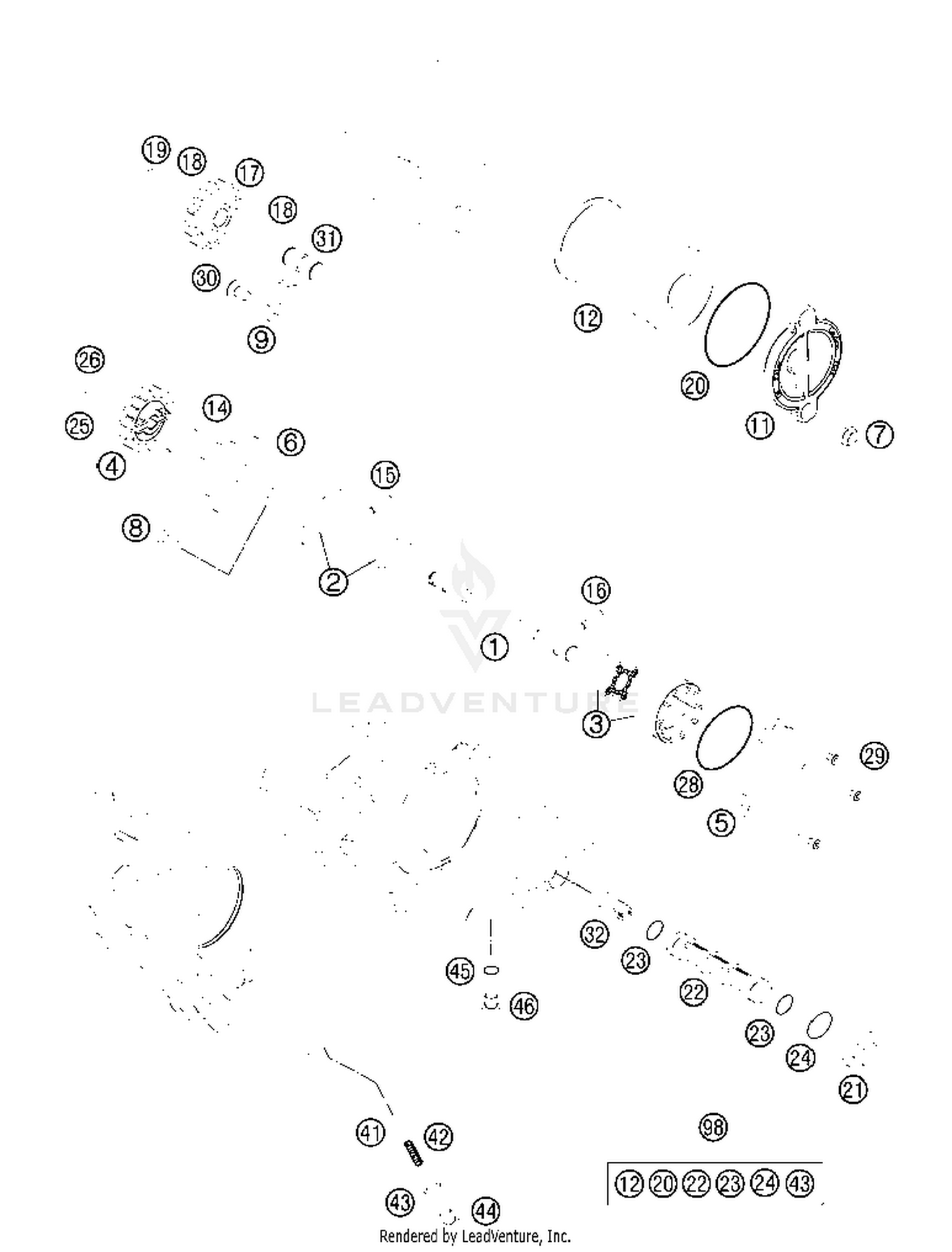

Lubricating System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP SHAFT
77238102000
|
$31.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
OILPUMP ROTOR 12MM G-95R/003
59038011012
|
$52.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROTOR SET 22MM
61238111000
Superseded by 61238011100
|
$20.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL PUMP GEAR 14T 08
77038001100
|
$9.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
OIL PUMP COVER SUCTION PUMP
78038004000
|
$30.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL PUMP COVER R/S
77238003100
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
HH COLLAR SCREW M6X16
25060166
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLIND. SCR. DIN6912 M5X12 8.8
0984050123S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
AXIAL-CIRCLIP
77238061050
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL FILTER COVER 08
77338041200
|
$13.74 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL FILTER
77338005100
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NEEDLEROL.DIN5402 NRA 2,5X19,8
402251980
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
NEEDLE ROLLER DIN5402 2,5X11,8
402251180
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#16
NEEDLE ROLLER NRB 4X15,8 G2
402041580
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
OILPUMP IDLER GEAR 08
77038006100
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHIM WASHER DIN0988-12X18X0,50
988121805
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP DIN0471-12X1
471120010
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING 33,05X1,78
7703305178
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG M20X1,5 WS=13
59038017000
Superseded by 59038017100
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#22
Oil screen
59038016100
Superseded by 59038016200
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING 12,5X1,5 NBR
770125015
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING 17,17X1,78 GLO
770020170
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#25
STOP DISK 8,1 X 15 X 0,5
58038007755
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
TAB WASHER DIN6799-RS 6,0
799060000
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING 44,00X2,00 VITON
770440020
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#29
CYL. SCREW DIN6912 M5X16 8.8
0984050163S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
INT. TORX OVAL HEAD M 5X10 8.8
18050103
|
$0.59 | ||
|
Available to order. Add to View Price |
|||
|
#31
BUSHING PIN
77038013100
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL INTAKEPIPE
77038022000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#41
BALL DIN5401-9
401090003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
PRESSURE SPRING L=25MM D=1MM
58038023300
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
PLUG DIN0908-M12X1,5
908120153
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#45
O-RING 1,5x11 SILICON
770110015
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#46
Screw plug M24x1.5
78036081000
Superseded by 78036081100
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#98
OILFILTER-GASKET SET 350 SX-F
50000083
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
