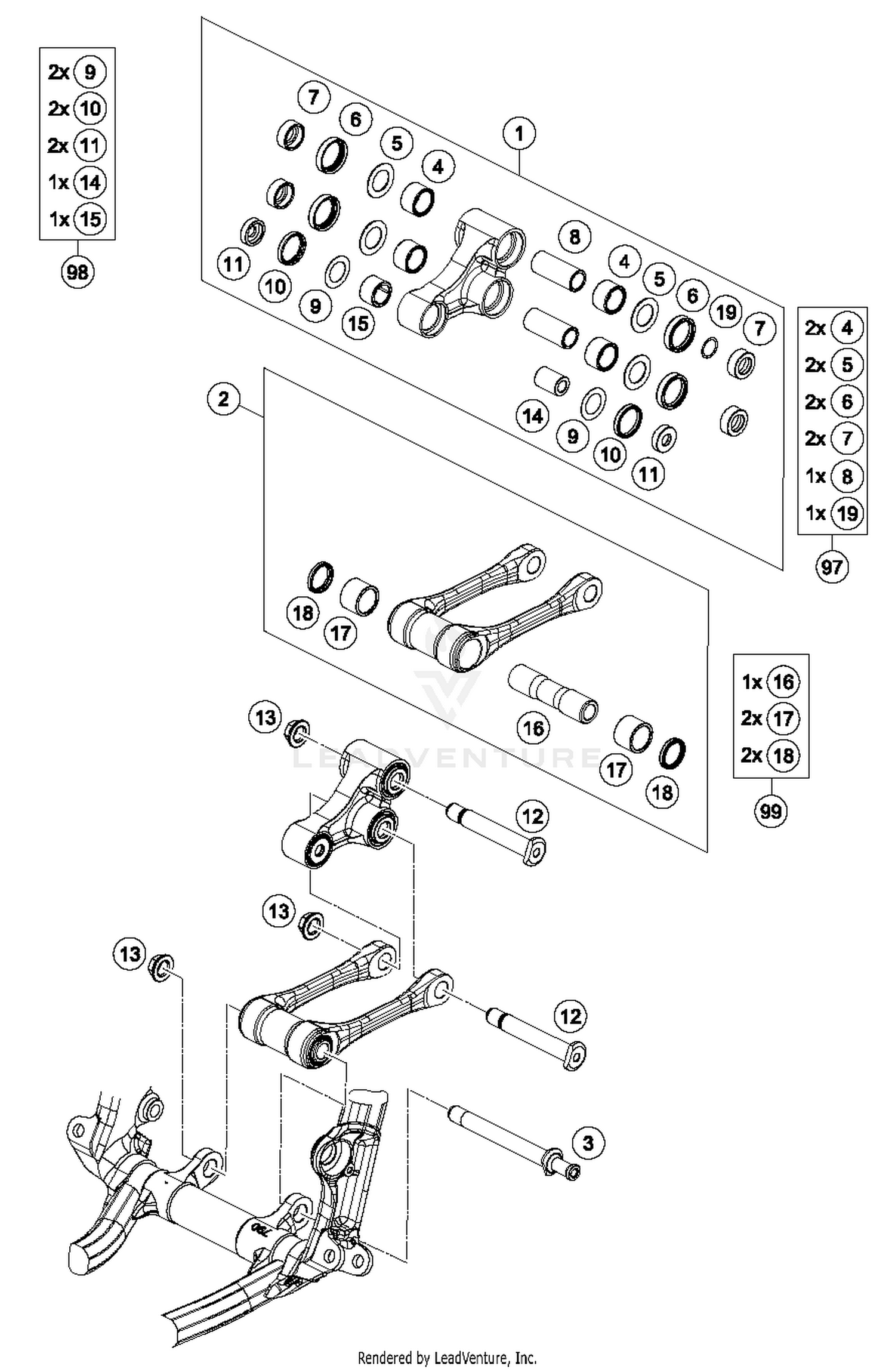

Pro Lever Linking Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TRIANGLE LEVER CPL. SX 2017
7900408004401
Superseded by 7900408014401
|
$330.43 | ||
|
Available to order. Add to View Price |
|||
|
#2
PULLROD CPL. SX 2016
7900408304401
|
$219.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
Pin pull rod M14x1.5
79004084000
Superseded by 79004084100
|
$57.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEEDLE BUSH HK 2016
54603097000
|
$17.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM 20X32X1
59033080000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
radial shaft seal 25x32x7
0760253270
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUCKET SHAFT SEAL RING 25X11
77204080130
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSHING SLEEVE 15 X 20 X 48
54603081000
|
$29.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
Shim 29,75x19x0,4
50180604
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT SEAL RING 24X30X5
0760243050
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUCKET FOR SHAFT SEAL RING
77204080020
|
$11.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT FOR CANTILEVER M14
77204085000
|
$57.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
hex nut M14x1.5 WS17
77204087000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING SLEEVE 10X18X25,5
77204080010
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
NEEDLE BUSH HN1816 RS 18/24/16
0618182416
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING SLEEVE F. TIE-ROD 16
79004084010
|
$26.06 | ||
|
Available to order. Add to View Price |
|||
|
#17
NEEDLE BEARING HK2220 22X28X20
0618222820
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT SEAL RING G22x28x4
0760222841
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
STEEL WASHER 15,2X19X0,1
54603090010
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
STEEL WASHER 15,2X19X0,2
54603090020
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
STEEL WASHER 15,2X19X0,3
54603090030
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#97
TRIANGLE LEVER REP. KIT REAR
77204080110
|
$120.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#98
TRIANGLE LEVER REP. KIT FRONT
77204080090
|
$55.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#99
PULL ROD REP. KIT SX-F
79004083010
|
$54.44 | ||
|
Available to order. Add to View Price |
|||
