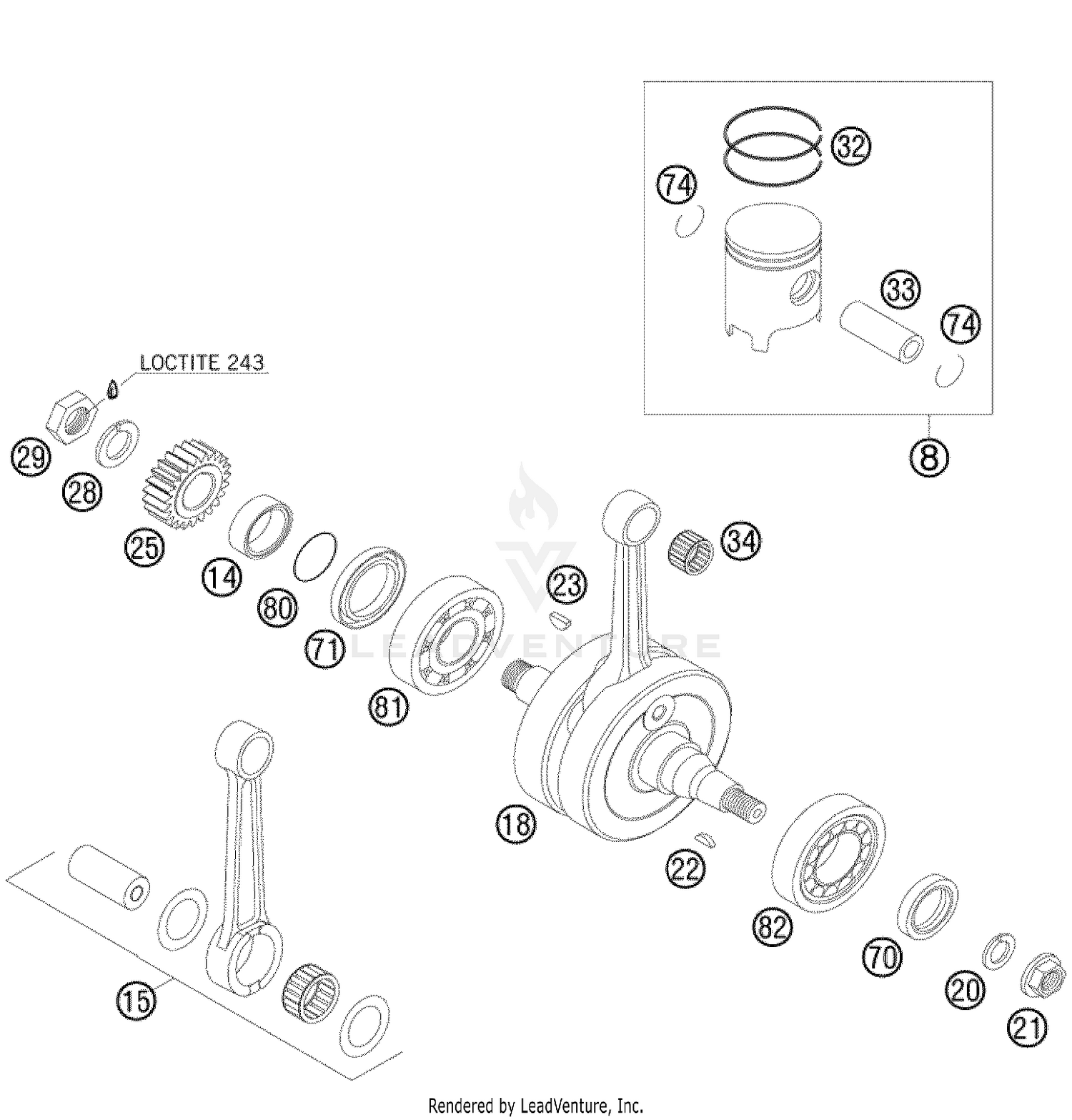

Crankshaft, Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#8
PISTON 144 SX
51530007300 I
Superseded by 51530007400 I
|
$296.77 | ||
|
Unavailable |
|||
|
#8
Piston
51530007300 II
Superseded by 51530007400 II
|
$295.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER BUSHING 12MM
54633014100
|
$24.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CON.ROD REPAIR KIT 125'07
50330015100
|
$432.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
CRANKSHAFT CPL. 144 SX 2007
51530018000
|
$923.44 | ||
|
Available to order. Add to View Price |
|||
|
#20
LOCKING RING VSK 12
50230029012
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Collar nut, M12x1, right
49030021000
Superseded by 49030021100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WOODRUFF KEY DIN6888-3X5X13
0888030050
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WOODRUFF KEY 5X6,5 HARDED
6946005
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PRIMARY PINION 23-T 125/200 06
50332023123
|
$91.07 | ||
|
Available to order. Add to View Price |
|||
|
#28
LOCKING RING VSK 16
50230029016
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Hex nut M 16x1.5 left
50330029000
Superseded by 0009361600800S
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#32
TRAPEZOID RING 144 08
51530032000
|
$49.71 | ||
|
Available to order. Add to View Price |
|||
|
#33
PISTON PIN 150 SX 08
51530033000
Superseded by 51530033100
|
$21.51 | ||
|
Available to order. Add to View Price |
|||
|
#34
NEEDLE BEARING KBK 15X19X20
51030034000
|
$29.47 | ||
|
Available to order. Add to View Price |
|||
|
#70
SHAFT SEAL RING 25X35X7 BTSL
0760253570
|
$20.23 | ||
|
Available to order. Add to View Price |
|||
|
#71
Shaft seal ring 32x45x6.5
0760324564
Superseded by 0760324566
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#74
WIRE LOCK RING 15X1
50330074500
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
O-RING 25,00X2,00 NBR 70
0770250020
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#81
BALL BEARING 6305 JR2 CS36
0625063055
|
$50.81 | ||
|
Available to order. Add to View Price |
|||
|
#82
CYL.ROLLER BEAR.NJ206 ET2XCS46
50330082000
|
$97.89 | ||
|
Available to order. Add to View Price |
|||
