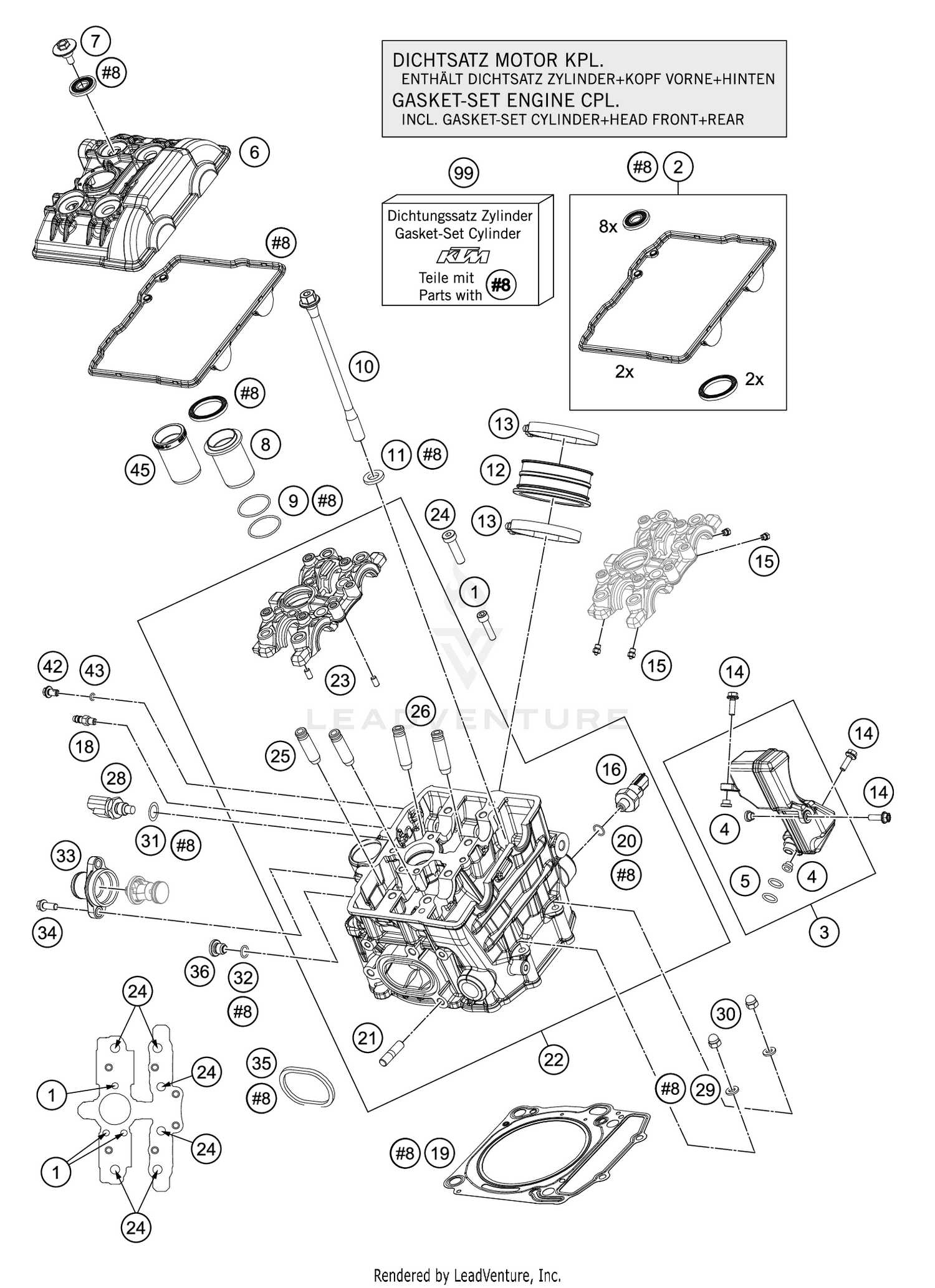

Cylinder Head Front Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AH SCREW DIN0912-M 6X25 10.9
0912060255
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE COVER GASKET SET
61236099100
|
$65.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
RESONATOR KPL.
60736065000
|
$66.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
Spacing tube spring retaining bracket
78003023070
Superseded by 78003123070
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
O-RING 11X2 VITON
0770110021
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE COVER FRONT 09
6123605210033
|
$53.12 | ||
|
Available to order. Add to View Price |
|||
|
#7
collar screw M 6 WS=10 03
60036052020
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPARK PLUG SHAFT
61336075100
|
$22.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING 29,87X1,78 VITON
0770298178
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER HEAD SCREW 08
61236079000
|
$18.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER 11,1X20X3 08
61236079050
|
$6.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
INTAKE BOOT
61336044000
|
$46.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE CLAMP GEMI 75
61336048000
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
HH collar screw M5x16 TX30
0025050166
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
oil jet 50 M5
60030063050
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
Oil pressure switch cpl. Bitron
61238091000
Superseded by 61238091144
|
$39.37 | ||
|
Available to order. Add to View Price |
|||
|
#18
VACUUM CONNECTION M6/0.75MM
60036023200
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
CYLINDER HEAD GASKET 0,85
61330036085
|
$78.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING 8,00X1,5 NBR 70
0770080015
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
STUD M 8X16 10.9
0835080165
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
cylinder head front
6073602000024
Superseded by 6073602014424
|
$874.38 | ||
|
Available to order. Add to View Price |
|||
|
#23
needle roller DIN 5402 5x9.8
0402050980
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
AH SCREW DIN7984-M 8X30 10.9
0984080305
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
VALVE GUIDE EXHAUST 08
61236026001
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#26
VALVE GIUDE INTAKE 6MM
61236025001
|
$26.39 | ||
|
Available to order. Add to View Price |
|||
|
#28
TEMPERAT.-SENSOR WATER LC8 02
60011252000
|
$43.11 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER DIN0125-A 6,4
0125060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
CAP NUT M6 STAINLESS STEEL
61230045000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
o-ring 10.00x2.00 silicone
0770100020
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING 9x1,5 V80 SH
07700900151
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
WATER CONNECTION CPL.
61235019100
|
$26.39 | ||
|
Available to order. Add to View Price |
|||
|
#34
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
EXHAUST PIPE FLANGE GASKET
69005005100
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
SCREW PLUG
77336056095
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#42
VENT SCREW M6X10 CPL.
59036006090
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
O-RING 5,0X1,2 NBR 70
0770050012
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
INSERT SPARK-PLUG SHAFT
61336074100
|
$26.72 | ||
|
Available to order. Add to View Price |
|||
|
#99
GASKET SET CYLINDER+HEAD F+R
61330097000
|
$388.07 | ||
|
Available to order. Add to View Price |
|||
