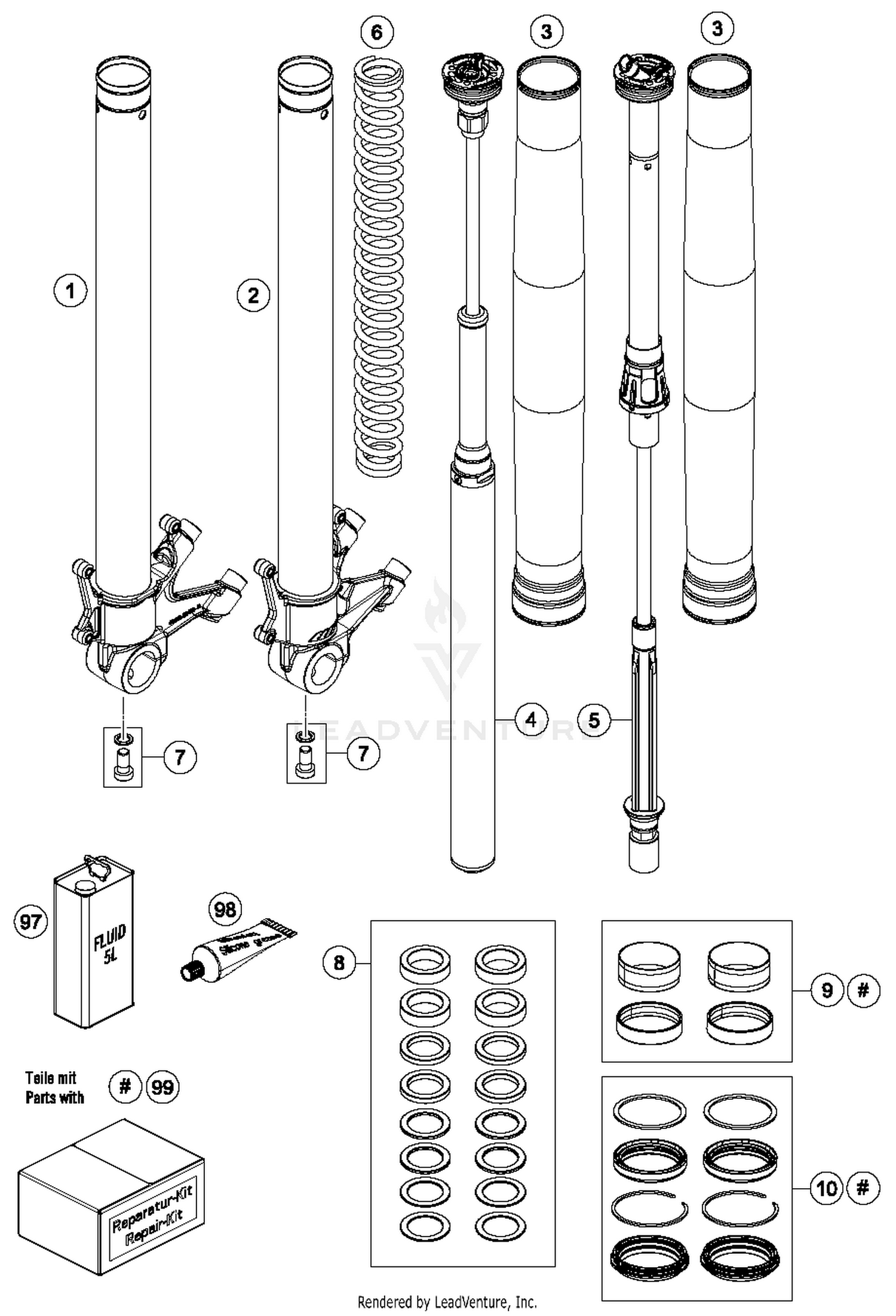

Front Fork Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE CLAMP W. INNER TUBE R/S
48601082S1
|
$670.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE CLAMP W. INNER TUBE L/S
48601081S1
|
$670.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
Fork outer tube 49,13x550 dt54 db60
48601099
|
$734.68 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cartridge cpl.
48SAF1P26R
Superseded by 48SAF1Q26R
|
$1,084.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
Cartridge cpl.
48SAF1P26L
Superseded by 48SAF1Q26L
|
$1,084.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
Mainspring (43,8) 120-430 fork
91410110
|
$176.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
AH SCREW M10X20 SET
00501020S1
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#8
REP. KIT SPACER
R14054
Superseded by R14054T
|
$21.00 | ||
|
Unavailable |
|||
|
#9
Guide bushing set fork 48mm
R14047
Superseded by R14047T
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Seal kit 48mm SKF black
R14040
Superseded by RP10048T
|
$78.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#97
Fork Fluid Viscosity 4.0 5L
48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#98
Fuchs grease IPR (250g)
T511
Superseded by T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#99
Fork repair kit 48mm offroad
R14063
|
$192.77 | ||
|
Available to order. Add to View Price |
|||
