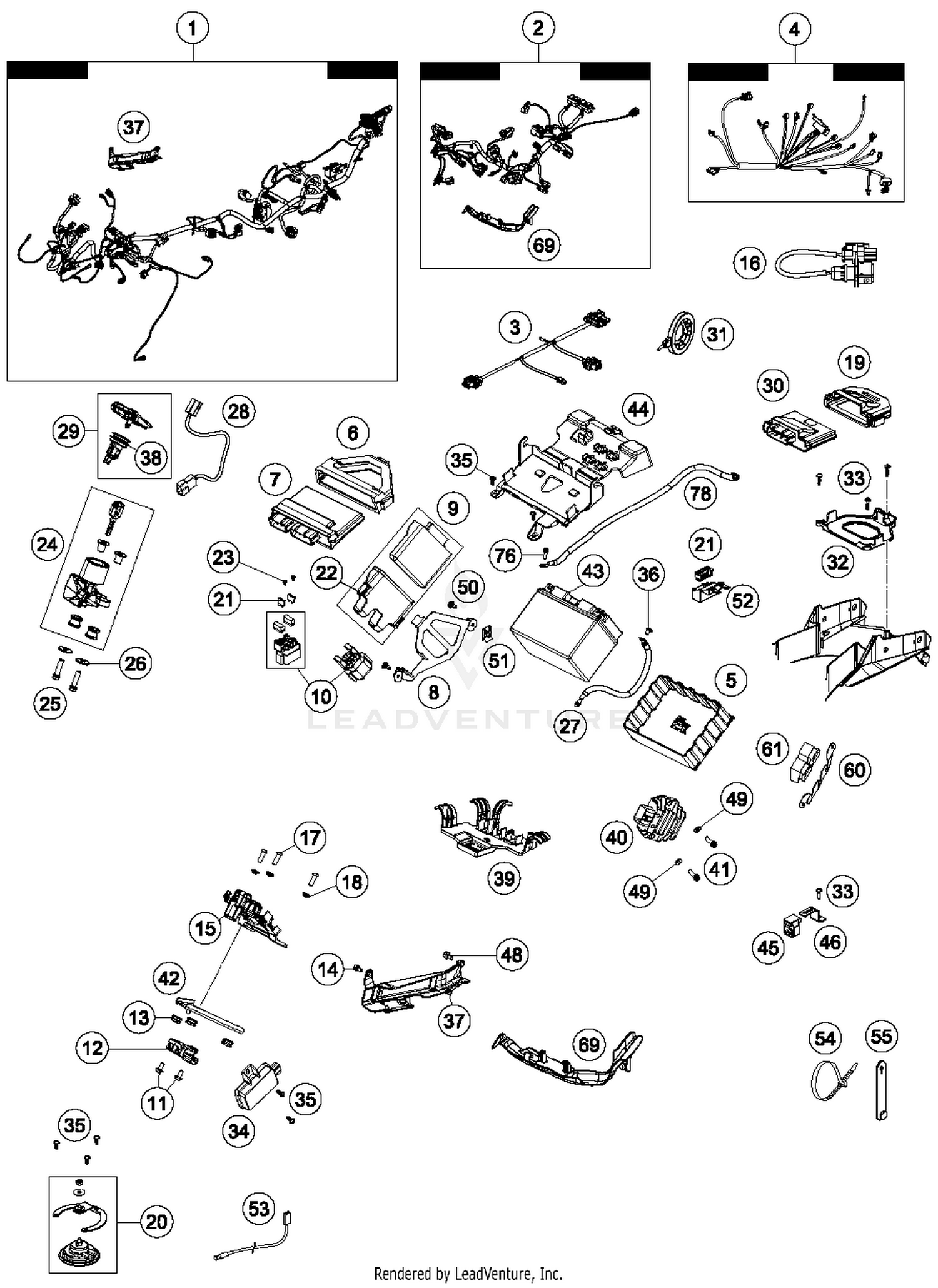

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Main wiring harness R cpl.
60711175033
|
$1,208.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
Engine harness
60711085000
Superseded by 60711085100
|
$522.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRING HARNESS HEAD LIGHT
60311079000
|
$58.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
REAR WIRING HARNESS
60311076000
|
$51.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
BATTERIE HOUSING
60311053050
|
$16.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
ECU RUBBER BRACKET
60341031050
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
Control unit EFI
61341031300
|
$735.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET ELECTRIC
60311057050
|
$49.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
ELECTRONIC CONTROL UNIT SAFE
60416031000
Superseded by 60416031100
|
$614.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
STARTER RELAY 12V '99
58211058000
|
$85.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
HH collar screw M6x13 TX30
0024060136
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
inertial sensor
60342090000
Superseded by 60342090100
|
$548.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMP. COMPONENT ABS MODUL
62142041000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
special screw M5x12
69008021160
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Connector support front
60711048000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
Wiring harness
60411078050
|
$44.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
FLAT HEAD SCREW ISO7380 M6X20
0738060201
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR BUSHING
76508043050
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
Rubber band
60711033050
|
$13.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
Direct current horn complete
60711060033
|
$46.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
FUSE 40 A
58011109140
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FUSE 30 A
58011109130
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FUSE 25 A
58011109125
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FUSE 15 A
58011109115
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FUSE 10 A 2000
58011109110
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RUBBER EDS-CONTROL UNIT
60316029000
|
$39.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
AH OVAL SCREW ISO 7380 M 6X8
0902060083
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Ignition lock Race-on 868MHz
60711066000
|
$621.71 | ||
|
Available to order. Add to View Price |
|||
|
#25
HH COLLAR SCREW M8X30 TX40
0025080306S
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER DIN9021-A 8,4
0021080003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BATTERIE CABLE
60311059050
|
$24.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
Cable
60711042050
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#29
Power socket complete silver
60714013033B2
|
$43.88 | ||
|
Available to order. Add to View Price |
|||
|
#30
Control unit MCU 3.0
60711033000
|
$760.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
Antenna keyless
69011168000
|
$48.39 | ||
|
Available to order. Add to View Price |
|||
|
#32
Support
60708019010
|
$9.34 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW FOR PLASTIC K50X18 T20
0081050181
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
RECEIVER AIR PRESSURE SENSOR
60312032000
|
$199.64 | ||
|
Available to order. Add to View Price |
|||
|
#35
EJOT PT screw K50x12
0081050121
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
AH OVAL SCREW ISO 7380 M 6X8
0902060083
|
$1.99 | ||
|
Unavailable |
|||
|
#37
CABLE CHANNEL R/S
60311047000
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#38
Power socket 12V
60711042000
|
$65.66 | ||
|
Available to order. Add to View Price |
|||
|
#39
Plug board rear
60311049200
Superseded by 60311049300
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#40
Regulator rectifier
60311034000
Superseded by 60311034100
|
$142.19 | ||
|
Unavailable |
|||
|
#41
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
BRACKET SLOPING POSITIONS SENS
60342090040
|
$42.56 | ||
|
Available to order. Add to View Price |
|||
|
#43
BATTERY 12V/11AH 03
60011053000
|
$369.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BATTERIE COVER
60308017000
|
$23.31 | ||
|
Available to order. Add to View Price |
|||
|
#45
RUBBER SUPP. PRESSURE SENS. 05
61041085050
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BRACKET PRESSURE SENSOR
60311040100
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#48
COLLAR SCREW M6X12 TX
0023060123
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
PLASTIC WASHER 03
60007020040
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
HH collar screw M5x12 TX30
0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
RANGE CHANGE METAL NUT M5
54603048200
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#52
RUBBERCOVER F.LOCKHOLDER
58411087050
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#53
TEMPERATURE SENSOR
61111018100
|
$37.17 | ||
|
Available to order. Add to View Price |
|||
|
#54
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
RUBBER CABLE TIE 45MM 03
60011093045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
RUBBER CABLE TIE 60MM 03
60011093060
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
RUBBER CABLE TIE 75MM 03
60011093075
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#60
Retaining bracket
60711057050
|
$23.75 | ||
|
Available to order. Add to View Price |
|||
|
#61
RELAY CM1A-R-12V-H80 07
61111057000
|
$19.79 | ||
|
Available to order. Add to View Price |
|||
|
#69
CABLE CHANNEL L/S
60311046000
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#78
GROUND CABLE
60311097000
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
