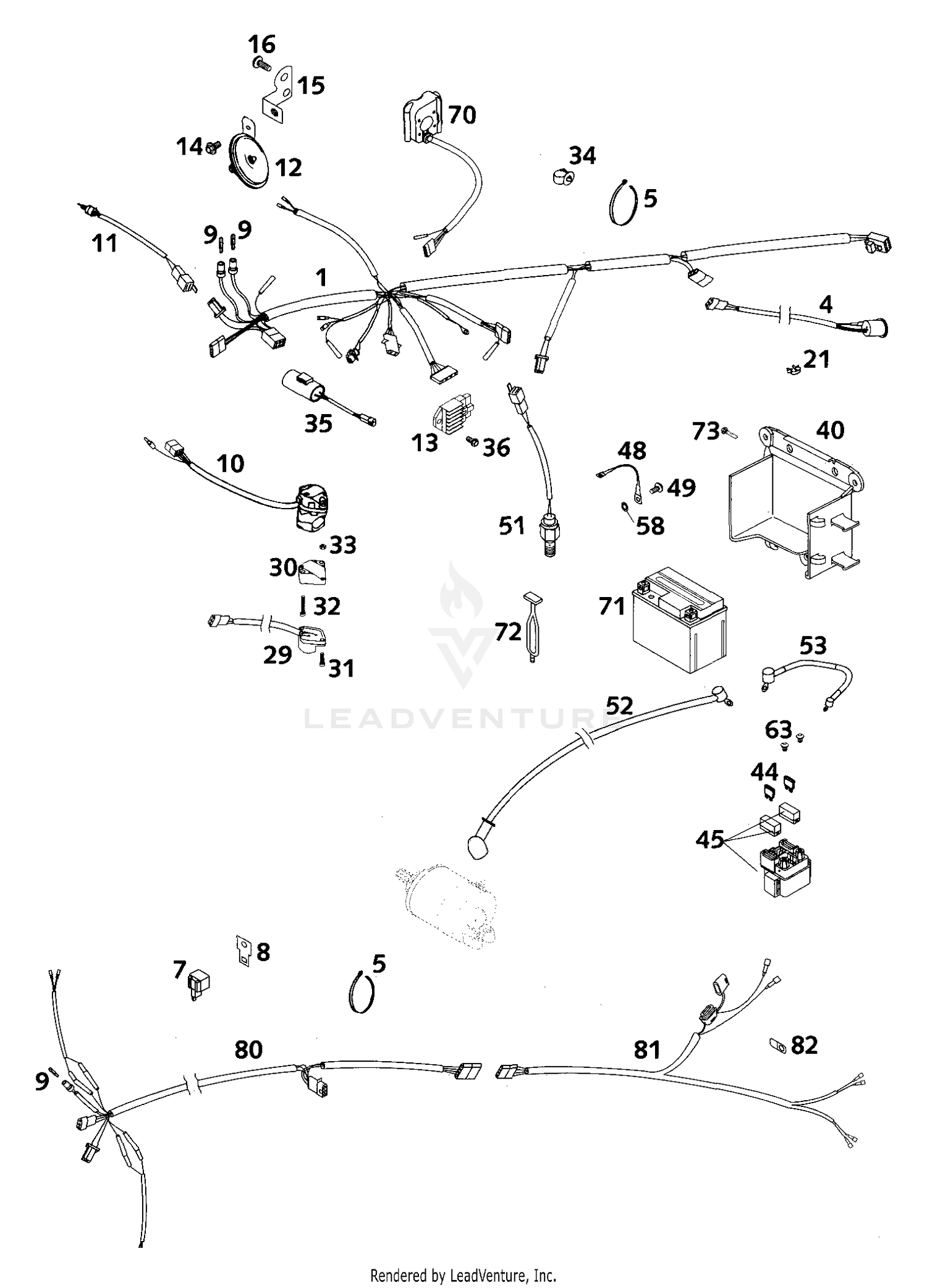

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRING HARN. FRONT EUROPE 2000
59011075200
|
|||
|
Unavailable |
|||
|
#4
WIRING HARNESS REAR 125-380'98
50311076000
|
$32.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
FLASHER UNIT 97
44611207200
|
$58.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET FOR FLASHER RELAY
58211031100
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB 12V 2,3W (W2X4,6D)
49111425000
Superseded by 49111425200
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
H.LIGHT SWITCH CEV 2/4TAKT '98
50311070000
|
$76.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
H.LIGHT SWITCH CEV EGS AUS.'98
50311070100
|
$87.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRAKE LIGHT SWITCH FRONT 2000
50311050000
|
|||
|
Unavailable |
|||
|
#12
DC HORN 12V NIKKO
54511060100
|
|||
|
Unavailable |
|||
|
#13
VOLTAGE REGULA. 12V 125-200'98
50311034000
|
$120.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
HH COLLAR SCREW M6X10 TX30
0014060103
Superseded by 0024060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BRACKET FOR NIKKO HORN 2000
50311061000
|
|||
|
Unavailable |
|||
|
#16
HH collar screw M6x15 TX30
0014060153
Superseded by 0024060156
|
$3.99 | ||
|
Unavailable |
|||
|
#21
WIRING HOLDER 12MM
57013072000
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WIRING HOLDER 16MM
57013072100
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
FLASHER SWITCH CEV '98
50311029000
|
$61.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
ADAPTER FOR FLASHER SWITCH '98
13011070060
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#31
FLAT HEAD SCREW DIN7985-M 4X16
0985040163
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CYL.HEAD SCREW DIN0084-M 4X22A
0084040223
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
HEXAGON NUT DIN0934-M 4
0934040003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CABLE SUPPORT KHS NR.150-47610
58111076000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CONDENSATOR 2200MF ADP-48 2000
50311035000
|
$89.42 | ||
|
Available to order. Add to View Price |
|||
|
#36
HH collar screw M6x12 TX30
0015060123
Superseded by 0025060126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
BATTERY CARRIER PLAST.BLACK 05
59011055000
Superseded by 59011055100
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#44
FUSE 10 A 2000
58011109110
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
STARTER RELAY 12V '99
58211058000
|
$85.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
GROUND CABLE D=6MM L=140MM '97
58411097100
|
$10.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
HH COLLAR SCREW M6X10 TX30
0014060103
Superseded by 0024060106
|
$3.99 | ||
|
Unavailable |
|||
|
#51
BRAKE LIGHT SWITCH REAR '98
50311051100
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#52
STARTERCABLE 700 MM '97
58411059100
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#53
WIRING HARNESS BATTERY DUKE'99
58711086000
|
$18.14 | ||
|
Available to order. Add to View Price |
|||
|
#58
CONTACT WASHER M6 VSV-K6
58411098100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
AH OVAL SCREW ISO 7380 M 6X8
0902060083
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
START-STOP SWITCH 2000
59011074000
Superseded by 59011074100
|
$73.58 | ||
|
Available to order. Add to View Price |
|||
|
#70
START-STOP SWITCH 2000
59011074100
|
$73.58 | ||
|
Unavailable |
|||
|
#71
BATTERY 12V 4AH YTX5L-BS
58511053000
|
$131.88 | ||
|
Available to order. Add to View Price |
|||
|
#72
RUBBER L=145MM
50303018000
|
$7.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#73
SCREW FOR PLASTIC K60X20 SW6
0017060203
Superseded by 0017060205
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
FLAS.WIRINGHARN. FRONT 125-380
50311080100
|
$41.95 | ||
|
Available to order. Add to View Price |
|||
|
#81
FLAS.WIRINGHARN. REAR 125-380
50311081000
|
|||
|
Unavailable |
|||
|
#82
RETAINING PLATE
50031003000
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
