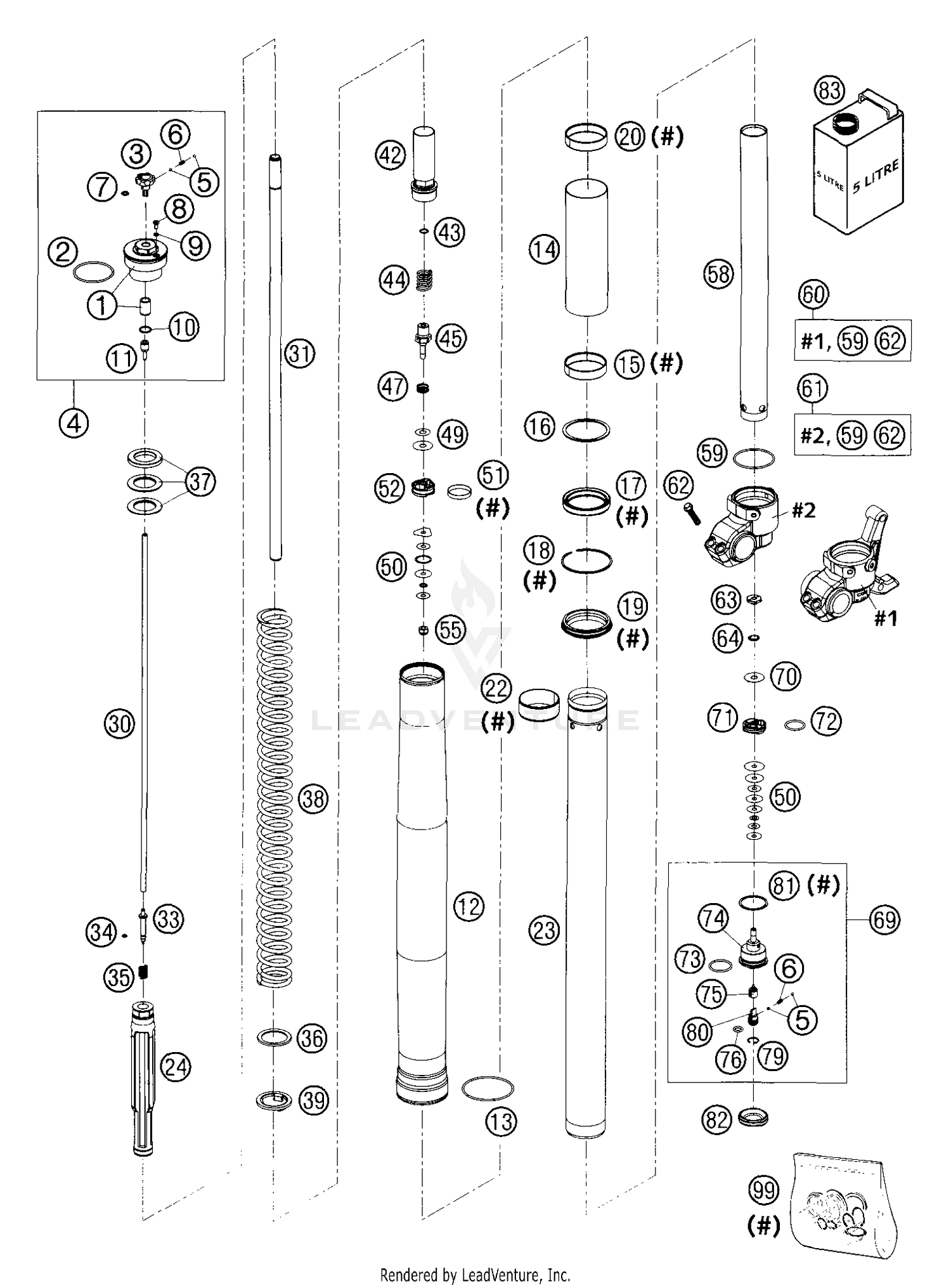

Fork Legs Wp Usd 48 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SREW CAP+BUSH M51X1,5
48600020S
|
$47.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-ring 45x2 NBR70 siliconized
46810340
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
Adjuster rebound
48600018
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW CAP M51X1,5 CPL.
48600020S1
|
$118.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
Steel ball d3
40540603
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
Spring (1,7) l7,9
48600028
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
O-ring 6x1,5 NBR70
48600044
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Cross flat head screw M4x6
48600058
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-ring 3,7x1,6 NBR70
48600009
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-ring 12x1,5 NBR70
48600043
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
Tube tap d4x25
48600019
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
OUTER TUBE L=577MM D=54/60MM
48600244
|
$556.41 | ||
|
Available to order. Add to View Price |
|||
|
#13
Round-wire snap ring 48x2
48600016
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER 50,95X0,85X161,5
48600245
|
$31.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEADING BUSH 48X52X12+8MM
48600205
Superseded by 48600429S
|
$22.43 | ||
|
Available to order. Add to View Price |
|||
|
#16
Supportwasher 50x57,6x1,5
48600013
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL RING 48X57,8X9,5
48600344
|
|||
|
Unavailable |
|||
|
#18
Snap ring SB58x1,5 acc drawing
48600070
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
DUST STRIPPER D=48
48600345
|
|||
|
Unavailable |
|||
|
#20
Guide bushing 48x51x12
48600236
|
$27.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
Guide bushing 47x49x20
48600204
Superseded by 48601008
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#23
INNER TUBE D=48 L=595 2003
48600240
|
$332.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HYDR.STOP L=200MM D=31,9 CPL
48600241S
Superseded by 48600241S1
|
$46.56 | ||
|
Available to order. Add to View Price |
|||
|
#30
ADJUSTMENT TUBE L=517MM
48600092
|
$65.89 | ||
|
Available to order. Add to View Price |
|||
|
#31
PISTONROD D=14 L=551 M11X1
48600251
|
$90.04 | ||
|
Available to order. Add to View Price |
|||
|
#33
Needle 6x42,6 rebound
48600189
|
$40.80 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-ring 3x1,5 NBR70
48600046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Spring (7,2) 4-23 needle
48600033
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#36
Washer 32x42x2,5 plastic
48600113
|
$13.08 | ||
|
Available to order. Add to View Price |
|||
|
#37
Preload bush 42x26,5x2,5
48600036
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#37
Preload bush 26,5x42x5
48600037
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#37
Preload bush 26,5x42x1,5
48600053
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 3,6N/MM SET
91410011S
|
$171.59 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 3,8N/MM SET D=4,9MM
91410012S
|
$171.59 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,0N/MM SET D=5,0MM
91410013S
|
$266.69 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,2N/MM SET D=5,0MM
91410014S
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,4N/MM SET D=5,1MM
91410015S
|
$171.59 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,6N/MM SET
91410016S
|
$171.59 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,8N/MM SET
91410017S
|
$176.87 | ||
|
Available to order. Add to View Price |
|||
|
#39
Spring retainer 33,5x43x3
48600021
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#42
Screw sleeve M29,3x1 cpl.
48600196S
|
$98.89 | ||
|
Available to order. Add to View Price |
|||
|
#43
O-ring 8x1,25 NBR70 siliconized
48600239
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
REBOUND SPRING D=15MM L=34,5MM
48600192
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#45
Tap 6x45 rebound
48600203
|
$10.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
Spring (11,7) 1,5-8 valve
35480377
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#49
CHECK VALVE 8X24X0,1
48600062
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#49
Shim 8x22x0,10
48600216
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
Shim 6x24x0,10
48600063
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Shim 6x22x0,10
48600064
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
Shim 6x20x0,10
48600065
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Shim 6x24x0,10 delta
48600116
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
PRESSURE-RING 20X16,25X0,20
48600212
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#50
Shim 6x14x0,10
40540401
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
Shim 6x16x0,10
40540402
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Shim 6x18x0,10
40540403
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Shim 6x16x0,25
40540414
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Shim 6x18x0,25
40540415
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
Shim 6x9,5x0,30
40540450
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#51
Pistonring 26x28x5
48600060
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#52
Piston 6,05x27,65x12 rebound
48600042
|
$14.19 | ||
|
Available to order. Add to View Price |
|||
|
#55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#58
TUBE 29,3X1X390 D=8,5MM
48600081
|
$186.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
O-ring 46x2 NBR70 siliconized yellow
48600048
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#60
AXLE CLAMP L/S CPL.
48600237S
Superseded by 48600860S
|
$450.54 | ||
|
Available to order. Add to View Price |
|||
|
#61
AXLE CLAMP R/S CPL. USD48 04
48600238S
|
$348.90 | ||
|
Available to order. Add to View Price |
|||
|
#62
HH collar screw M8x30
0015080303
Superseded by 0025080306
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#63
Nut valve M6x0,5 h6,5 WAF17
48600163
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#64
Spring (8,5) l6,5 valve
48600202
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#69
Compression
48600152S1
Superseded by 48600586S3
|
$44.32 | ||
|
Available to order. Add to View Price |
|||
|
#70
Shim 8x24x0,40
48600061
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#71
Piston 6x27,8x9 compression
48600047
|
$11.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#72
O-ring 21x2 NBR70
46811499
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#73
O-ring 24x2 NBR70
35480320
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#74
Compression
48600152
Superseded by 48600586S3
|
$44.32 | ||
|
Unavailable |
|||
|
#75
Needle 10x11,6 compression
48600190
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#76
O-ring 8x2 NBR70
48600049
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#79
Round-wire snap ring 12x1 DIN7993 A2
48600051
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#80
Adjustment screw slot compression
48600034
|
$8.86 | ||
|
Available to order. Add to View Price |
|||
|
#81
Copper disc 29,5x33,5x1
48600004
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#82
Rubber cap 35x10 NBR80
48600141
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#83
FORK OIL SAE 5
48600211S1
|
|||
|
Unavailable |
|||
|
#99
Repair kit gasket 48mm (4860 MXMA)
R14007
Superseded by RP10045T
|
$124.95 | ||
|
Available to order. Add to View Price |
|||
