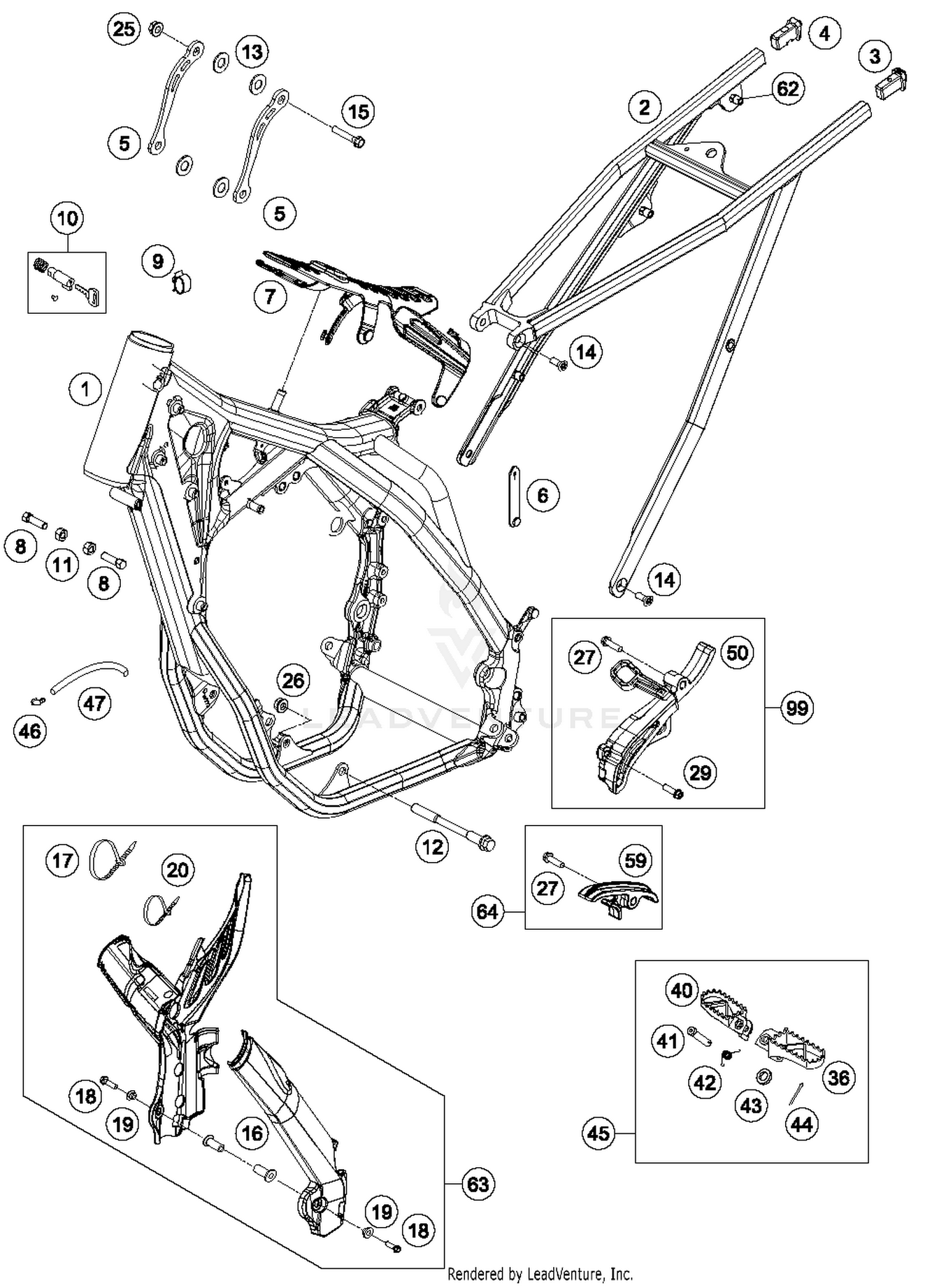

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME ''775N1'' ANTHRACITE
77503101100BE
|
$1,703.72 | ||
|
Available to order. Add to View Price |
|||
|
#2
SUB FRAME SX
77203002000
|
$460.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
SUB FRAME APPLICATION LEFT
78103002010
|
$26.39 | ||
|
Available to order. Add to View Price |
|||
|
#4
SUB FRAME APPLICATION RIGHT
78103002020
|
$23.97 | ||
|
Available to order. Add to View Price |
|||
|
#5
ENGINE BRACE 14
77503113000
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER CABLE TIE 75MM 03
60011093075
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
TANK REST RUBBER
77207012000
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPECIAL SCREW M8X26 WS=10
59001037000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WIRING HOLDER 16MM
57013072100
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Steering lock
78003035000
Superseded by 78003035100
|
$24.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
engine brac.scr. M10x115
77203014000
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER 8,5X18X1 INOX
77003013050
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HH COLLAR SCREW M8X44 WS13
56530079000S
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BLIND PLUG-IN NUT M5 WN 22A 03
54803092050
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
COU.SUNK SCR. AH ISO7380 M5X25
0738050250
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BUSH F. FRAME PROTECTION 03
54803092060
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
hex nut EN 1661 M8 WS13
06923080003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
HH collar screw M8x30
0025080306
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
HH collar screw M6x25 TX30
0025060256
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
FOOTREST L/S 08
78003040050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#40
FOOTREST R/S 08
78003041050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#42
FOOTREST SPRING L/S & R/S
54603041000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#43
washer DIN 125 A 10.5
0125100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
FOOTREST L/S + R/S CPL. 09
78003040033
|
$136.50 | ||
|
Available to order. Add to View Price |
|||
|
#46
ANGLE PIECE '97
50303089000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#47
PVC-HOSE 7X10 PER METER
55007016001
|
$7.14 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
SPROCKET COVER 350 SX-F
77203096000
|
$18.36 | ||
|
Available to order. Add to View Price |
|||
|
#59
CHAIN SLIDER LOWER PART CPL.
77203053000
|
$10.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#62
BLIND RIVET NUT EM6-60LF/HX
77303139000
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#63
PLASTIC FRAME PROTECTION SET
77203094000
|
$61.15 | ||
|
Unavailable |
|||
|
#64
CHAIN SLIDING KIT BELOW CPL.11
77203053010
|
$22.10 | ||
|
Available to order. Add to View Price |
|||
|
#99
SPROCKET COVER KIT
77203096010
|
$24.08 | ||
|
Available to order. Add to View Price |
|||
