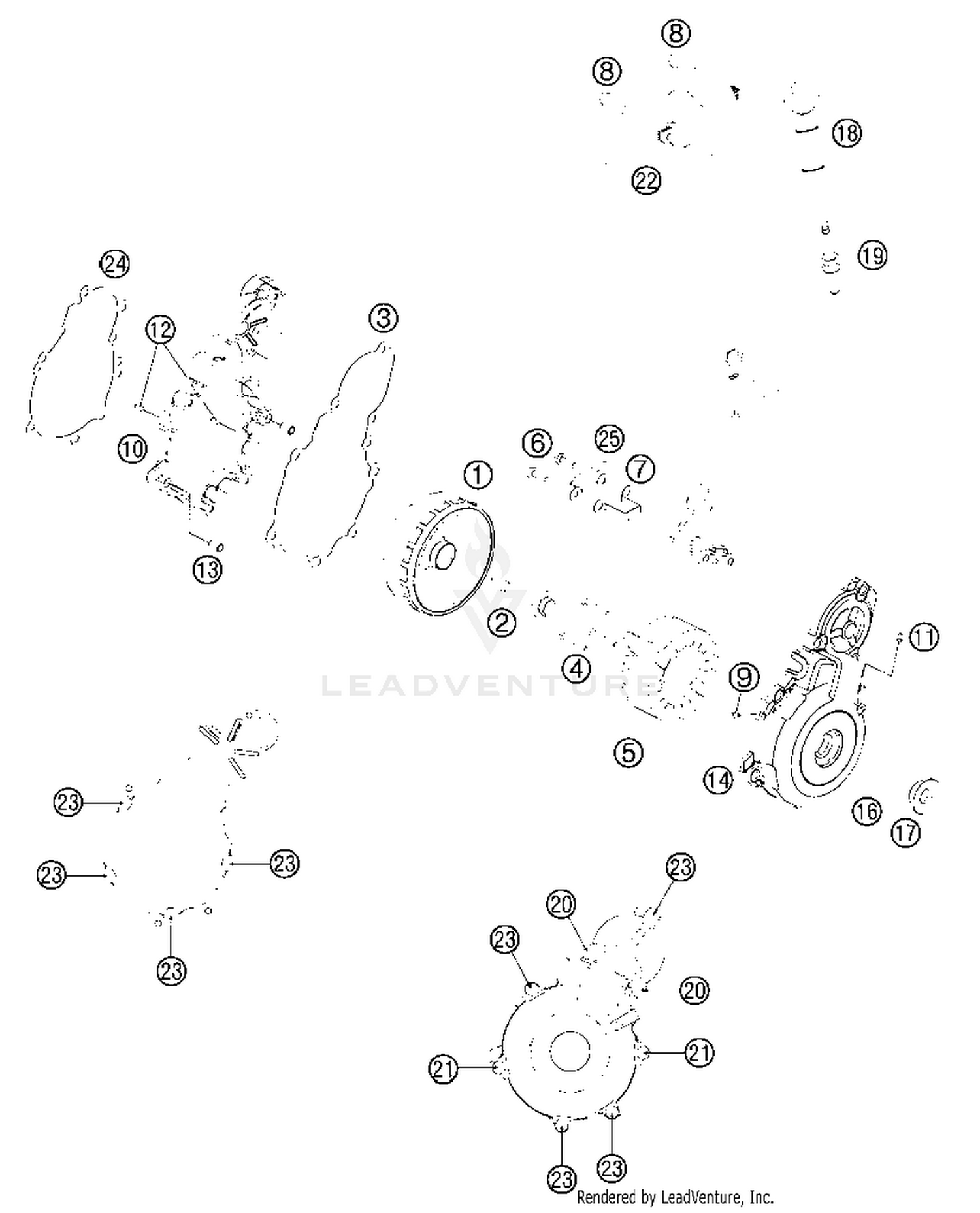

Ignition System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROTOR
77539005000
|
$495.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
FLYWHEEL SCREW
77339010100
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COVER GASKET
77530042000
|
$16.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
AH SCREW DIN0912-M 5X30
0912050303
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
STATOR
77539004000
|
$265.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
HH collar screw M5x16 TX30
0025050166
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CABLE TAB WASHER EXC
77530002050
|
$18.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR SCREW M6X18 ISA30
0026060186
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL JET ''60'' M4
80030058060
|
$13.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
IGNITION COVER INSIDE
7753000200015
|
$94.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
THREAD PIN DIN 913 M5X6
0913050063
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Dowel, 6x8x11.5
59030023000
Superseded by 59030023100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
IGNITION COVER
7753001200015
|
$180.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
o-ring 24.00x2.50 Viton
07700240251
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW PLUG M24X1,5
7723000206030
Superseded by 7723000216030
|
$43.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPARK PLUG CONNECTOR
77239090000
|
$39.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG NGK LMAR9AI - 8
77239093000
|
$26.72 | ||
|
Unavailable |
|||
|
#20
HH collar screw M6x50 TX30
0025060506
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
HH collar screw M6x30 TX30
0025060306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
IGNITIONCOIL IG3826 KOKUSAN'96
58439006000
|
$88.76 | ||
|
Available to order. Add to View Price |
|||
|
#23
HH collar screw M6x25 TX30
0025060256
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
IGNITION COVER GASKET
77530040000
|
$15.61 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BRACKET
77530002060
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
