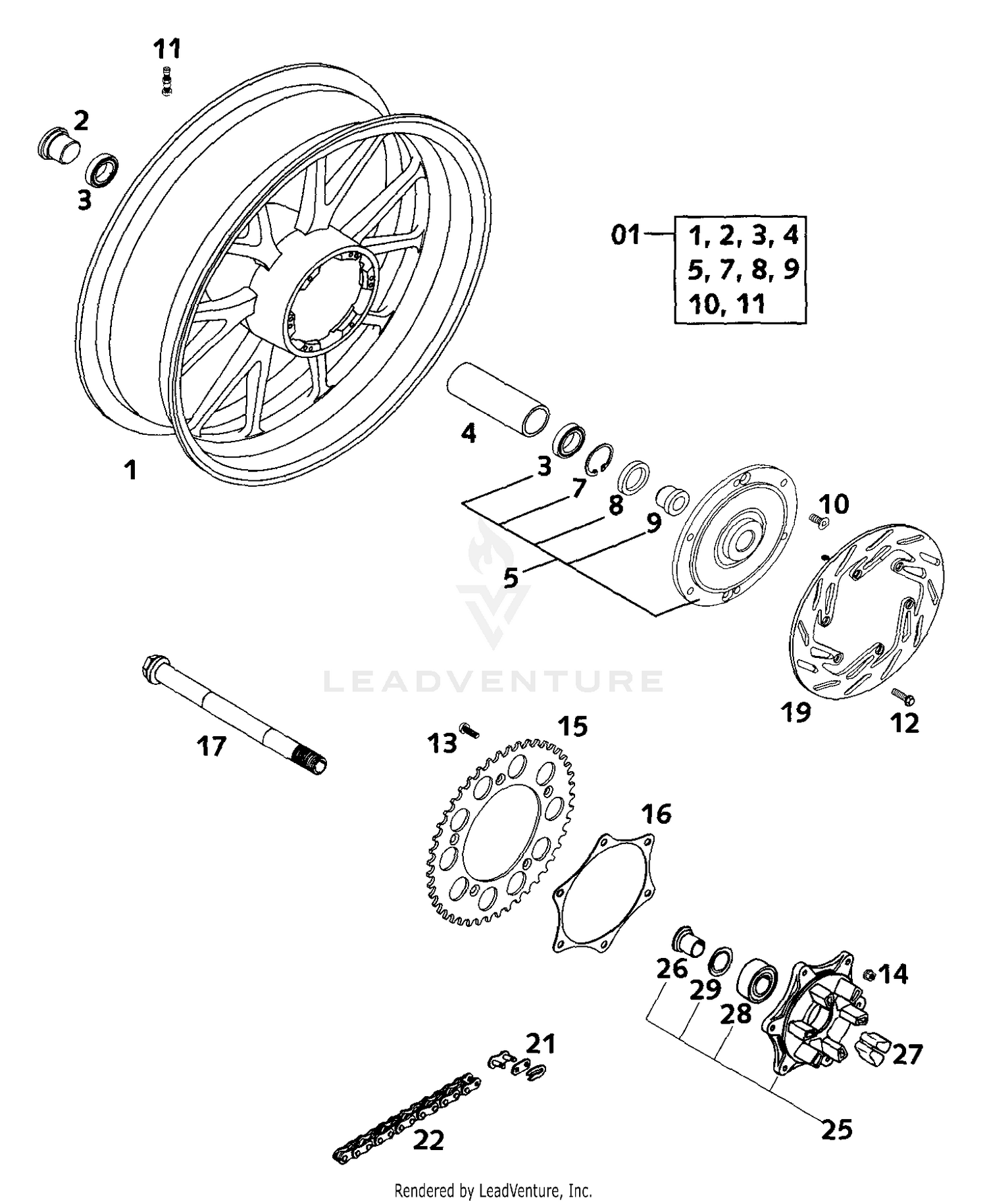

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#01
% RR WHEEL CPL.4,25X17''DUKE'99
58710068000
|
$554.45 | ||
|
Available to order. Add to View Price |
|||
|
#
REAR WHEEL CPL.4,25X17" DUKE'99 (BLACK)
5871006800030
|
|||
|
Unavailable |
|||
|
#2
BUSHING FOR REAR DAMPED HUB
54610416300
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
GR.BALL BEAR. 6205-2RSHC3HMTF7
0625062052
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING SPACER TUBE L=98,5MM
54610411100
|
|||
|
Unavailable |
|||
|
#5
BRAKEDISC ADAPTER REAR DUKE'99
58710061000
|
|||
|
Unavailable |
|||
|
#7
CIRCLIP DIN0472-52X2
0472052200
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT SEAL RING 32X52X7 B
0760325272
|
$19.46 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSHING FOR HUB 08
54610016000
Superseded by 78010016000
|
$38.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
FLAT HEAD SCREW DIN7991-M 6X12
0991060126
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE CPL. BREMBO DUKE 2003
58709077044
Superseded by 58709076000
|
$10.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
COUNTER-SUNK SCREW ISA45 M8X26
54510052100
Superseded by 0019080266S
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SELF LOCKING NUT M8 10.9
54310086200
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
REAR SPROCKET 38-T
58310051038
|
$76.44 | ||
|
Unavailable |
|||
|
#15
REAR SPROCKET 40-T
58310151040
|
$74.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
REAR SPROCKET 42-T
58310051042
|
$76.44 | ||
|
Unavailable |
|||
|
#15
CORONA 45 T
58310151045
Superseded by 7771015104501
|
$87.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SPROCKET ADAPTER 1,5MM NIRO
58710049000
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
WHEEL SPINDLE REAR L=232MM '94
58310085000
|
$46.88 | ||
|
Available to order. Add to View Price |
|||
|
#19
REAR BRAKE DISK 220MM COUNTERS
58010060600
|
$215.92 | ||
|
Available to order. Add to View Price |
|||
|
#21
RIVETING LINK FOR 78010167118
50010066100
Superseded by 78010266100
|
$15.61 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-R.CHAIN 5/8X1/4"/M W.LINK
50010065101
|
|||
|
Unavailable |
|||
|
#22
O-RING CHAIN 5/8X1/4" DID (118 ROLLS)
50010065100
|
|||
|
Unavailable |
|||
|
#26
BUSH. F.SPROCKETSUPPORT L=25MM
54610417300
|
$20.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
RUBBER DAMPING BLOCK '91
54610459000
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
GR. BALL BEARING 3205B-2RSRTNG
0625032057
|
$89.96 | ||
|
Available to order. Add to View Price |
|||
|
#29
SEAL WASHER 3205 AV
54610018000
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
