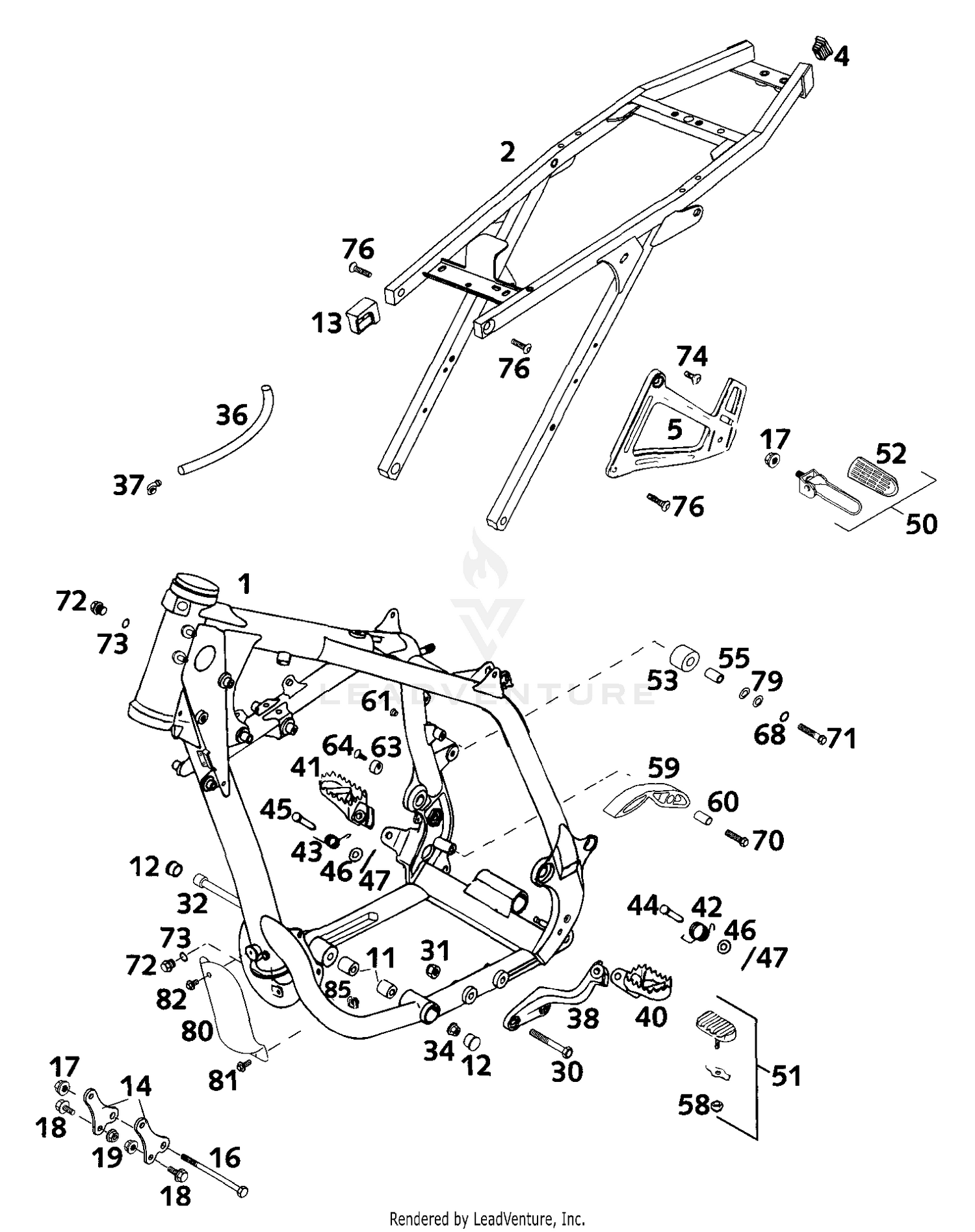

Frame, Sub Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME CPL. BLACK DUKE 2000
58703001044
|
$1,313.50 | ||
|
Available to order. Add to View Price |
|||
|
#2
SUB FRAME CPL. BLACK DUKE '99
58703002000
|
|||
|
Unavailable |
|||
|
#4
PLUG 12 X 17 MM
58303002090
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
FOOTREST BRACKET L/S BLACK
5810300320030
|
$83.90 | ||
|
Available to order. Add to View Price |
|||
|
#
FOOTREST BRACKET R/S BLACK
5810300420030
|
$70.39 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER ROLLER 10,3X20X22
58003012000
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
PVC CAP D=22MM
71001012100
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
TANK SUPPORT '93
58307015000
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
ENGINE SUPPORT AGW '94
58303055000
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
HH SCREW DIN0931-M10X110
0931101103
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#17
flanged hex nut DIN 6927 M10 WS15
49009082000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HH COLLAR SCREW M 8X16 WS=13
49109481052
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SELF LOCKING NUT M8 10.9
54310086200
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
HH SCREW DIN0931-M10X60
0931100603
|
|||
|
Unavailable |
|||
|
#31
SELF LOCKING NUT DIN0985-M10
0985100003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
AH SCREW DIN0912-M10X160
0912101603
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#34
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
PVC-HOSE 7X10 PER METER
55007016001
|
$7.14 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
ANGLE PIECE '97
50303089000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#38
FOOTREST BRACKET L/S BLACK
5830303800030
|
$44.07 | ||
|
Available to order. Add to View Price |
|||
|
#40
FOOTREST L/S BLACK
5830304000030
|
$28.09 | ||
|
Available to order. Add to View Price |
|||
|
#41
FOOTREST R/S BLACK
5460314000030
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
FOOTREST SPRING L/S '93
58303041000
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#43
FOOTREST SPRING L/S & R/S
54603041000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT FOR FOOTREST
58303044000
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIN FOR FOOT PED 51.5X9.8 MM
54603044000
Superseded by 54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#46
washer DIN 125 A 10.5
0125100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
FOOTREST REAR L/S CPL. '95
58303050044
|
$108.45 | ||
|
Available to order. Add to View Price |
|||
|
#
FOOT REST REAR R/S CPL.'95
58303150044
|
$106.56 | ||
|
Available to order. Add to View Price |
|||
|
#51
FOOTREST RUBBER CPL. '94
58303045044
|
$21.22 | ||
|
Available to order. Add to View Price |
|||
|
#52
FOOTREST RUBBER L/S&R/S DUKE95
58303051000
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#53
CHAIN ROLL 12X29X22,5 '98
58403060000
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#55
BUSH CHAIN ROLL 8X12X23 '98
58403060065
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
SELF LOCK. NUT DIN0985-M 6
0985060003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#59
CHAIN SLIDING PIECE BELOW '97
51103053000
|
$10.77 | ||
|
Available to order. Add to View Price |
|||
|
#60
BUSHING 8,2X10X20
51103053051
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
PLASTIC CAP SFL10
54403135000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
BRAKE LEVER STOP '93
58303063000
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#64
FLAT HEAD DIN7991-M 6X20
0991060203
Superseded by 0991060202
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#68
LOCK WASHER 8MM
36003014000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
HH collar screw M8x30
0015080303
Superseded by 0025080306
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#71
HH COLLAR SCREW M 8X45 WS=10
0015080453
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
PLUG DIN0910-M 10X1
0910100003
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
CU-SEAL RING 10 X 14 X 1,5
58038022900
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#74
FLAT HEAD SCREW M. ISA45 M8X20
54610052000
Superseded by 0019080206S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#76
COUNTER-SUNK SCREW ISA45 M8X26
54510052100
Superseded by 0019080266S
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#79
washer DIN 125 A -8.4
0125080003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
COVER OIL FILTER '94
58303010000
|
$34.11 | ||
|
Available to order. Add to View Price |
|||
|
#81
HH collar screw M6x15 TX30
0014060153
Superseded by 0024060156
|
$3.99 | ||
|
Unavailable |
|||
|
#82
HH COLLAR SCREW M6X10 TX30
0014060103
Superseded by 0024060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#85
clip nut M6
50235033300
Superseded by 54603048100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
