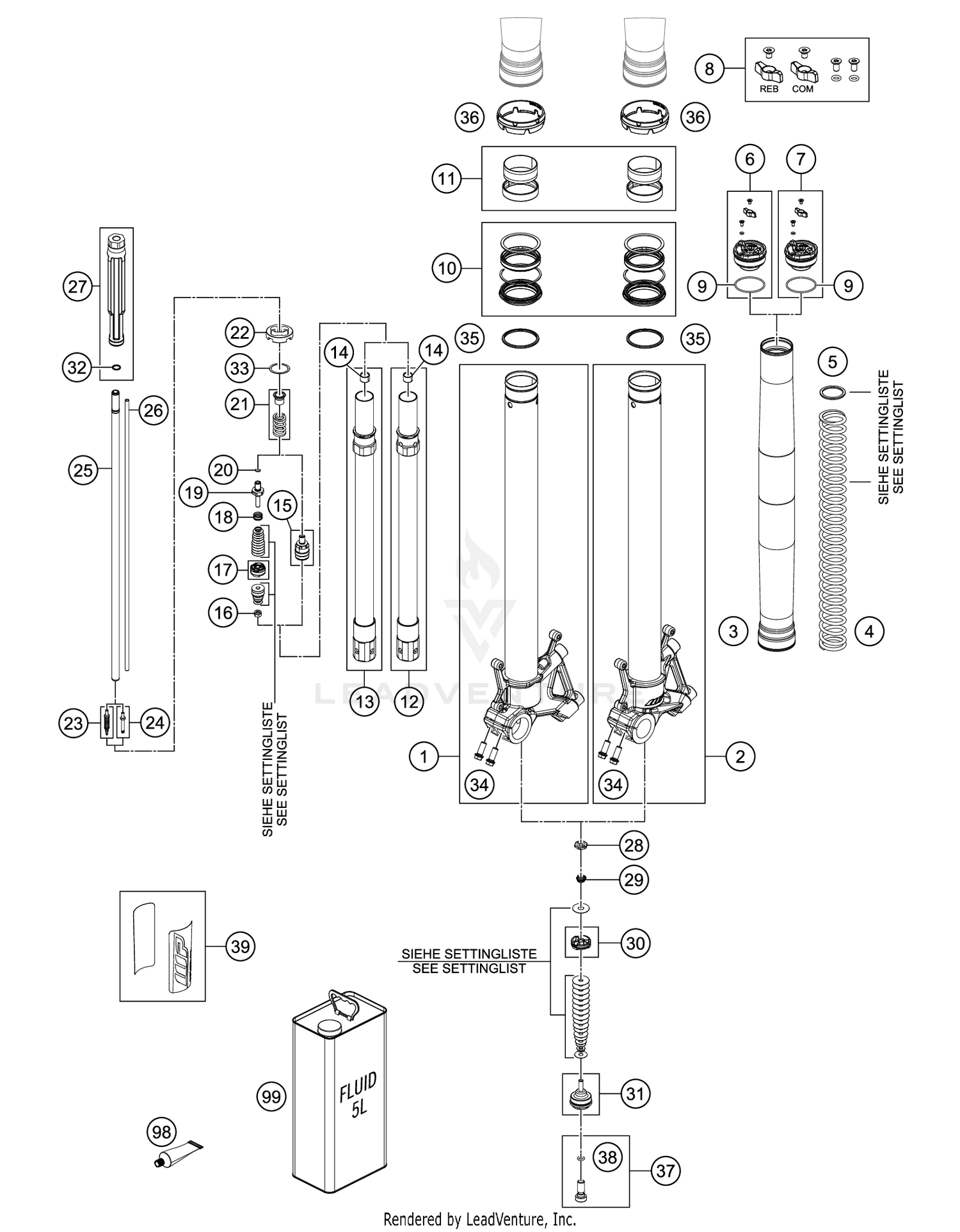

Front Fork Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
axle clamp right d48 25mm cpl
48601952S1
|
$561.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
axle clamp left d48 25mm cpl.
48601951S1
|
$568.14 | ||
|
Available to order. Add to View Price |
|||
|
#3
Outer tube L567 D54 / D60
48601794
|
$328.34 | ||
|
Available to order. Add to View Price |
|||
|
#4
Mainspring (44) 6,7-460 fork
91410142
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer 35x43x1,5 plastic
48600458
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer 35x43x2,5 plastic
48600456
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
Preload bush 35x43x3,5
48600457
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
screw cap M51x1,5 rebound cpl.
48602028S4
|
$199.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
screw cap M51x1.5 compression cpl.
48602028S3
|
$199.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
Adjuster Kit screw cap
RP10021
Superseded by RP10021T
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-ring 46x2 NBR70 siliconized yellow
48600048
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
Seal kit 48mm SKF black
RP10012
Superseded by RP10048T
|
$78.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Guide bushing set fork 48mm
R14047
Superseded by R14047T
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Tube L350 with screwsleeve and hole
48600763S3
|
$153.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
Tube L350 with screwsleeve
48600763S4
|
$158.06 | ||
|
Available to order. Add to View Price |
|||
|
#14
Guide bushing 12x14x10
48600430
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
Tap compression cpl.
48601843S2
|
$57.74 | ||
|
Available to order. Add to View Price |
|||
|
#16
Nut M6x0,5 h6,5 WAF10 rebound
40540486
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#17
Midvalve piston assembly d23
48602002S
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#18
Spring (11,7) 1,5-8 valve
35480377
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#19
Tap 6x46 rebound
48600576
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
O-ring 6x1,2 NBR70
48600299
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
rebound spring C60 cpl
48601929S
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#22
spring support ring
48601922
|
$20.23 | ||
|
Available to order. Add to View Price |
|||
|
#23
Needle 4,5x43,6 cpl.
48601096S
|
$6.69 | ||
|
Unavailable |
|||
|
#24
Needle 4,5x38,2 cpl.
48601558S
|
$13.63 | ||
|
Available to order. Add to View Price |
|||
|
#25
Piston rod 12x501
48601923
|
$48.50 | ||
|
Available to order. Add to View Price |
|||
|
#26
Adjuster tube L=471.5
48601924
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#27
Stop 12,4x31,9x200,3 kpl.
48601556S
Superseded by S228700003S0100
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
Nut valve M6x0,5 h6,5 WAF17
48600163
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#29
Spring (8,5) l6,5 valve
48600202
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#30
Piston 6x27,3x9 compression cpl.
48601934S
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#31
Tap 6x42,5 base valve
48601921
|
$27.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-ring 11x2,5 NBR70 PTFE yellow
04500003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
Shim 27,5x33x0,3
48601702
|
$12.64 | ||
|
Available to order. Add to View Price |
|||
|
#34
HH collar screw M8x20
0025080206
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Stroke indicator 48mm red
48602007
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#36
Fork protection ring 60,1mm
48601986
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#37
RingISK screw M10x25 with o-ring
48601976S
|
$18.91 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-ring 7x2 NBR70
35480085
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#39
sticker Xplor OC 100x46
52000281SET
|
$58.95 | ||
|
Available to order. Add to View Price |
|||
|
#98
Fuchs grease IPR (250g)
T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#99
Fork Fluid Viscosity 4.0 5L
48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
