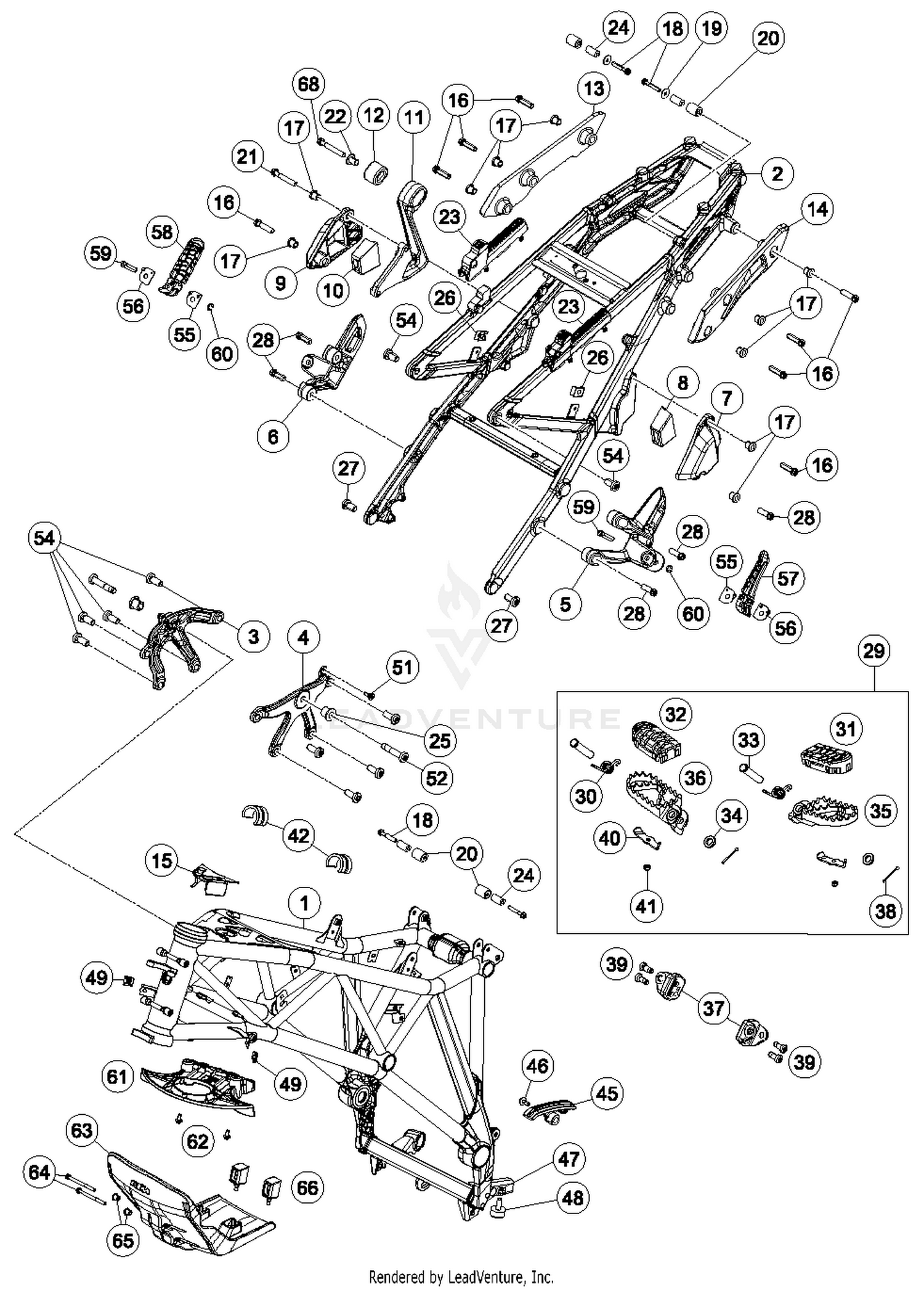

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME ''603 OA'' ORANGE
6030300120004
|
$2,582.46 | ||
|
Available to order. Add to View Price |
|||
|
#2
SUB FRAME
6030300200033
|
$1,175.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
ENGINE SUPPORT R/S BLACK
6030300600033S
|
$126.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
ENGINE SUPPORTL/S BLACK
6030300500033S
|
$126.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
FOOTR. SUP. REAR L/S BLACK
6030304800033S
|
$157.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
FOOTR. SUP. REAR R/S BLACK
6030304900033S
|
$149.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUITCASE HOOK L/S
60312010050
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPING RUBBER SUITCASE HOOK
60312010060
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
SUITCASE HOOK R/S
60312011050
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPING RUBBER SUITCASE HOOK
60312011060
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
EXHAUST BRACKET
6030508400033S
|
$123.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPING RUBBER
61305068000
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
CASE BAR R/S
60312021250
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
CASE BAR L/S
60312020250
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
STEARING HEAD COVER
60303003010
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
HH collar screw M8x35 TX40
0025080356
|
$4.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SPACER BUSHING 13X17X8,2
60303002058
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
HH collar screw M6x30 TX30
0025060306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER DIN9021-A 6,4
0021060003
|
$2.99 | ||
|
Unavailable |
|||
|
#20
RUBBER SEAT-CONTACT SURFACE
60307048000
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
HH collar screw M8x50 TX40
0025080506
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Bushing
60305069000
Superseded by 60305069100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE RUBBER SEAT
60307040041
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSH 6.2X12X21.5
60307049000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPACER BUSH ENGINE SUPPORT
60303007000
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#26
clip nut M6
54603048100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
AH-COLLAR SCREW M10X20 ISA45
0035100209
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#28
HH collar screw M8x25
0025080256
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
FOOTPEG LS+RS CPL.
60003040133
|
$173.02 | ||
|
Available to order. Add to View Price |
|||
|
#30
FOOTREST SPRING L/S & R/S
54603041000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#31
FOOTREST RUBBER FRONT L/S 03
60003040010
|
$26.06 | ||
|
Available to order. Add to View Price |
|||
|
#32
FOOTREST RUBBER FRONT R/S 03
60003041010
|
$26.06 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#34
washer DIN 125 A 10.5
0125100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
FOOTREST L/S 08
59003040250
Superseded by 78003040050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#36
FOOTREST R/S 08
59003041250
Superseded by 78003041050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#37
FOOTREST MOUNTING
6030310109533S
|
$34.86 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
HH collar screw M8x16 TX40 SL
0025080166S
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
CLOSING PANEL FRONT L/S R/S 03
60003044010
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#41
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPACER FUEL TANK 05
61007014000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#45
CHAIN GUIDE
60303070000
|
$12.20 | ||
|
Available to order. Add to View Price |
|||
|
#46
HH collar screw M6x15 TX30
0024060156
|
$3.99 | ||
|
Unavailable |
|||
|
#47
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
BUMP RUBBER M8X25MM
58303070100
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#49
RANGE CHANGE METAL NUT M5
54603048200
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#51
special screw M5x12
69008021160
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
AH-COLLAR SCREW M10X50 ISA45
0035100509S
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#54
SHCS M10x24 TX45
0035100249
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
ENGAGE PANEL FOOTREST L/S 03
60003152000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#56
ENGAGE PANEL FOOTREST R/S 03
60003052000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#57
FOOTREST CPL. L/S REAR 03
60003050000
|
$72.26 | ||
|
Available to order. Add to View Price |
|||
|
#58
FOOTREST CPL. R/S REAR 03
60003051000
|
$72.81 | ||
|
Available to order. Add to View Price |
|||
|
#59
footrest bolt, rear
60003044100
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#60
retaining washer DIN 6799 - 6
0799060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#61
TRIPLECLAMP-FACEPLATE BELOW
60308024000
Superseded by 60308024200
|
$19.46 | ||
|
Available to order. Add to View Price |
|||
|
#62
HH collar screw M6x13 TX30
0024060136
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#63
SKID PLATE ADV
6030319000030
|
$80.40 | ||
|
Available to order. Add to View Price |
|||
|
#64
HH collar screw M6x40 TX30
0025060406
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#65
COLLAR BUSHING 6,3X8X13X9,5
45239060050
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#66
VIBRATION DAMPER 03
60003096000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
