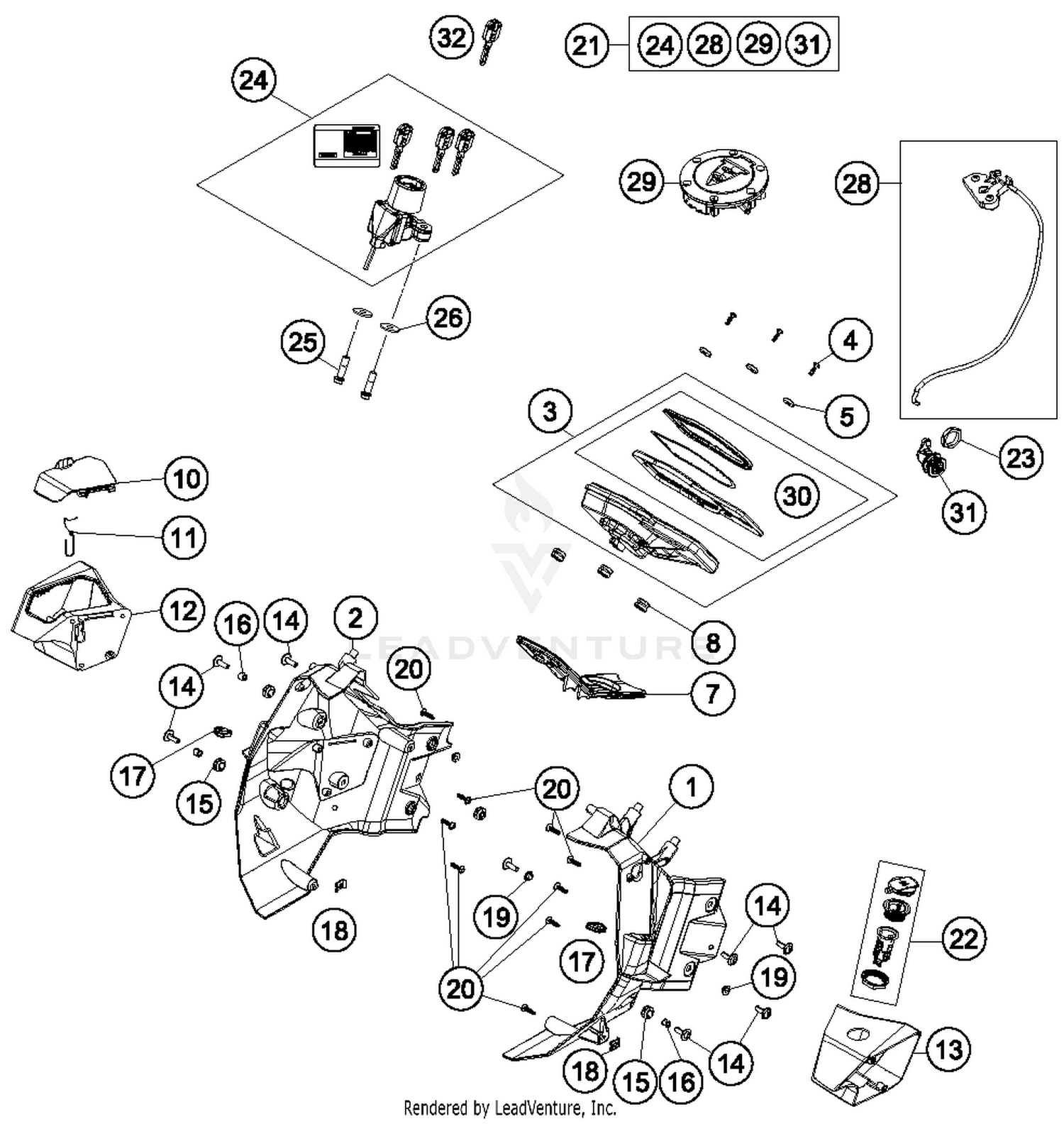

Instruments / Locksystem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COCKPIT SUPPORT L/S
60314010000
|
$65.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
COCKPIT SUPPORT R/S
60314011000
|
$65.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPEEDOMETER
60414069000
|
$1,001.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW FOR PLASTIC PT K50X14T25
0081250141
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPECIAL WASHER 4.5X16
60308045000
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
IGNITION LOCK CAP
60314012000
|
$18.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMP. COMPONENT SPEEDOMETER
61314069051
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
STORAGE BOX COVER
60314079000
|
$6.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
STORAGE BOX SPRING
60314080000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
STORAGE BOX
60314078000
Superseded by 60314078100
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
COCKPIT COVER LEFT
60314070000
Superseded by 60314070100
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPECIAL SCREW M6X18 ISA30 08
69014017000
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
rubber grommet 9x11x16x8.5 mm
60006001022
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Bushing 6.1x9.2x7.5
69014014000
Superseded by 00185006008U0
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER SLEEVE
60308008057
|
$9.34 | ||
|
Available to order. Add to View Price |
|||
|
#18
clip nut M5
54603048400
Superseded by 69008021080
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
bushing chain protection
69004060050
Superseded by 69004060150
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW FOR PLASTIC K50X18 T20
0081050181
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Locks set with key GKS cpl.
60311066244
Superseded by 60311066544
|
$766.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT SEAT LOCK M22X1,5
69007050050
|
$12.64 | ||
|
Available to order. Add to View Price |
|||
|
#24
IGNITION LOCK
60311066100
|
$693.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
HH COLLAR SCREW M8X30 TX40
0025080306S
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER DIN9021-A 8,4
0021080003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAT LOCK CPL.
60307050000
|
$40.80 | ||
|
Available to order. Add to View Price |
|||
|
#29
TANK CAP
60307008000
Superseded by 60307008100
|
$539.21 | ||
|
Available to order. Add to View Price |
|||
|
#30
Frame cpl. without screen
60314069050
|
$212.84 | ||
|
Available to order. Add to View Price |
|||
|
#31
LOCK CYLINDER SEAT LOCK
60307050020
|
$171.48 | ||
|
Available to order. Add to View Price |
|||
|
#32
KTM ignition key
69011067000
Superseded by 60411067000
|
$211.74 | ||
|
Available to order. Add to View Price |
|||
