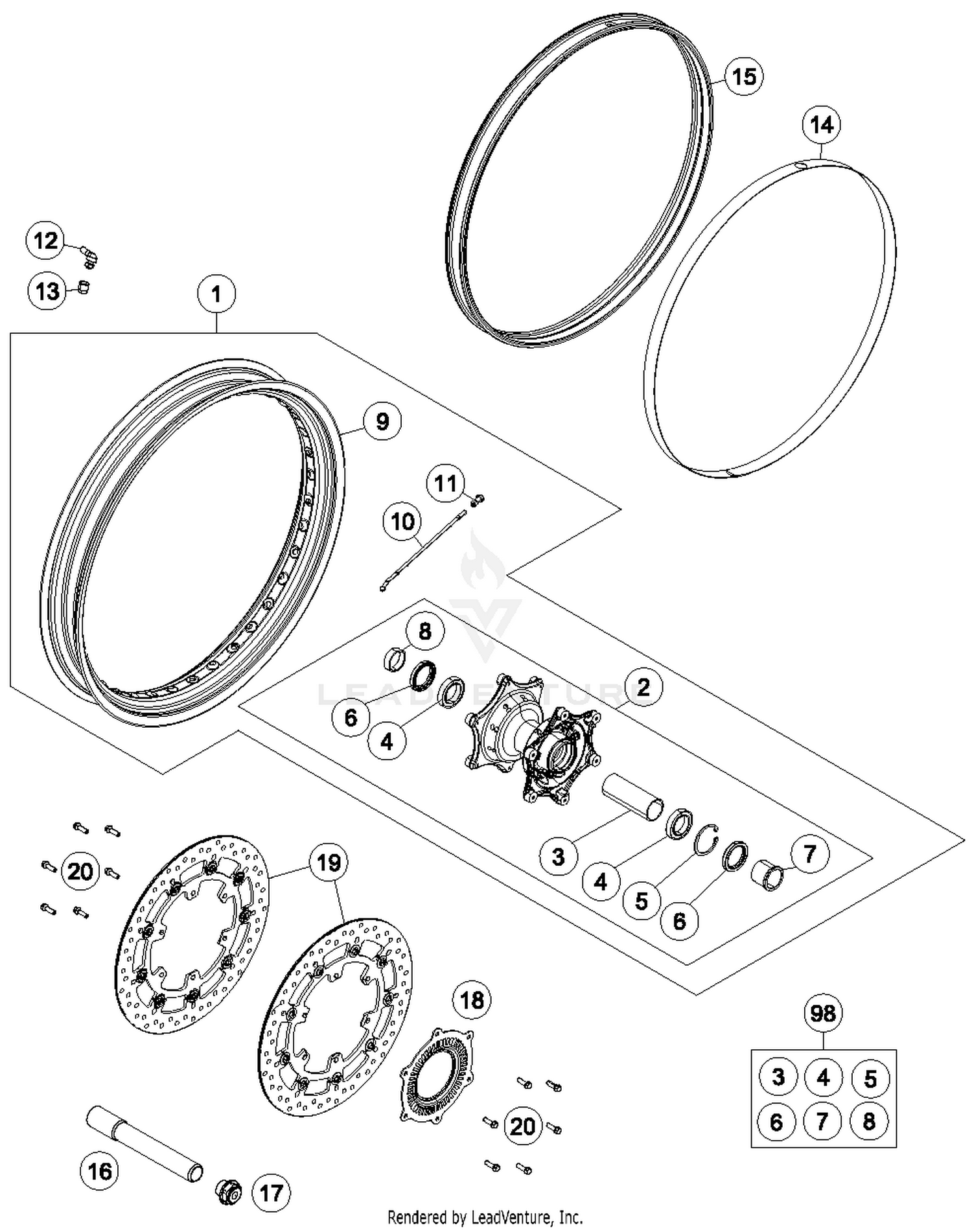

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT WHEEL CPL. 2.5X21''
6030900124430
|
$1,379.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
FRONT HUB CPL.
6030901014433
|
$505.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSHING SPACER TUBE FRONT
60309011000
|
$21.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
GR.BALL BEAR.6906 DDU2CG23S6NM
0625069068
|
$40.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP DIN0472-47X1,75
0472047175
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT SEAL RING 35X47X7 TC
0760354771
|
$10.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SPACER BUSH. FRONT WHEEL L/S
60309012100
|
$22.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER BUSH. FR. WHEEL R/S 03
60009013000
|
$17.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
Rim 2.5x21''TL.bl.w.sticker
6030917010033A
|
$532.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
Spoke nipple Quadrax M5
60310072100
Superseded by 60310072200
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPOKE 5/4.37/M5
60309071000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
Valve body cmpl.
60309176000
Superseded by 60309276000
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT AIR PRESSURE SENSOR
60312033050
|
$16.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
RIM BAND 21''
60309073100
|
$44.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET RUBBER 2.5''X21''
60309177000
|
$60.82 | ||
|
Available to order. Add to View Price |
|||
|
#16
AXLE FRONT
60309081000
|
$120.66 | ||
|
Available to order. Add to View Price |
|||
|
#17
steering head screw
6900103600001
Superseded by 6900113600001
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#18
SENSOR GEAR ABS
60342020000
|
$32.88 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRAKE DISC FRONT D=320X4,5
6030906000030
|
$338.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPECIAL SCREW M6X19 WS=8 10.9
59009062019
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#98
FRONT WHEEL REP. KIT ADV. 1050
60609015000
|
$138.81 | ||
|
Available to order. Add to View Price |
|||
