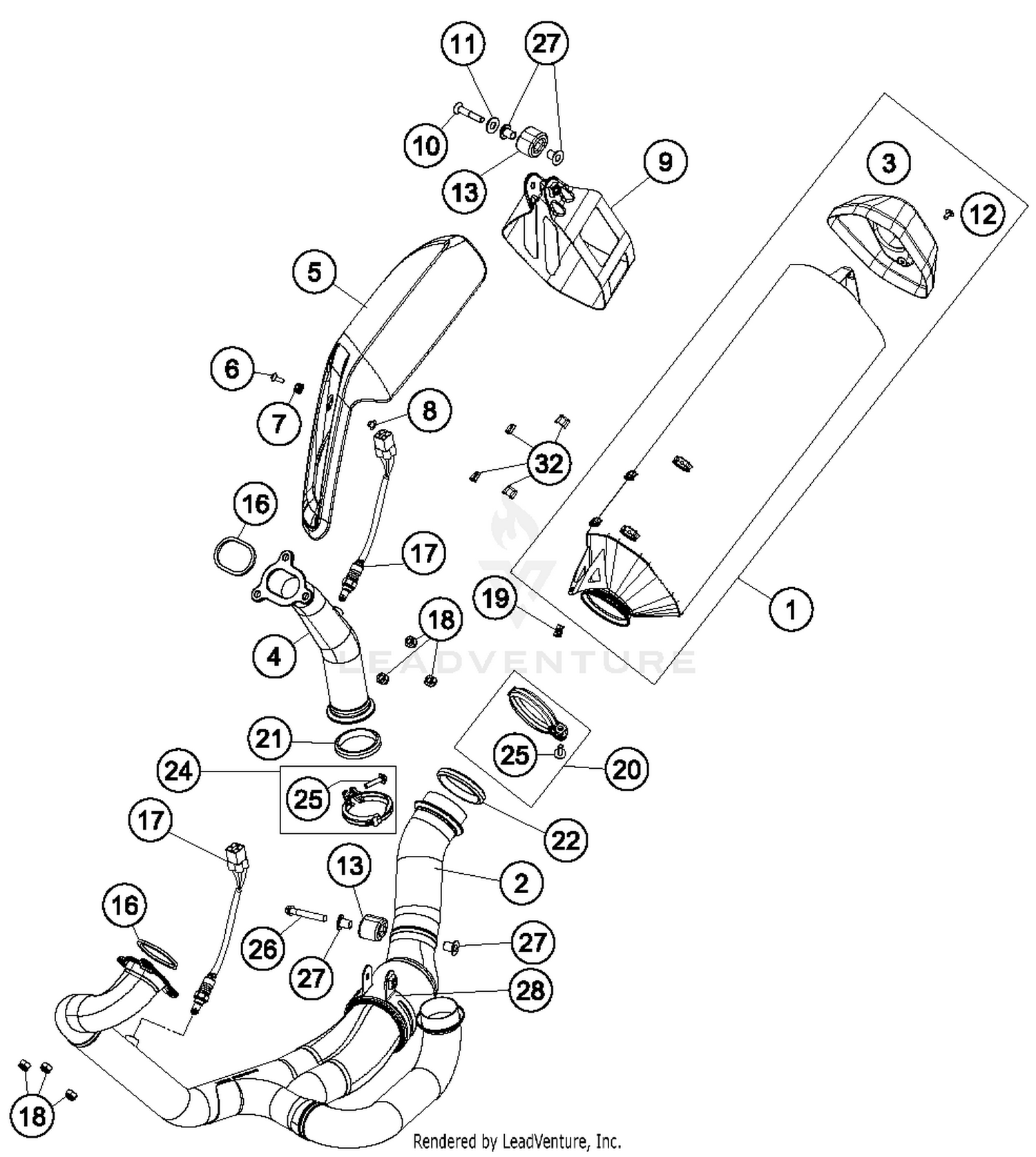

Exhaust System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SILENCER USA
60305183000
|
$1,335.50 | ||
|
Available to order. Add to View Price |
|||
|
#2
Mainfolt front
60705007000
Superseded by 60705007100
|
$2,065.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
ENDCAP
60305083161
|
$145.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
Header rear complete
60305008100
|
$347.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
HEAT PROTECTION BLACK
6040511100033
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW M5X14 TORX 25 07
58605083014
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SILICON SLEEVE
60305083081
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER BUSHING
60305083082
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP SILENCER
60305083190
|
$83.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
countersunk screw M8x45 TX45
0019080456
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
conical seat Alu
60405069000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCREW TORX M5X10
78105081010
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
DAMPING RUBBER
61305068000
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
EXHAUST PIPE FLANGE GASKET
69005005100
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
LAMBDA SENSOR
75041090200
|
$385.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
self-locking nut M8 Cu
51010086100
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
clip nut M5
69008021080
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
EXHAUST CLAMP CPL. 60MM
61305090000
|
$30.68 | ||
|
Available to order. Add to View Price |
|||
|
#21
MANIFOLD GASKET
69005005005
|
$19.79 | ||
|
Available to order. Add to View Price |
|||
|
#22
Manifold gasket 60mm
61305005005
Superseded by 61305105005
|
$12.97 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP CPL.
69005050000
|
$28.92 | ||
|
Available to order. Add to View Price |
|||
|
#25
HH COLLAR SCREW M6X25 TX30
0024060256
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HH collar screw M8x45 TX40
0025080456
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Bushing
60305069000
Superseded by 60305069100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHELL EXHAUST PIPE CPL.
60305007015
|
$39.70 | ||
|
Available to order. Add to View Price |
|||
|
#32
DAMP. COMPON. SILICONE GREY 05
61005091000
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
