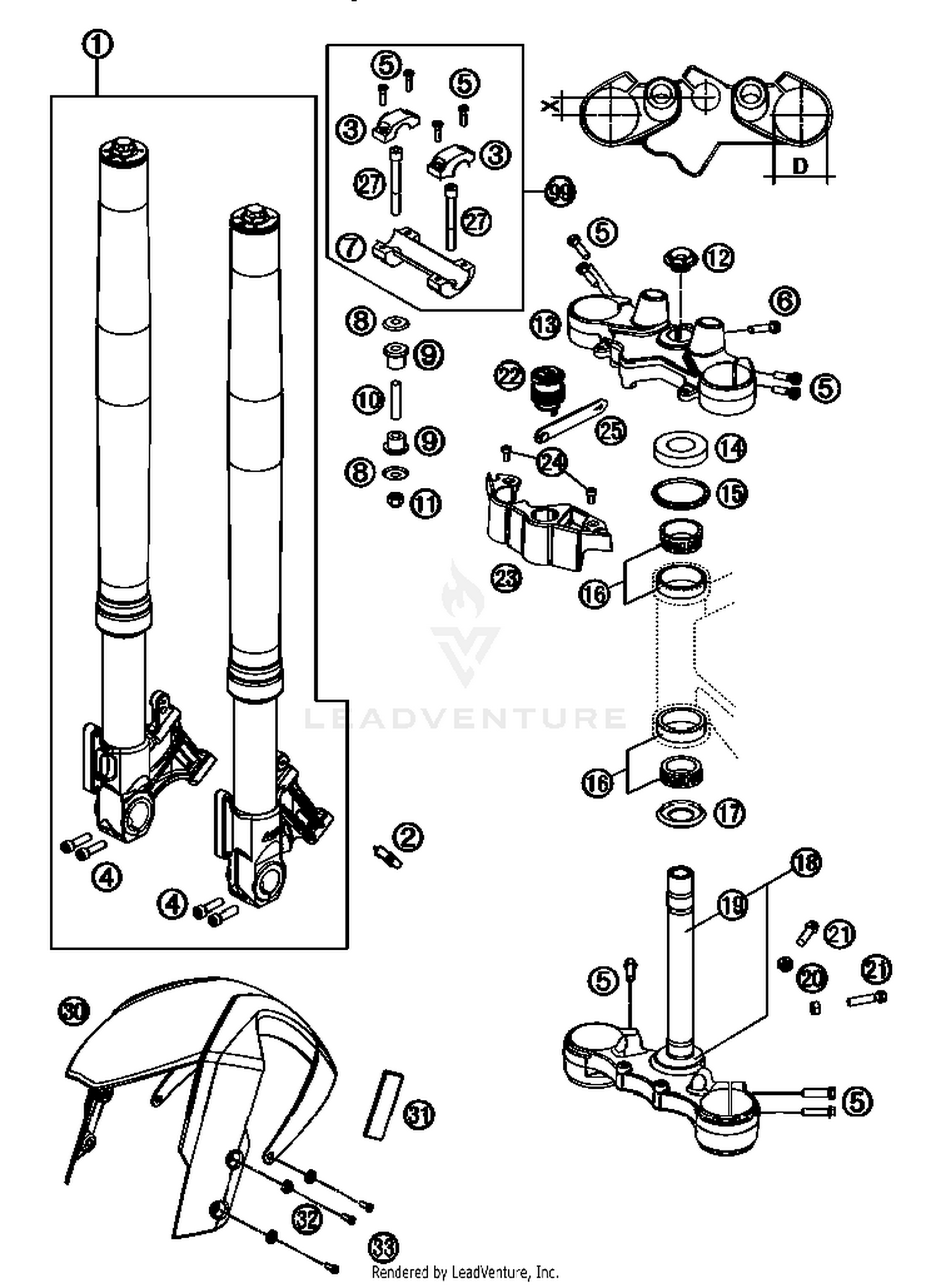

Front Fork, Triple Clamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK KTM 990 SM-T
14187K4301
|
|||
|
Unavailable |
|||
|
#2
CABLE SUPPORT
62142025050
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#3
HANDLEBAR CLAMP 28MM 07
5900103830001S
|
$32.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
AH SCREW DIN0912-M 8X30
0912080303
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHCS M8x30 TX45
0035080306
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
AH-COLLAR SCREW M8X35 ISA45
0035080356
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Handlebar mount 28ámm 07
5900103920001S
Superseded by 5900103930001
|
$173.24 | ||
|
Unavailable |
|||
|
#8
washer 10.5x32x2
56401042000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
rubber bushing
56401040000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SPACER TUBE 10,2X12X44
56401041100
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
SELF LOCK.NUT DIN0982-M10 HIGH
0982100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
STEER.HEAD SCREW M20x1,5 SW=27
54801036200
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
TOP TRIPLE CLAMP
6250103402633S
|
$257.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
STEERING HEAD COVER 05
61001086000
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
STEARING HEAD GASKET TOP
54601184000
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
TAPERED ROLLER BEARING CPL. 06
54201081100
|
$60.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING SUPPORT W. SEALING LIP
54601084100
Superseded by 77701084000
|
$22.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOTTOM TRIPLE CLAMP CPL.
6250103202633S
|
$375.57 | ||
|
Available to order. Add to View Price |
|||
|
#19
FORK TUBE LC8 ADV 03
60001033000
|
$76.66 | ||
|
Available to order. Add to View Price |
|||
|
#20
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HH SCREW DIN0933-M 8X30
0933080303
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SOCKET
60111042100
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
CABLE SUPPORT
62001070100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SHCS ISO 14580 M6x12
014580060126
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RUBBER CABLE TIE 75MM 03
60011093075
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
AH SCREW DIN6912-M10X70
0984100703
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#30
FRONT FENDER BLACK 07
6110801000030
|
$230.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
REFLECTOR YELLOW ''CEV''
58412080100
Superseded by 58412080300
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPECIAL WASHER
61108045000
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SHCS ISO 14580 M6x16
014580060166
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
HANDLEBAR SUPPORT KIT
00050000922
|
$148.49 | ||
|
Available to order. Add to View Price |
|||
