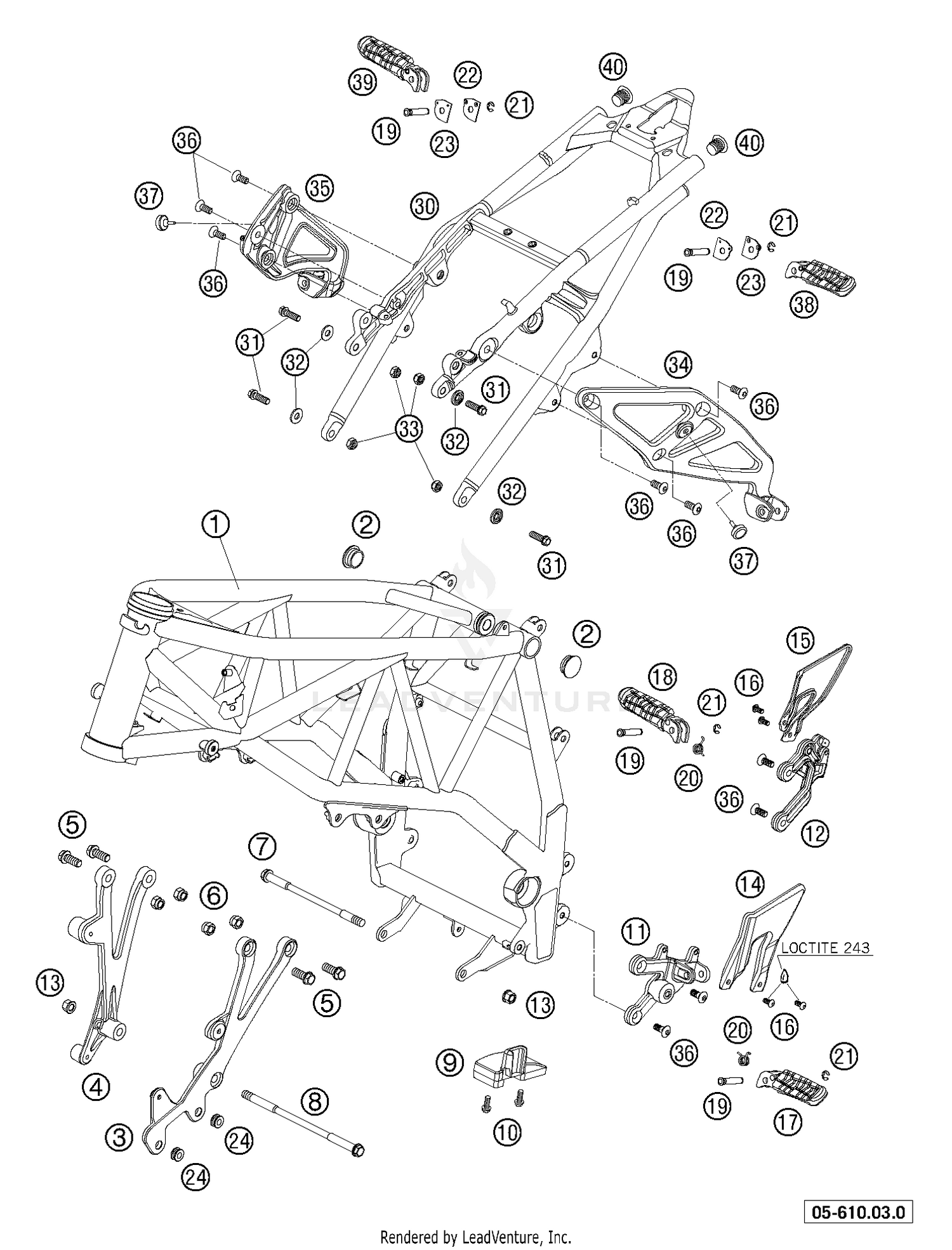

Frame, Sub Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME 990 DUKE 05
61003001000/30
|
|||
|
Unavailable |
|||
|
#2
PLUG SFL28 05
61003088000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ENGINE SUPPORT LEFT 05
61003005000
|
|||
|
Unavailable |
|||
|
#4
ENGINE SUPPORT RIGHT 05
61003006000
|
|||
|
Unavailable |
|||
|
#5
HH COLLAR SCREW M10X24 WS=13
0015100243
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ENGINE BRAC. SCREW M10X172 03
60003013000
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
ENGINE BRAC. SCREW M10X206 03
60003014000
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
CHAIN SLIDING BLOCK 05
60004076100
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW F. PLASTIC K60X20AL SW6
0017060204
Superseded by 0017060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
FOOTREST BRACKET FRONT L/S 05
61003038000
|
|||
|
Unavailable |
|||
|
#12
FOOTREST BRACKET FRONT R/S 05
61003039000
|
|||
|
Unavailable |
|||
|
#13
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
COVER PLATE L/S 05
61034032000
|
|||
|
Unavailable |
|||
|
#15
COVER PLATE R/S 05
61013032000
|
|||
|
Unavailable |
|||
|
#16
COU.SUNK SCR. AH ISO7380 M6X10
0738060101
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FOOTREST FRONT L/S CPL. 05
61003050000
|
$59.06 | ||
|
Available to order. Add to View Price |
|||
|
#18
FOOTREST FRONT R/S CPL. 05
61003051000
|
$57.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT FOR FOOTREST REAR 03
60003044000
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING FOOTREST FRONT 05
61003042000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
retaining washer DIN 6799 - 6
0799060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
ENGAGE PANEL FOOTREST L/S 03
60003152000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
ENGAGE PANEL FOOTREST R/S 03
60003052000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SUB FRAME ALUMINIUM 05
61003002000
|
|||
|
Unavailable |
|||
|
#31
HH collar screw M8x30
0015080303
Superseded by 0025080306
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
STEPPED WASHER 8,5X20X3,5 05
61003002058
|
$6.48 | ||
|
Available to order. Add to View Price |
|||
|
#33
STOP NUT DIN6926 M8 SS
0926080003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
FOOTREST BRACKET REAR L/S 05
61003048000
|
|||
|
Unavailable |
|||
|
#35
FOOTREST BRACKET REAR R/S 05
61003049000
|
|||
|
Unavailable |
|||
|
#36
FLAT HEAD SCREW M. ISA45 M8X20
54610052000
Superseded by 0019080206S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
DISTANCE RUBBER AIRBOX 03
60006001021
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
FOOTREST CPL. L/S REAR 03
60003050000
|
$72.26 | ||
|
Available to order. Add to View Price |
|||
|
#39
FOOTREST CPL. R/S REAR 03
60003051000
|
$72.81 | ||
|
Available to order. Add to View Price |
|||
|
#40
PLUG SFL 22X1,8-3,5
61003089000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
