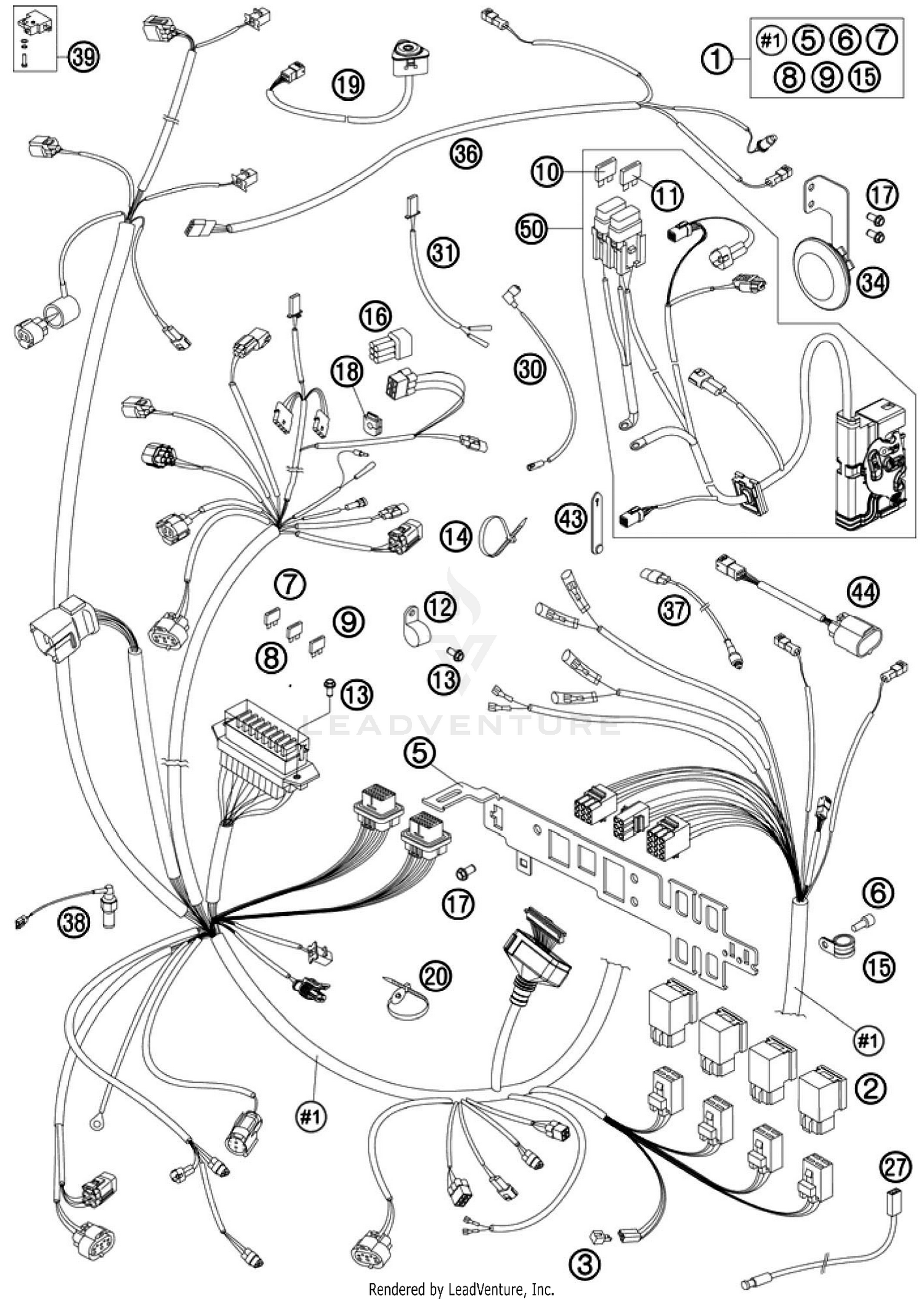

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRING HARNESS 09
60111075333
|
$1,230.23 | ||
|
Available to order. Add to View Price |
|||
|
#2
RELAY CM1A-R-12V-H80 07
61111057000
|
$19.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIODE S3H-15 97
58411096100
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET FOR PLUGS 06
60111083000
|
$26.34 | ||
|
Available to order. Add to View Price |
|||
|
#6
AH SCREW DIN0912-M 5X12
0912050123
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
FUSE 5 A 2003
58011109105
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE 10 A 2000
58011109110
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE 15 A
58011109115
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE 25 A
58011109125
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE 40 A
58011109140
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PVC CLAMP 17,4MM HEYCO
57013070400
|
|||
|
Unavailable |
|||
|
#13
HH collar screw M5x12 TX30
0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CABLE TIE 140/2,5MM BLACK
44011076100
Superseded by 44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CLAMP RSGU 15/12
49007439000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARE CONNECTOR BH 6-PINS
000700000BH
|
$26.06 | ||
|
Available to order. Add to View Price |
|||
|
#17
HH collar screw M6x10 TX30
0025060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
RUBBER SLEEVE 22X18 MM
60108017015
|
|||
|
Unavailable |
|||
|
#19
HAZARD WARNING BUTTON
60211022000
|
$176.32 | ||
|
Unavailable |
|||
|
#20
CABLE TIE WITH PLUG 03
60011193000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#27
TEMPERATURE SENSOR
61111018000
Superseded by 61111018100
|
$37.17 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL-PRESSURE SWITCH CABLE 03
60011092000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
FLASHER CABLE FRONT 03
60011025000
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#34
DC HORN 12V 06
60011060100
|
$34.75 | ||
|
Available to order. Add to View Price |
|||
|
#36
WIRING HARNESS REAR 06
60111076000
|
$26.72 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLUTCH SWITCH 03
58411049100
|
$63.90 | ||
|
Available to order. Add to View Price |
|||
|
#38
BRAKE LIGHT SWITCH REAR '98
50311051100
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#39
BRAKE LIGHT SW. FRONT CPL. 03
60011050000
|
$53.67 | ||
|
Available to order. Add to View Price |
|||
|
#43
RUBBER CABLE TIE 45MM 03
60011093045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
RUBBER CABLE TIE 60MM 03
60011093060
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
RUBBER CABLE TIE 75MM 03
60011093075
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#44
STARTER INTERLOCK
61111020000
|
$115.16 | ||
|
Available to order. Add to View Price |
|||
|
#50
WIRING HARNESS ABS 06
60111079000
|
$315.80 | ||
|
Available to order. Add to View Price |
|||
