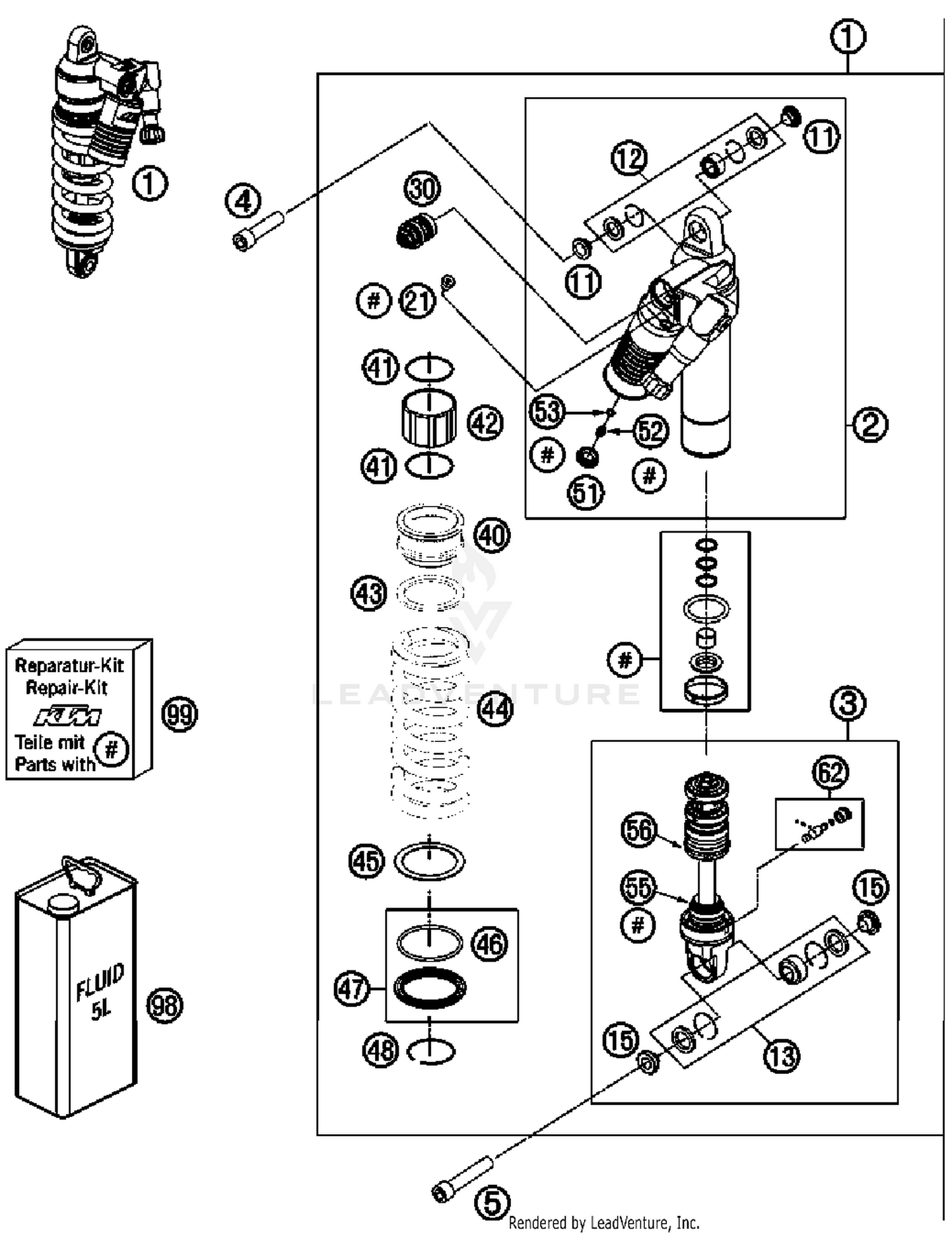

Monoshock Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MONOSHOCK 990 ADVENTURE-R 2011
12187K0901
|
$1,485.54 | ||
|
Available to order. Add to View Price |
|||
|
#2
MONOSHOCK UPPER PART CPL. 07
50180412S2
|
$1,014.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
MONOSHOCK LOWER PART
50180358S5
|
|||
|
Unavailable |
|||
|
#4
SCREW M14X1,5 L=55MM 03
60004016000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW M14X1,5 L=73MM 03
60004017000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
Bearing bush 14x15/18/24,5x10,45
50180366
|
$16.79 | ||
|
Available to order. Add to View Price |
|||
|
#12
Ball joint bearing kit top 12mm
R12012
Superseded by R12012T
|
$42.01 | ||
|
Available to order. Add to View Price |
|||
|
#13
REP.KIT BEAR/SEAL LOWER ADV 07
R12013
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Bearing bush 14x16/21,8/29x14
50180365
|
$17.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
HS cylinder-head screw R1/8 l8
50180095
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
DCC-COMPR.DAMP.CONTROL CPL
50180213S4
|
|||
|
Unavailable |
|||
|
#40
Spring retainer 56,5x78x35
50180465
|
$70.76 | ||
|
Available to order. Add to View Price |
|||
|
#41
CIRCLIP 50X1,5
50180133
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#42
Spring guide 54,15x60x40
50180081
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#43
Intermediate washer spring 61,7x78x1,5
50180114
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPRING 140-225 D=14,25 (62)
91210090S
|
$139.73 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPRING 150-225 D=14,5 (62)
91210092S
|
|||
|
Unavailable |
|||
|
#44
SPRING 130-225 D=14 (62)
91210093S
|
|||
|
Unavailable |
|||
|
#45
INTERM.RING SPRING RET. H=3,5
50180402
|
$66.59 | ||
|
Available to order. Add to View Price |
|||
|
#46
O-ring 66,27x1,78 Viton70
50180352
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#47
SPRING RET. D=80 W. O-RING 05
50180463S
|
$35.19 | ||
|
Available to order. Add to View Price |
|||
|
#48
Round-wire snap ring 58,5x2
50180273
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#51
Rubber cap do not open 22x5,5 NBR
46811208
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
PLUG SCREW M5X6 CPL.
36120151
Superseded by 36120151ST
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#53
O-ring 5,28x1,78 HNBR70 red
46810893
Superseded by S208600003000FB
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#55
Rubber pad 17,2x45,2x40 black
50180276
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#56
COVER D=50
50180487
|
$51.91 | ||
|
Available to order. Add to View Price |
|||
|
#62
ADJUSTING SCREW REBOUND TRAVEL
50180434S
|
$33.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#98
SHOCK ABSORBER FLUID 5 LT
50180751S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
REPAIR-KIT GASKET 5018 PDS 03
R12008
|
$148.99 | ||
|
Available to order. Add to View Price |
|||
