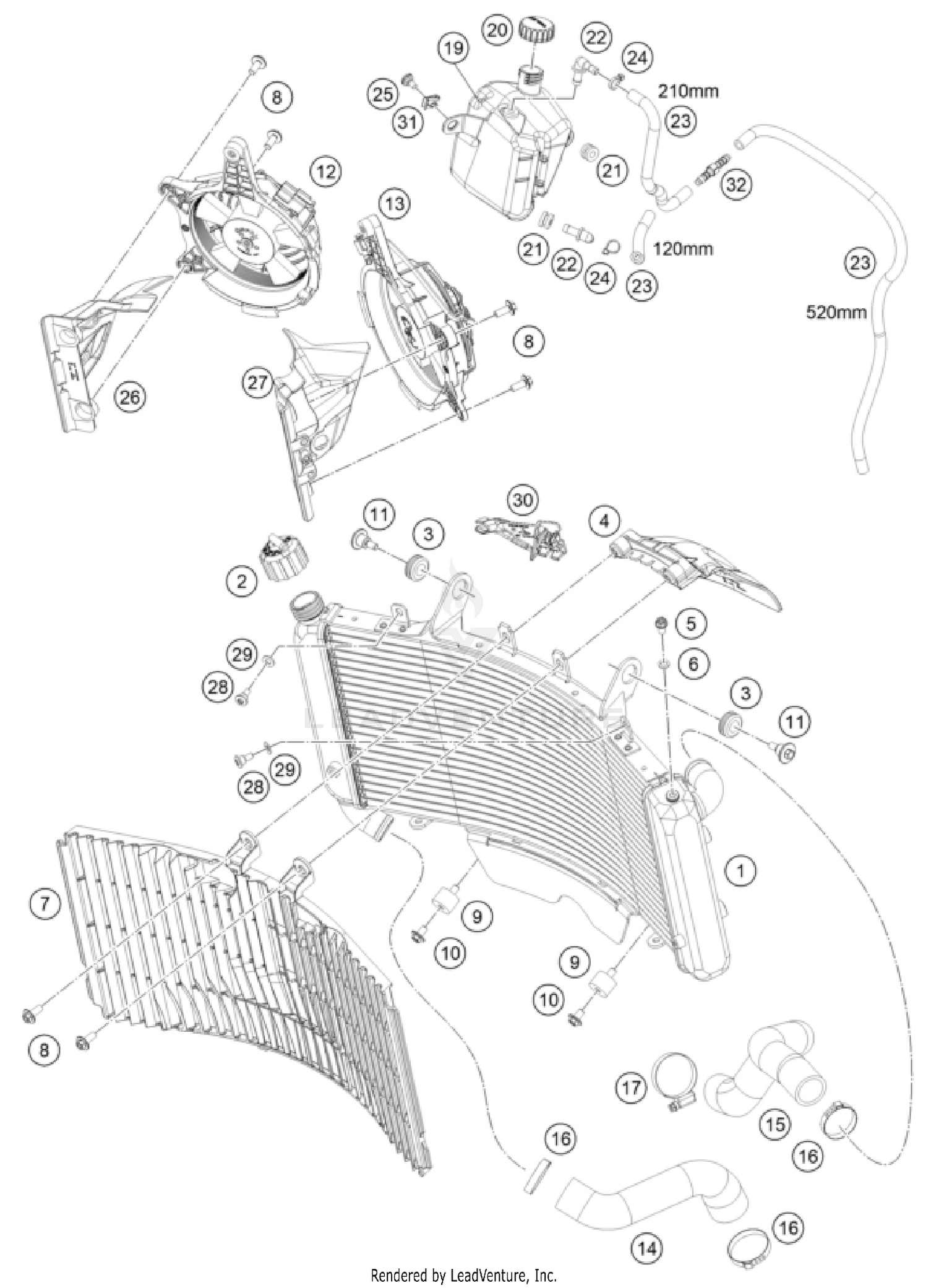

Cooling System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Radiator
A61035010000
|
$507.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
RADIATOR CAP 1,4 BAR
62535009000
|
$29.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER SLEEVE D=12MM
41001052000
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Air deflector, radiator
63635042000
|
$40.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
HH collar screw M6x12 TX30
0025060126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
ALU-GASKET 6X10X1.5
60035048000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Radiator protection
63535040000
|
$26.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
HH collar screw M6x15 TX30
0024060156
|
$3.99 | ||
|
Unavailable |
|||
|
#9
silentbloc 20x15-M6x10-(1)
43205062100
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
HH COLLAR SCREW M6X10 TX30
0024060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPECIAL SCREW M6X21 WS=8
60035001000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Radiator fan right, cmpl.
63535141044
|
$208.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
Fan left cpl.
63535041044
|
$210.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
Pre-formed hose, radiator
63535026000
Superseded by 63535026100
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#15
Pre-formed hose radiator
63535027000
Superseded by 63535027200
|
$14.39 | ||
|
Unavailable |
|||
|
#16
VARIABLE ONE-EAR CLAMP 33,1MM
00050331706
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP 25-40 SGT 4
10001120000
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#19
Reservoir, radiator
A61035065000
|
$72.70 | ||
|
Unavailable |
|||
|
#20
Latch, compens. tank cpl.
60335066044
|
$7.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
RUBBER GROMMET 6X9X13MM 04
60035069000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
ANGLE CONNECTION EXPANS. TANK
60035068000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE 6X10 EPDM 03
60035067001
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
special screw M5x12
69008021160
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
air deflector left
A61008023050
|
$24.30 | ||
|
Available to order. Add to View Price |
|||
|
#27
air deflector right
A61008024050
|
$24.52 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW M5X14 ISA30 ALU
69007125050
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER 6X12X1 HRC 40-45
0988060121
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Bracket overflow hose reservoir
A61035065010
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#31
RANGE CHANGE METAL NUT M5 INOX
54603048600
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE CONNECTION STRAIGHT
69015019010
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
