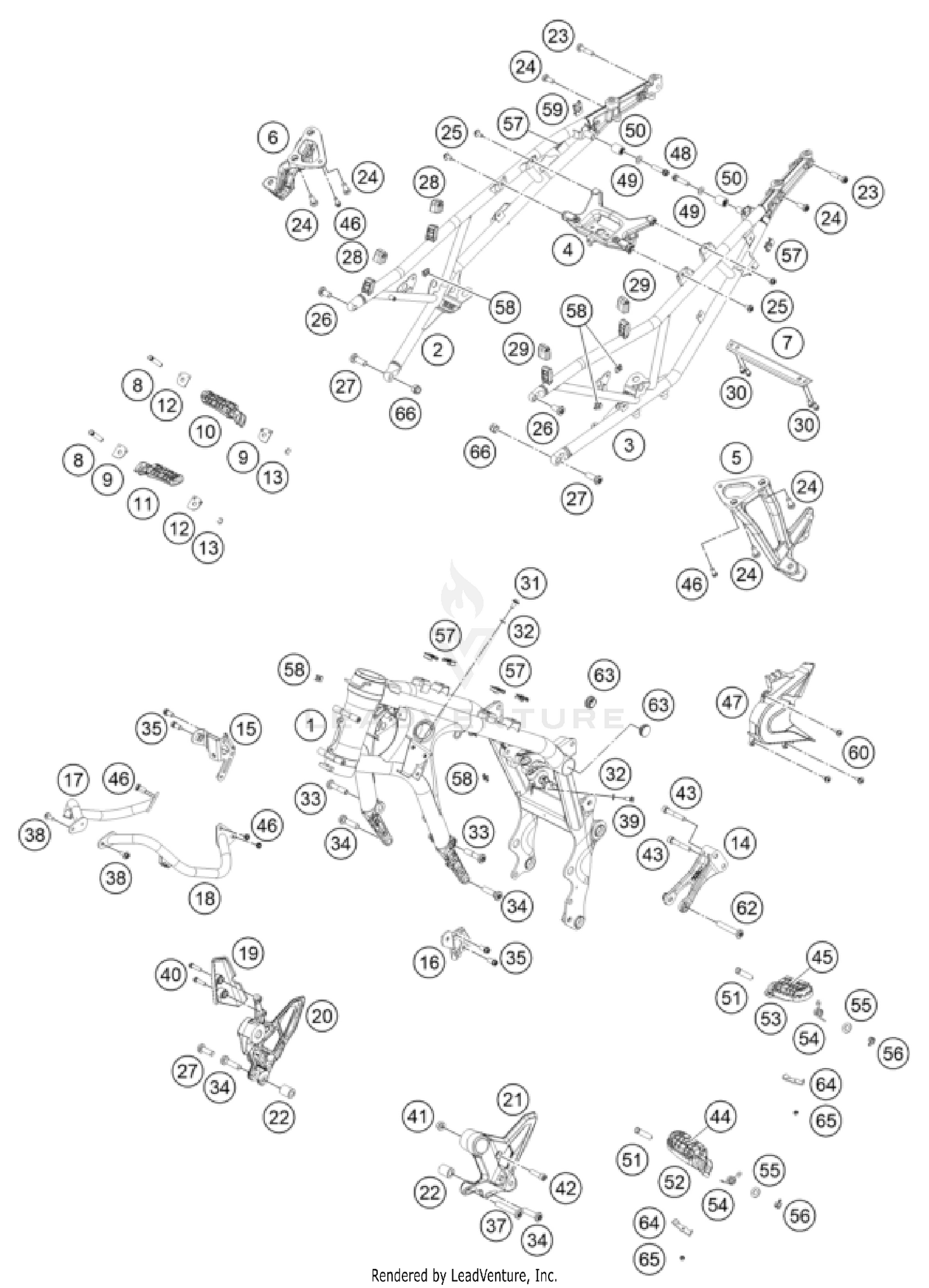

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Frame 635TB
63503101100EB
|
$2,158.41 | ||
|
Available to order. Add to View Price |
|||
|
#2
Subframe right
63703002006EB
Superseded by 63703102006EB
|
$328.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
Subframe left
63703002005EB
|
$641.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
Rear reinforcement
63508019050
|
$44.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
Rear footpeg bracket left
6350304800033
|
$243.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
Rear footpeg bracket left
6350304900033
|
$251.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
Cross member, black
6350300200733
|
$132.43 | ||
|
Available to order. Add to View Price |
|||
|
#8
footrest bolt, rear
60003044100
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
ENGAGE PANEL FOOTREST L/S 03
60003152000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
FOOTREST CPL. R/S REAR 03
60003051000
|
$72.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
FOOTREST CPL. L/S REAR 03
60003050000
|
$72.26 | ||
|
Available to order. Add to View Price |
|||
|
#12
ENGAGE PANEL FOOTREST R/S 03
60003052000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
retaining washer DIN 6799 - 6
0799060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Engine strut black
6410301300033
|
$111.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
Skid plate frame holder, right cmpl.
6350309019033
|
$73.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
Skid plate frame holder, left cmpl.
6350309018033
|
$55.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
Mask support right
6350800600033
Superseded by 63508006033C1A
|
$110.54 | ||
|
Available to order. Add to View Price |
|||
|
#18
Mask support left
6350800500033
Superseded by 63508005033C1A
|
$110.54 | ||
|
Available to order. Add to View Price |
|||
|
#19
Rear master cylinder guard
63503039051
Superseded by A61003039051
|
$21.44 | ||
|
Unavailable |
|||
|
#20
Footpeg bracket front, right, cmpl.
63703039066C1
|
$243.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
Footpeg bracket front, left, cmpl.
63703038066C1
|
$208.22 | ||
|
Available to order. Add to View Price |
|||
|
#22
Bushing 10,4x20x25
08000010025U0
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW M8X35 ISA45 SS
0035080356S
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
SHCS M8x20 TX45
0035080206S
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#25
HH Collar screw M6x13 TX30 SL
0024060136S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SHCS M10x20 TX45 MK
0035100209S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
ISA screw M10x35 ISA45
0035100356S
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#28
Retain. brack., seat cowl pad front left
63503002093
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Rubber seat cowl pad
63503002090
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Hex collar screw M6x12 ISA30 self-lockin
0025060126S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPECIAL SCREW M6X18 ISA30 08
69014017000
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
CONTACT WASHER M6 VSV-K6
58411098100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
ISA screw M10x45 ISA45
0035100456S
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#34
ISA collar screw M10x40 ISA45
0035100409S
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#35
HH collar screw M8x16 TX40 SL
0025080166S
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
AH-COLLAR SCREW M10X60 ISA45
0035100609S
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
HH collar screw M6x15 TX30
0024060156S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
HH COLLAR SCREW M8X16 TX40
0025080166
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
HH collar screw M6x25 TX30
0025060256
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
SELF LOCKING NUT M8 10.9
54310086200
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
screw ISO 14579-M8x30-10.9-MK black
014579080301S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
CYL. SCREW DIN14579 M8X50 SS
014579080506S
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#44
FOOTREST RUBBER FRONT R/S 03
60003041010
|
$26.06 | ||
|
Available to order. Add to View Price |
|||
|
#45
FOOTREST RUBBER FRONT L/S 03
60003040010
|
$26.06 | ||
|
Available to order. Add to View Price |
|||
|
#46
HH collar screw M6x16 TX30 SL
0025060166S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
Front sprocket cover
63503096000
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#48
AH-COLLAR SCREW M8X35 ISA45
0035080356
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
washer DIN 125 A -8.4
0125080003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
RUBBER SEAT-CONTACT SURFACE
60307048000
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#51
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#52
FOOTREST R/S 08
78003041050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#53
FOOTREST L/S 08
78003040050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#54
FOOTREST SPRING L/S & R/S
54603041000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#55
washer DIN 125 A 10.5
0125100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
clip nut M6
54603048100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
RANGE CHANGE METAL NUT M5 INOX
54603048600
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
RANGE CHANGE METAL NUT M8
54603048000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
special screw M5x12
69008021160
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#62
ISA screw, M10x65 ISA45
0035100656S
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#63
Frame locking cap
64103088000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
CLOSING PANEL FRONT L/S R/S 03
60003044010
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#65
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
