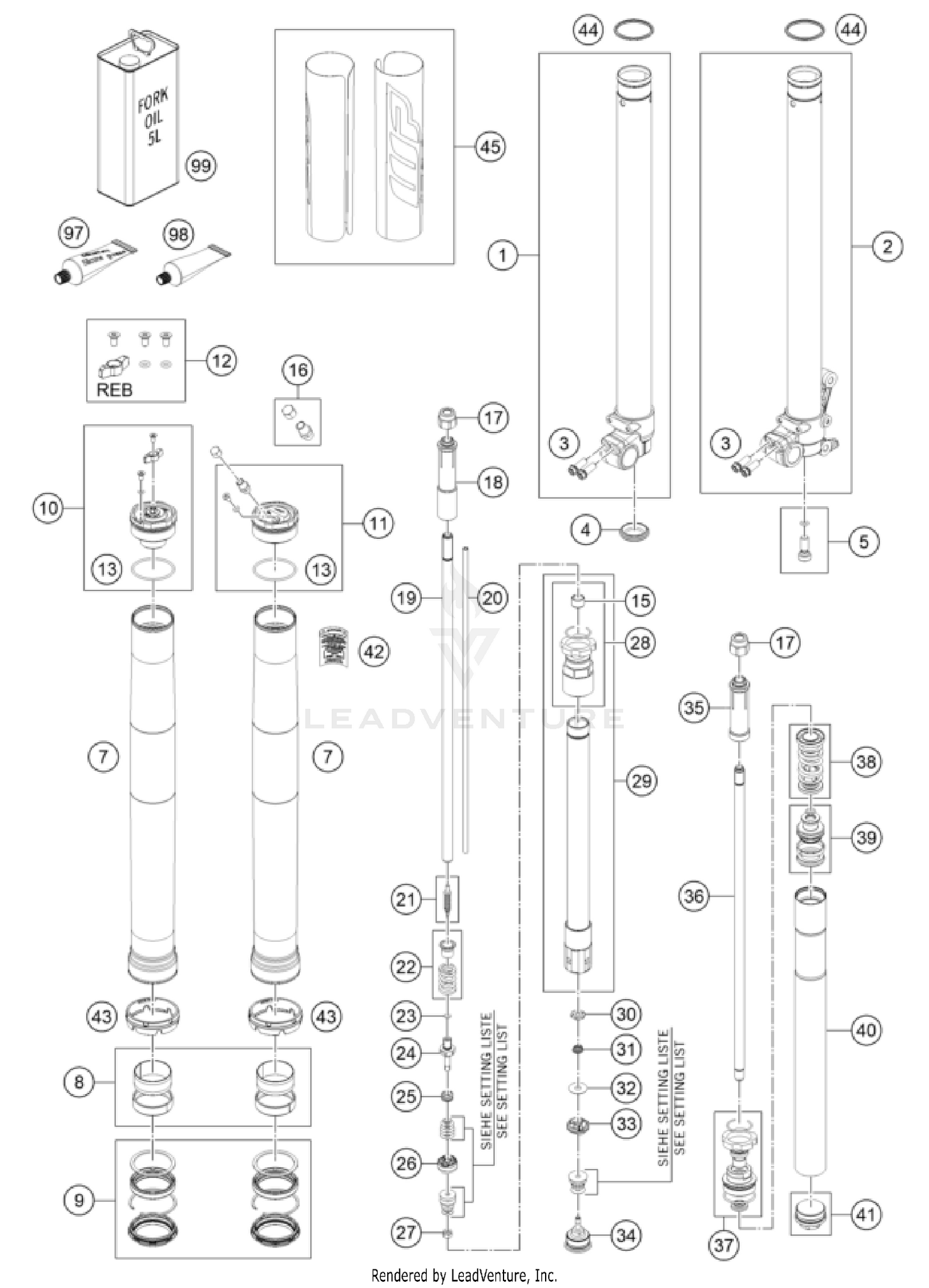

Front Fork Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Axle clamp right + tube 85SX cpl.
43570818S1
|
$670.66 | ||
|
Available to order. Add to View Price |
|||
|
#2
Axle clamp left + tube cpl.
43570968S1
|
$440.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
HH collar screw M8x20
0025080206
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Rubber cap 35x10 NBR80
48600141
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
HS screw M10x23 cpl.
S218700000S0000
|
$20.01 | ||
|
Available to order. Add to View Price |
|||
|
#7
Fork outer tube 44.13x510 dt49 db53
43570982
|
$266.52 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE BUSHING SET
R14042
Superseded by R14042T
|
$40.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
Fork sealing kit 43mm
R513
Superseded by R516T
|
$86.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
Schraubdeckel M46x1,5 kpl.
43570928S
|
$96.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
screw cap M46x1,5 Luft cpl.
43570927S
|
$98.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
Adjuster Kit screw cap
RP10021
Superseded by RP10021T
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-ring 41x2 NBR70 siliconized yellow
43570023
|
$15.94 | ||
|
Available to order. Add to View Price |
|||
|
#15
Guide bushing 12x14x10
48600430
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
Schrader valve M8x1 cmpl.
48601494S
Superseded by 48601494ST
|
$29.39 | ||
|
Available to order. Add to View Price |
|||
|
#17
Lock nut M12x1 h20 WAF22
43570859
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#18
Stop 12,2x25x115
43570856
|
$16.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
Piston rod 12x477,5
48601811
Superseded by S50120000500000
|
$36.62 | ||
|
Unavailable |
|||
|
#20
adjustment tube 6x445,1
43570929
|
$6.48 | ||
|
Available to order. Add to View Price |
|||
|
#21
Needle 4,5x43,6 cpl.
48600277S
|
$10.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Spring (13,9) 37-32 rebound cpl.
48600578S
|
$22.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-ring 6x1,2 NBR70
48600299
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Tap 6x46 rebound
48600576
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
Spring (11,7) 1,5-8 valve
35480377
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#26
Midvalve piston assembly d23
48602002S
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#27
Nut M6x0,5 h6,5 WAF10 rebound
40540486
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#28
Screwsleeve M27x0,8 cpl.
43570936S
|
$53.23 | ||
|
Available to order. Add to View Price |
|||
|
#29
Cartridge tube cpl.
48600870S7
|
$526.34 | ||
|
Available to order. Add to View Price |
|||
|
#30
Nut valve M6x0,5 h6,5 WAF17
48600163
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#31
Spring (8,5) l6,5 valve
48600202
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#32
Shim 8x24x0,40
48600061
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#33
Piston 6x27,3x9 compression cpl.
48601934S
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#34
Compression
48600586S
Superseded by 48600586S3
|
$44.32 | ||
|
Available to order. Add to View Price |
|||
|
#35
Stop 12,2x25x78,5
43570819
|
$25.73 | ||
|
Available to order. Add to View Price |
|||
|
#36
Piston rod 12x470
48601501
Superseded by S50120000000000
|
$40.91 | ||
|
Available to order. Add to View Price |
|||
|
#37
Screw sleeve M35
48601452S2
|
$75.12 | ||
|
Available to order. Add to View Price |
|||
|
#38
Spring (22) 60-30 rebound cpl.
48601820S1
|
$53.89 | ||
|
Available to order. Add to View Price |
|||
|
#39
Piston 3x34x31,5 mainpiston Freude cpl.
43570844S
|
$77.98 | ||
|
Available to order. Add to View Price |
|||
|
#40
Tube incl. mounting 410mm air
48601571S2
|
$270.48 | ||
|
Available to order. Add to View Price |
|||
|
#41
Adapter M10xM35,5x0,8x25 cpl.
43570845S
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
Sticker warning 60x40
52000315
|
$29.47 | ||
|
Available to order. Add to View Price |
|||
|
#43
Fork protection ring 55,1mm
43570915
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#44
Stroke indicator d43 red
43570926
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#45
Sticker XAXT AER OC 161x214
52000229SET
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#97
Fuchs grease IPR (250g)
T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#98
special grease AER Fork 400g
00062010053
|
$99.54 | ||
|
Available to order. Add to View Price |
|||
|
#99
Fork Fluid Viscosity 4.0 5L
48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
