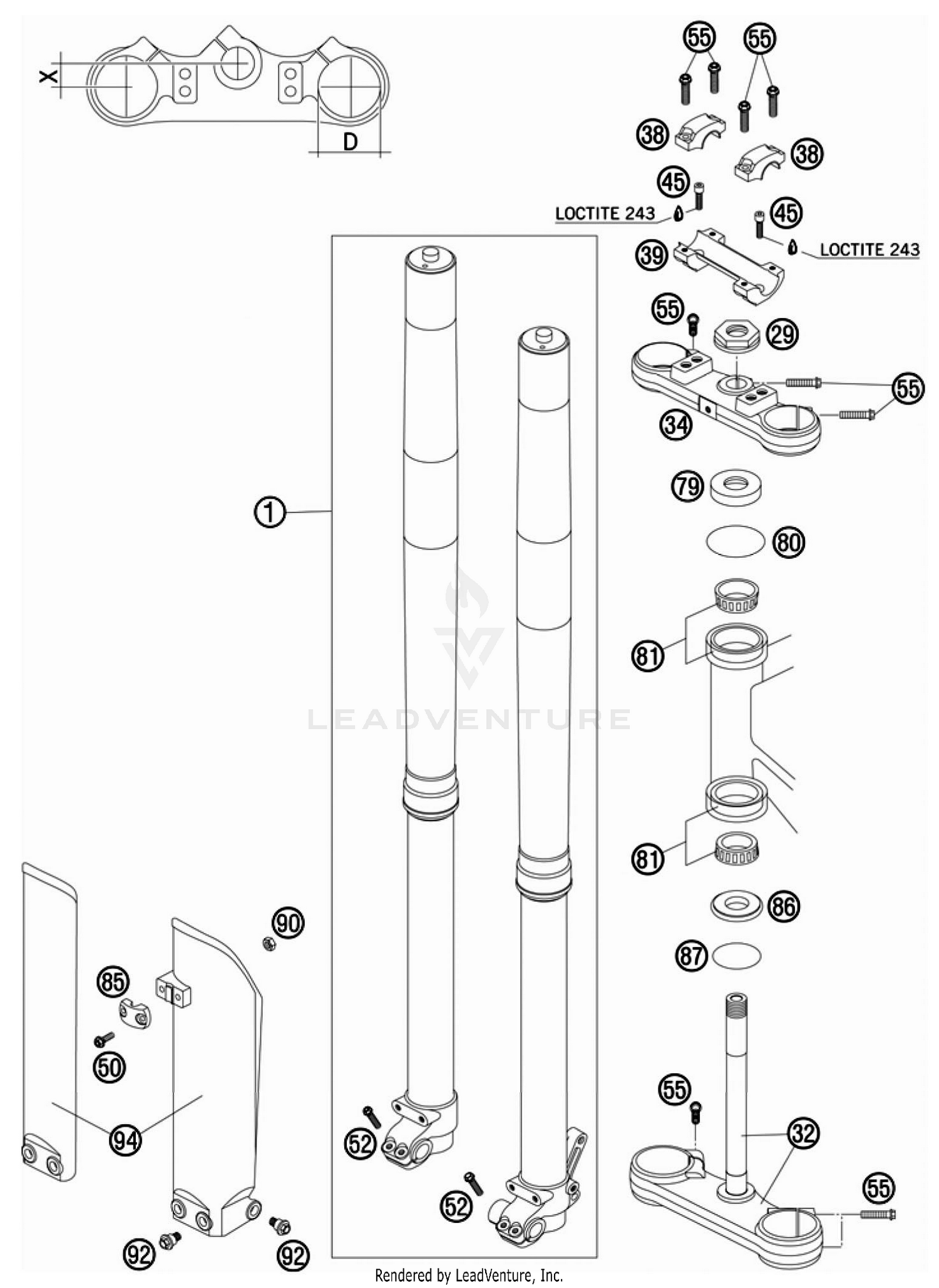

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK 85/105 SX 2009
05187E0501
|
$1,633.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
HH NUT M20X1,5 WS=27 RIGHT
59030029000
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#32
Compl. lower triple clamp
47001032014
Superseded by 47101032214
|
$270.48 | ||
|
Available to order. Add to View Price |
|||
|
#34
TOP TRIPLE CLAMP 85 SX 2003
47001034014
|
$159.69 | ||
|
Available to order. Add to View Price |
|||
|
#38
HANDLEBAR CLAMP D=22MM 2001
50301038000
|
$25.29 | ||
|
Available to order. Add to View Price |
|||
|
#39
HANDLEBAR SUPPORT 22MM 2T 2000
59001039000
|
$63.92 | ||
|
Unavailable |
|||
|
#45
AH-COLLAR SCREW M10X25 ISA45
0912100250
Superseded by 0032100256S
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
HH collar screw M5x16 TX30
0025050166
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
HH collar screw M8x30
0025080306
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#79
COVERING CAP
49001086000
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#80
O-RING 40,94X2,62 NBR70
0770021300
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#81
TAPERED ROLLER BEARING 32004X
49001081000
|
$49.60 | ||
|
Available to order. Add to View Price |
|||
|
#85
BREAK HOSE CLIP ORANGE
54601085000X4
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#86
PROTECTION RING 20,1X39X5
46001086000
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#87
O-RING 36,00X3,00 NBR
0770360030
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#90
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#92
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#94
FORK PROTECTOR L/S+R/S 85SX 06
47001094000X4
|
$26.61 | ||
|
Available to order. Add to View Price |
|||
