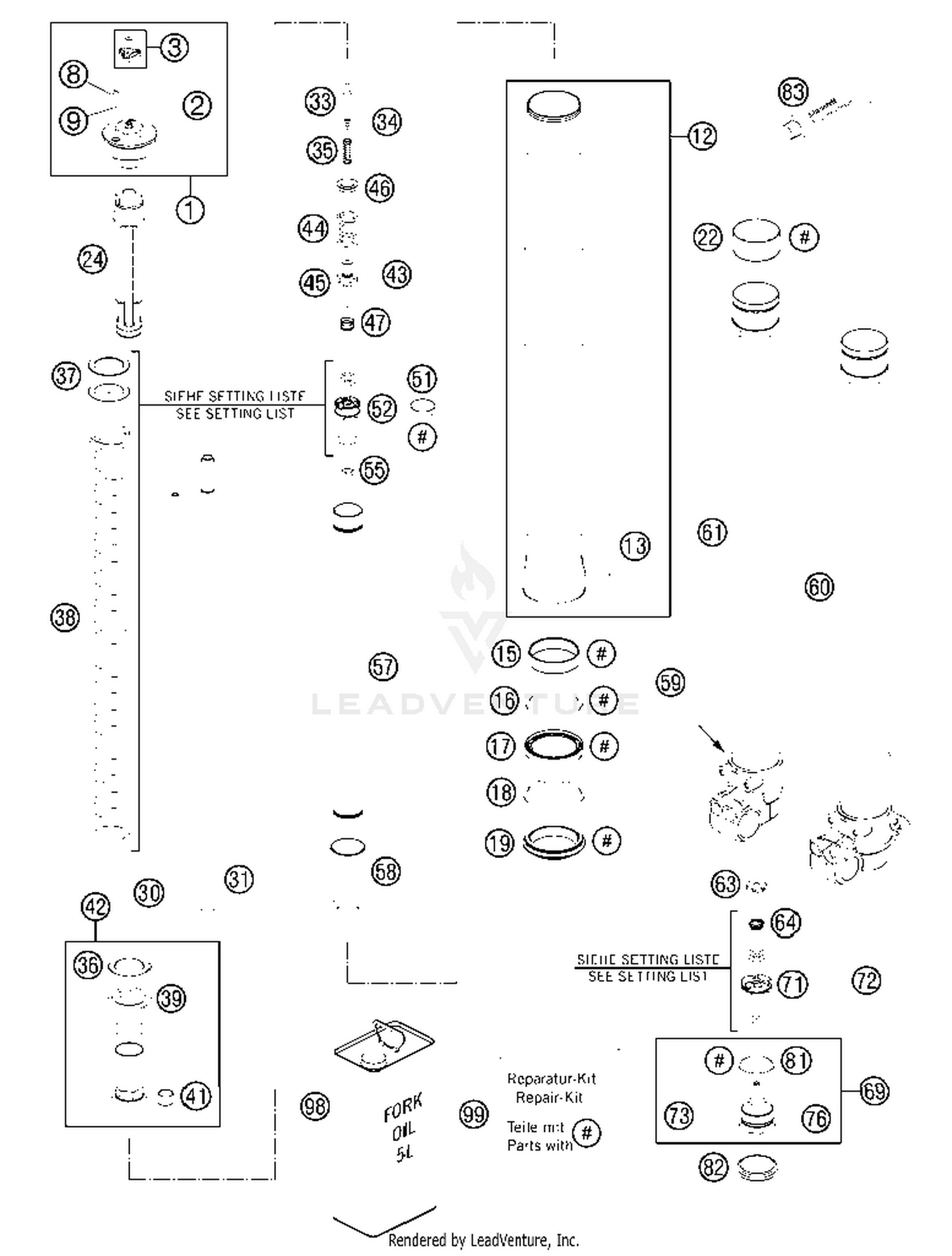

Front Fork Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw cap M46x1,5 cpl.
43570395S1
|
$423.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-ring 40x2 NBR70 black
46811042
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
ADJUSTING KNOB + SCREW
48600812S
Superseded by 48600812ST
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Cross countersunk head screw M4x8
48600481
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
O-ring 3x1,5 NBR70
48600046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Fork outer tube 44,14x510 dt49 db53 natu
43570614E
|
$286.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
Round-wire snap ring 53x2
43570099
|
$31.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
Guide bushing 42x44x20
43570618
|
$13.74 | ||
|
Available to order. Add to View Price |
|||
|
#16
Supportwasher 45x52,5x1,5
43570092
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
Shaft seal SKF 43x52,9x11,4 black
43570201
Superseded by 43570623
|
$19.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Snap ring SB53x1,5 acc drawing
43570008
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
Dirt scarper SKF 43mm black
43570202
Superseded by 43570624
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#22
Guide bushing 42x44x20
43570617
|
$13.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Stop 12,4x28,6x135 cpl.
43570396S
|
$53.89 | ||
|
Available to order. Add to View Price |
|||
|
#30
Adjustment tube 6x442
48600695
|
$23.09 | ||
|
Available to order. Add to View Price |
|||
|
#31
Piston rod 12x476
48600694
|
$199.07 | ||
|
Available to order. Add to View Price |
|||
|
#33
Needle 4,5x43,6
48600277
|
$6.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
O-ring 2x1,5 NBR70
48600298
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
Spring (5,4) 4-23 rebound
48600444
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#36
Preload bush 26,5x38x2,5
43570133
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#37
Preload bush 26,5x38x2,5
43570133
|
$3.62 | ||
|
Unavailable |
|||
|
#37
Preload bush 26x35x4
43570134
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#37
Preload bush 26x38x10
43570135
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#37
Preload bush 26,5x38x1,5
43570136
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 3,2 N/MM SET D=4,2MM
95010031S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 3,4 N/MM SET D=4,4MM
95010032S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 3,6 N/MM SET
95010033S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Spring retainer 33,5x38,2x3
43570131
|
$21.22 | ||
|
Available to order. Add to View Price |
|||
|
#41
Guide bushing 12x14x10
48600430
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW SLEEVE M27X0,8 CPL.
48600830S2
|
$42.56 | ||
|
Available to order. Add to View Price |
|||
|
#43
O-ring 6x1,2 NBR70
48600299
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
Spring (13,9) 17-32 rebound cpl.
48600511
Superseded by 48600511S
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#45
TAP REBOUND 07
48600513
|
$18.80 | ||
|
Available to order. Add to View Price |
|||
|
#46
Spring retainer 12,3x19x1,25 rebound
48600525
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
Spring (11,4) 0,4-8 valve
48600382
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
Piston ring 21x23x5
48600455
Superseded by 48601625
|
$5.29 | ||
|
Unavailable |
|||
|
#52
Piston 6,07x22,7x13
48600575
|
$17.37 | ||
|
Available to order. Add to View Price |
|||
|
#55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#57
Tube 23x330
48600870
|
$86.01 | ||
|
Available to order. Add to View Price |
|||
|
#58
Adapter 23x28x70
48600764
|
$26.28 | ||
|
Available to order. Add to View Price |
|||
|
#59
O-ring 41x2 NBR70 siliconized yellow
43570023
|
$15.94 | ||
|
Available to order. Add to View Price |
|||
|
#60
AXLE CLAMP L/S + TUBE CPL.
43570559S1
|
$462.65 | ||
|
Available to order. Add to View Price |
|||
|
#61
AXLE CLAMP R/S + TUBE CPL.
43570558S1
|
$729.84 | ||
|
Available to order. Add to View Price |
|||
|
#63
Nut valve M6x0,5 h6,5 WAF17
48600885
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#64
Spring (8,5) l6,5 valve
48600202
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#69
Compression
48600586S
Superseded by 48600586S3
|
$44.32 | ||
|
Available to order. Add to View Price |
|||
|
#71
Piston 6x27,8x9 compression
48600047
|
$11.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#72
O-ring 21x2 NBR70
46811499
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#73
O-ring 24x2 NBR70
35480320
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#76
O-ring 8x2 NBR70
48600049
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#81
Copper disc 29,5x33,5x1
48600004
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#82
Rubber cap 35x10 NBR80
48600141
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#83
Fuchs grease IPR (250g)
T511
Superseded by T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#98
Fork Fluid Viscosity 4.0 5L
48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
Repair kit
R511
Superseded by R511T
|
$162.90 | ||
|
Available to order. Add to View Price |
|||
