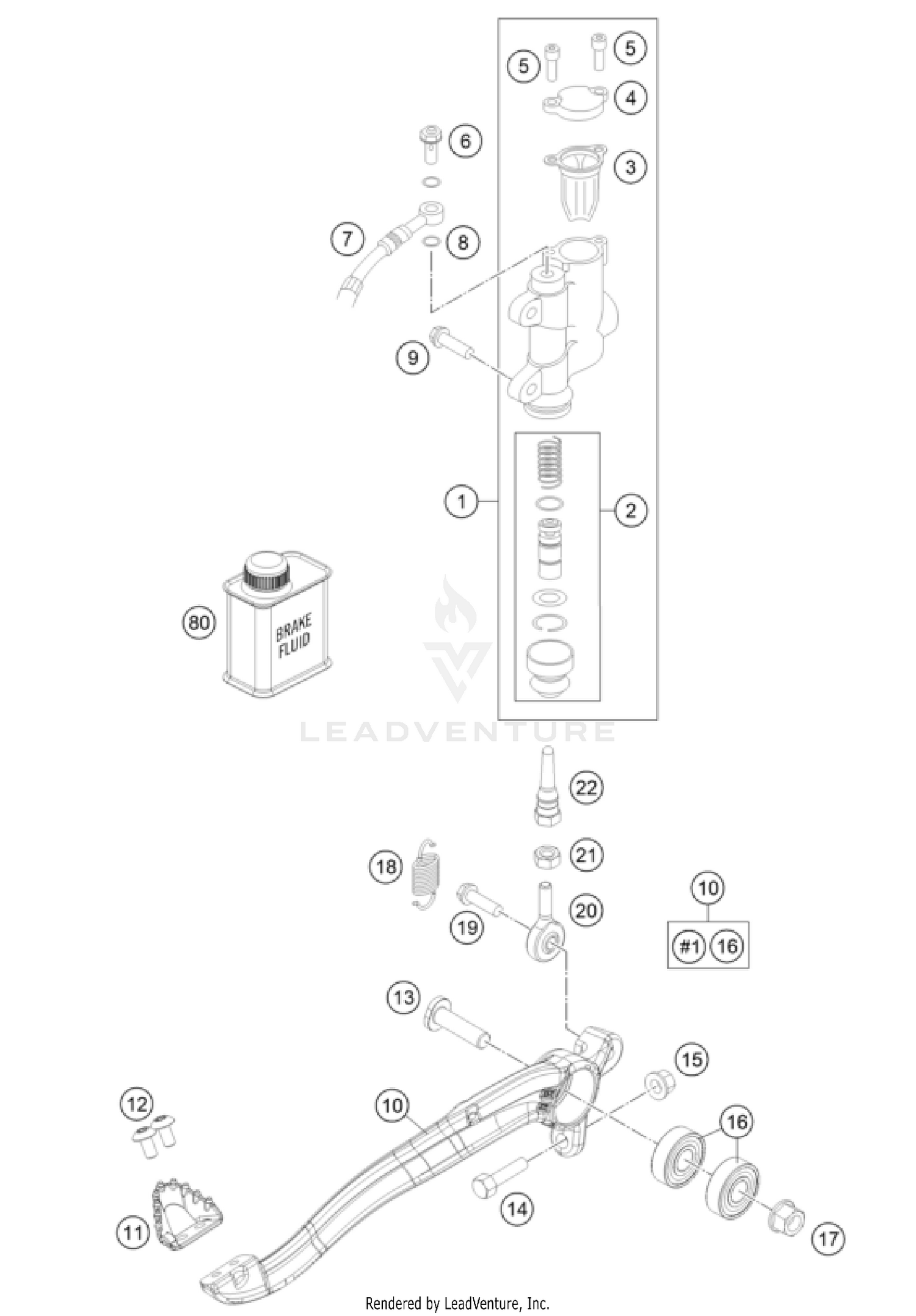

Rear Brake Control Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Complete master cylinder
47213060044
|
$233.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
REP. SET PISTON REAR D=12 2004
47013061100
|
$88.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET CYLINDER COVER REAR 03
47013063000
|
$12.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CYLINDER COVER REAR 85 SX 03
47013062000
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
AH.SCREW DIN0912-M 4X10
0912040103
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
HOLLOW SCREW BRAKE CYLINDER 03
47013025000
|
$12.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Rear brake hose 85 SX 21
47213070000
|
$125.94 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING 8,00X1,00 FORMULA
0770080019
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
HH collar screw M6x16 TX30
0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Foot brake lever kpl.
47213050044
|
$100.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
STEP PLATE FOOT BRAKE LEVER
55413051000
|
$32.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW TORX M5X10 05
58605083010
|
$2.99 | ||
|
Unavailable |
|||
|
#13
Screw foot brake lever
47213054000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPECIAL SCREW M8X26 WS=10
59001037000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
flanged nut M8 WS10
46030045000
|
$9.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
deep groove ball bearing SKF 6000-2RS1
0625060002
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
RETURN SPRING F. BRAKE LEVER
79003062000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HH collar screw M6x20 TX30
0025060206S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Joint head CMP6
54813055100
|
$23.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
hex nut DIN 934 M6
0934060003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PRESSURE ROD 85 SX 06
47013056100
|
$15.39 | ||
|
Available to order. Add to View Price |
|||
|
#80
BRAKE FLUID DOT5.1 0,25L
00062030000
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
