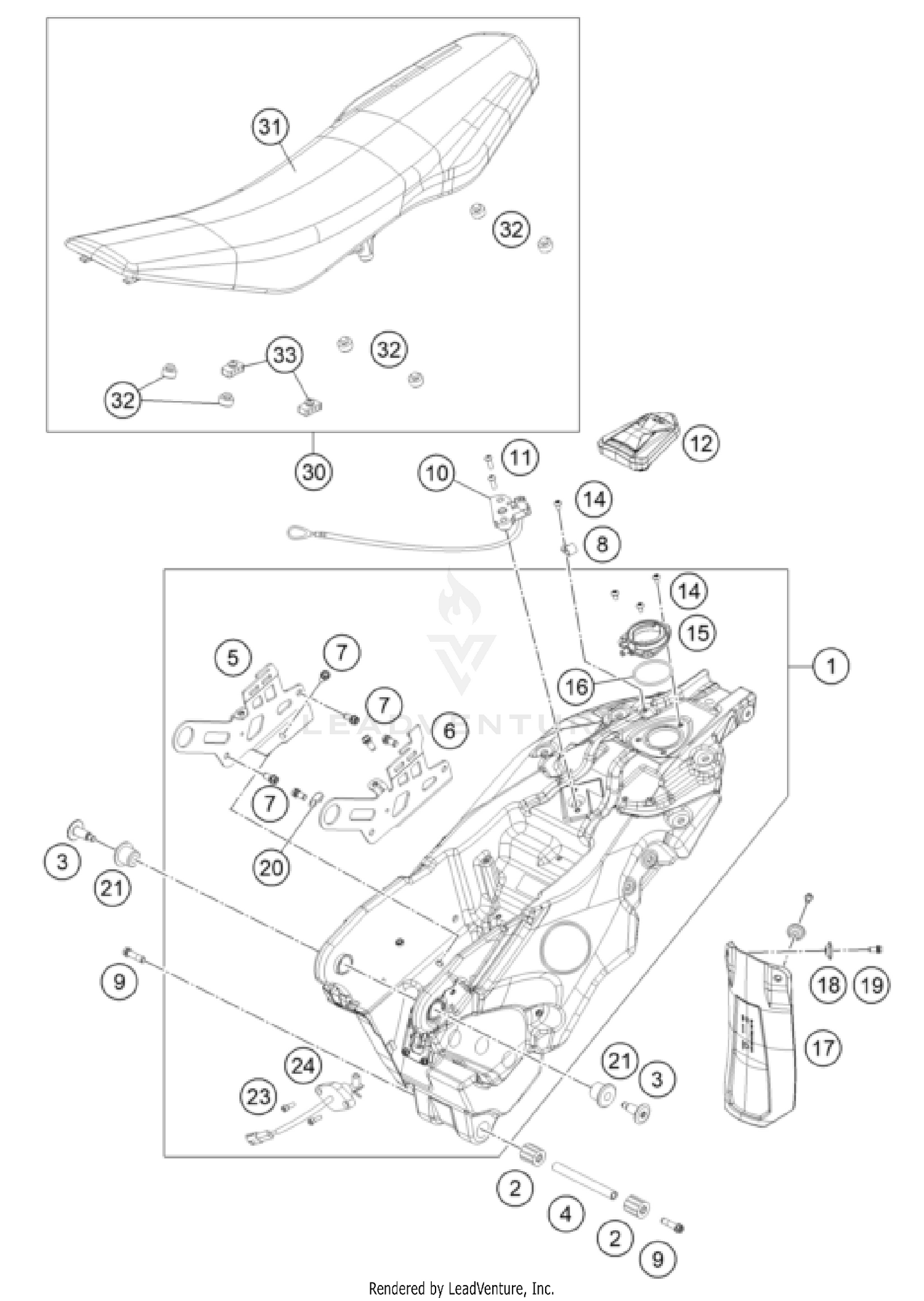

Tank, Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Fuel tank cpl.
76907013044
|
$2,181.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER BUSHING 11,7X24,7 L=26
76507065100
|
$18.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
Attachement bolt top
76507060100
Superseded by 76507060200
|
$58.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bearing sleeve, bottom
76507061100
|
$23.97 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIGHT FUEL-TANK SUPPORT PLATE
27007028000
|
$54.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
Retaining bracket tank left
27007027100
|
$50.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
HH COLLAR SCREW M8X16 TX40
0025080166
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PVC-CLAMP 7/16'' HEYCO 3377
57013070000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HH COLLAR SCREW M8X30 TX40
0025080306S
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SEAT LOCK
76507050000
|
$49.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
BHCS ISO 7380 M6X18
0738060181
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Fuel tank cap
76907008000
|
$307.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW TORX M5X10 05
58605083010
|
$2.99 | ||
|
Unavailable |
|||
|
#15
CLOSING FLANGE
76507108050
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING 50,00X3,00 VITON
0770050030
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPLASH PROTECTOR
76506010100
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
BUCKET
72210079000
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HH collar screw M6x10 TX30
0025060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CLAMP FOR SEAT LOCK LINKAGE
27007053000
|
$15.28 | ||
|
Available to order. Add to View Price |
|||
|
#21
RUBB.BEAR.BOX 12x24x35 L=24,5
76507066000
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
AH SCREW DIN0912-M 5X16
0912050163
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GAS-LEVEL SENSOR ADV. 2006
58207080100
|
$94.48 | ||
|
Available to order. Add to View Price |
|||
|
#30
Seat cmpl.
76907040000EBA
|
$288.74 | ||
|
Unavailable |
|||
|
#31
Seat cover
76907040050EBA
|
$128.80 | ||
|
Available to order. Add to View Price |
|||
|
#32
Seat rubber
76907040045
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
rubber support
28503002010
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
